AC charging stations
A pioneer for all situations
Up to 2 x 22 kW of charging power (AC)

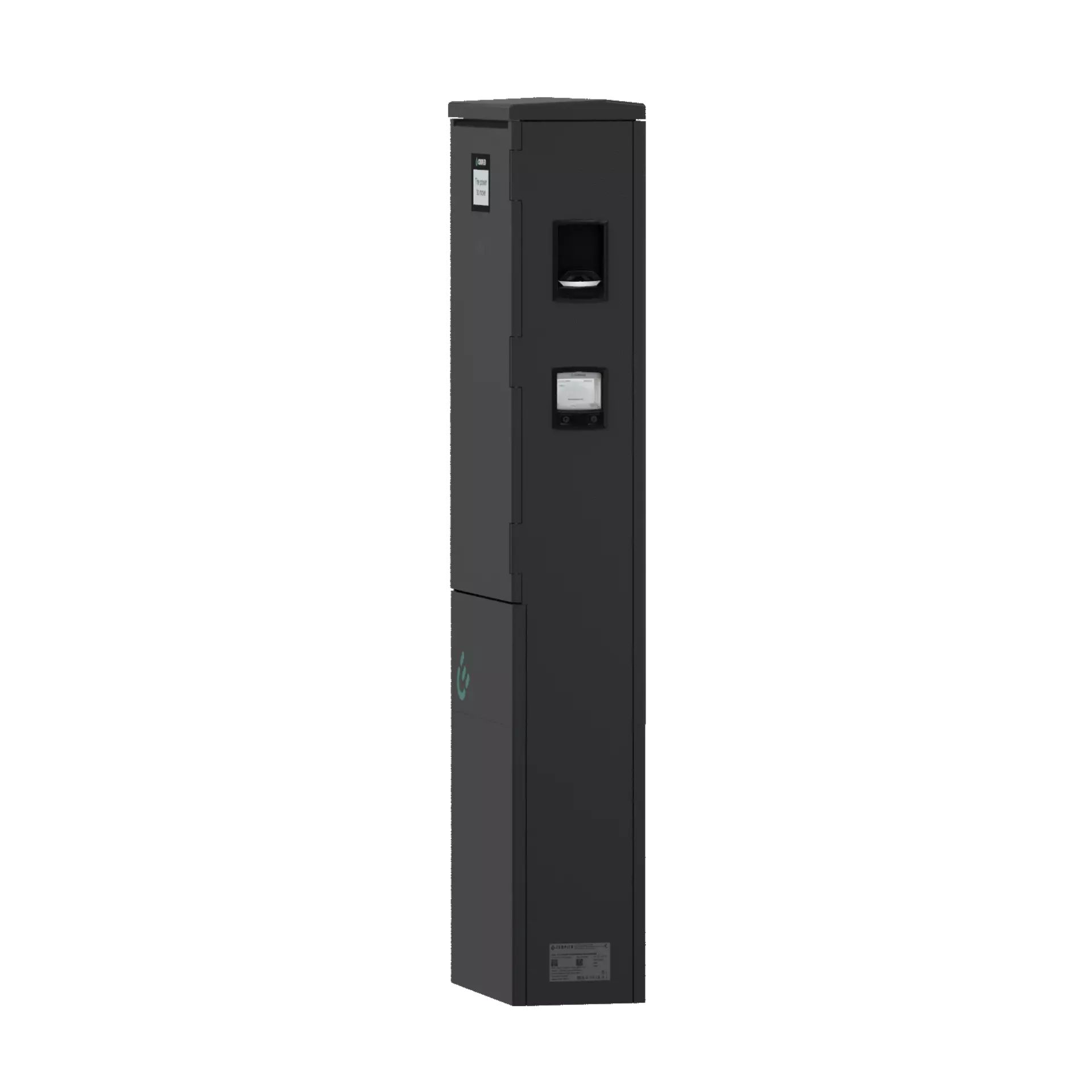

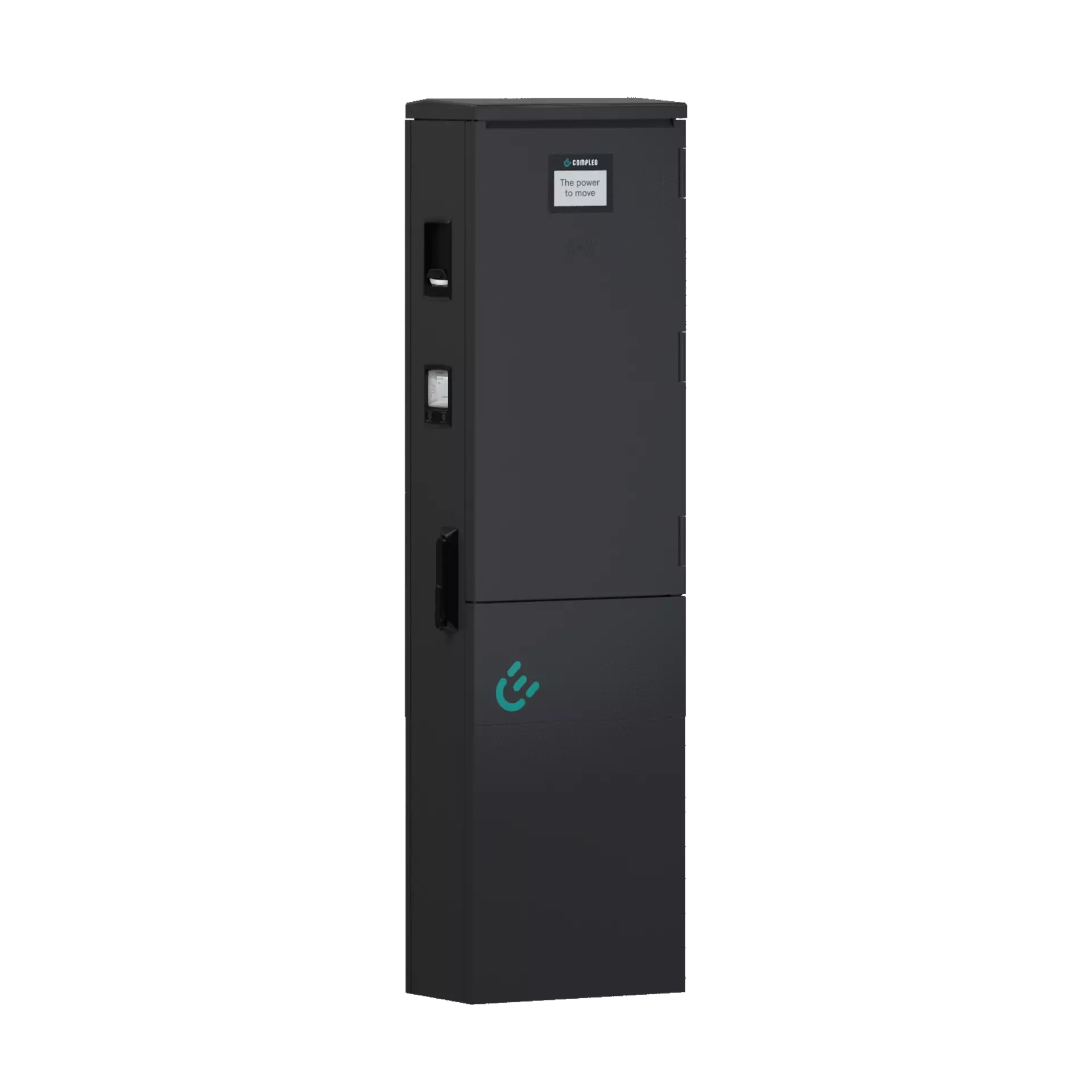

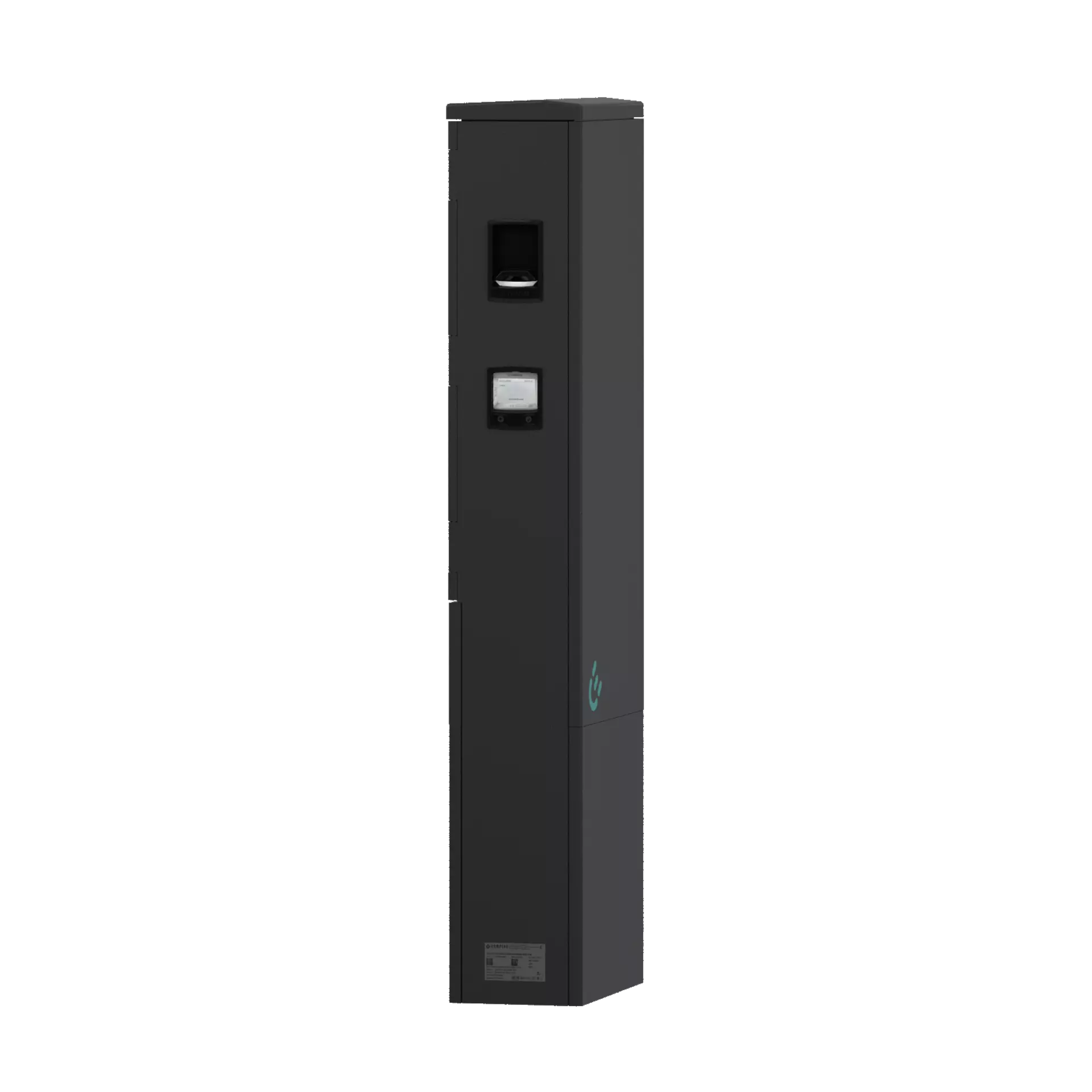

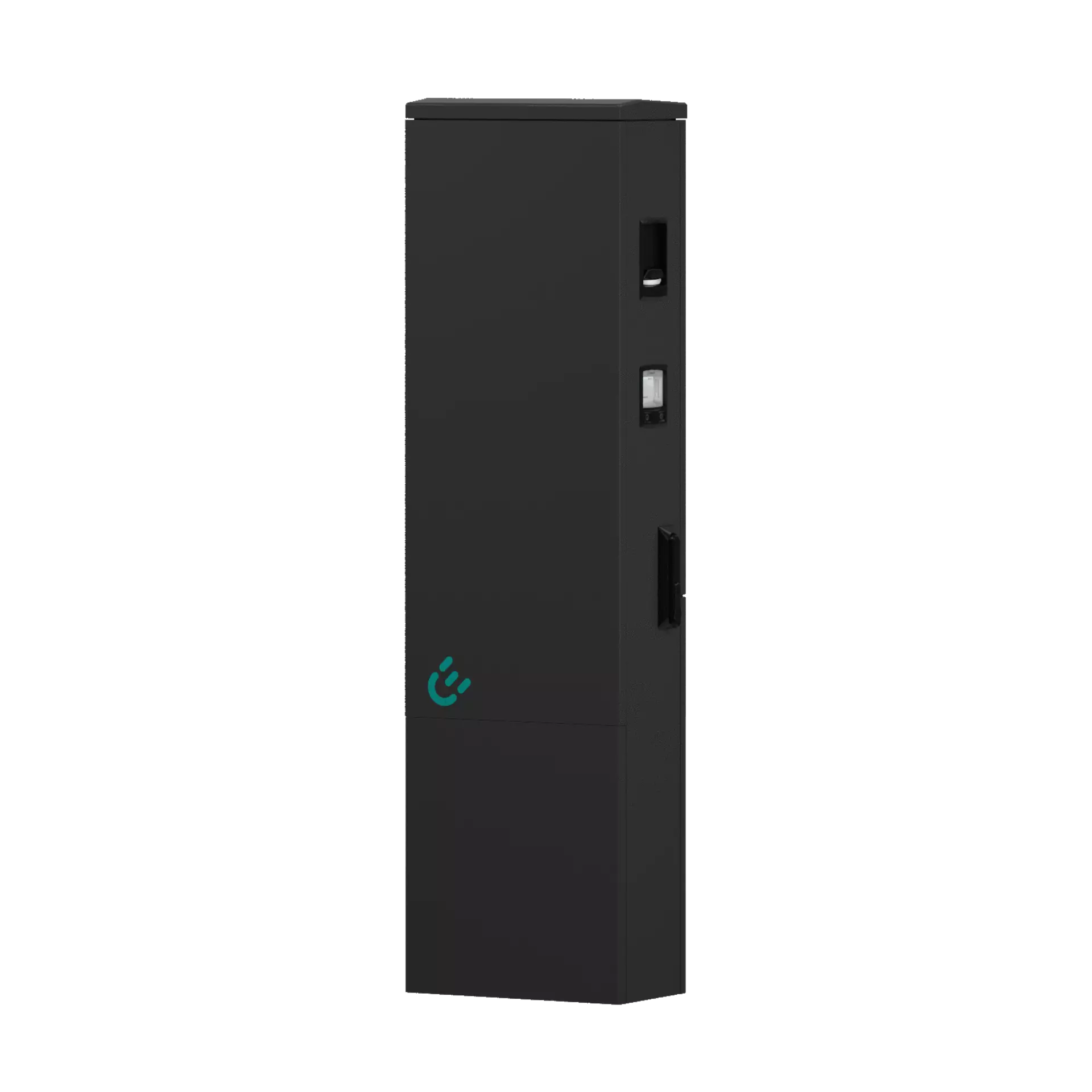

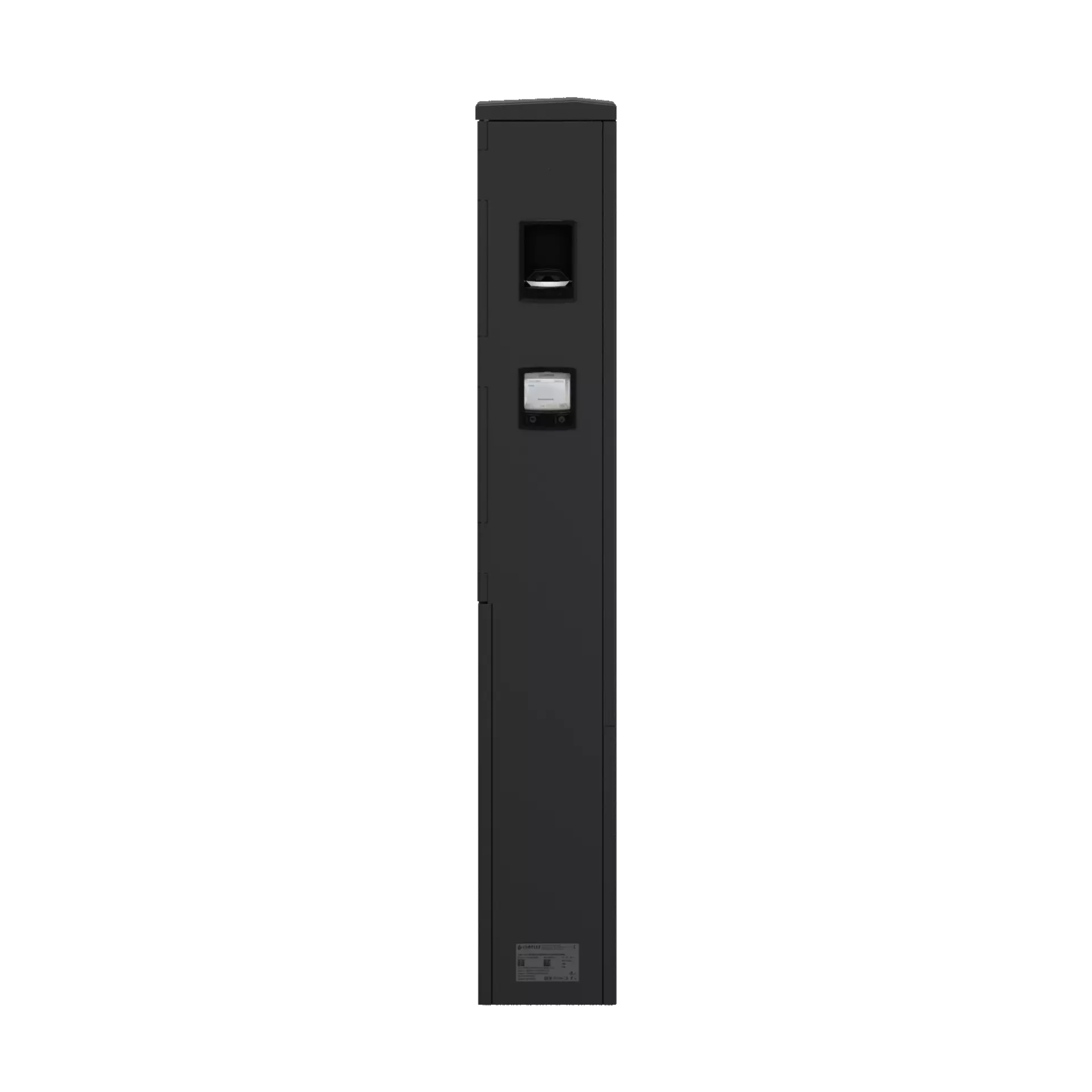

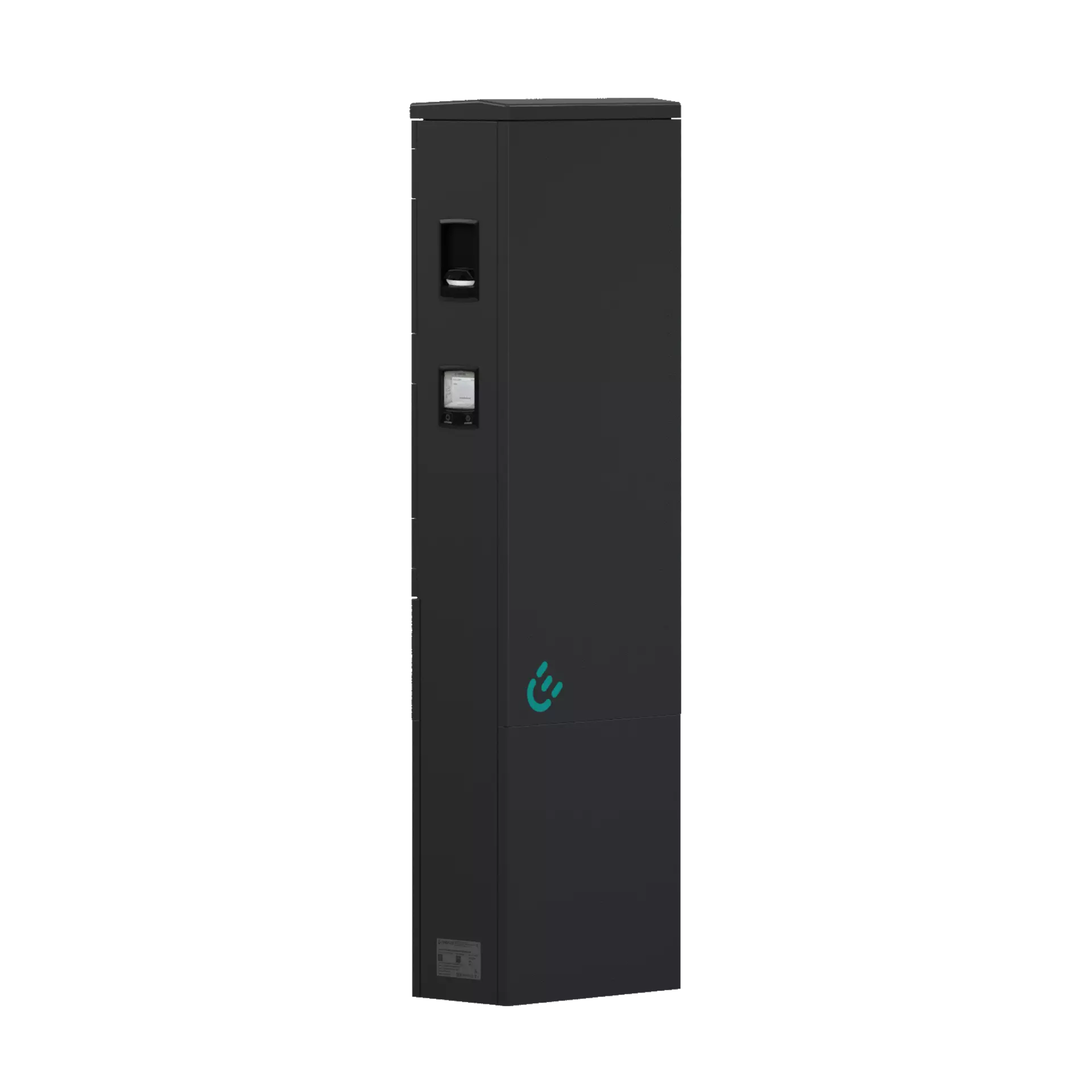

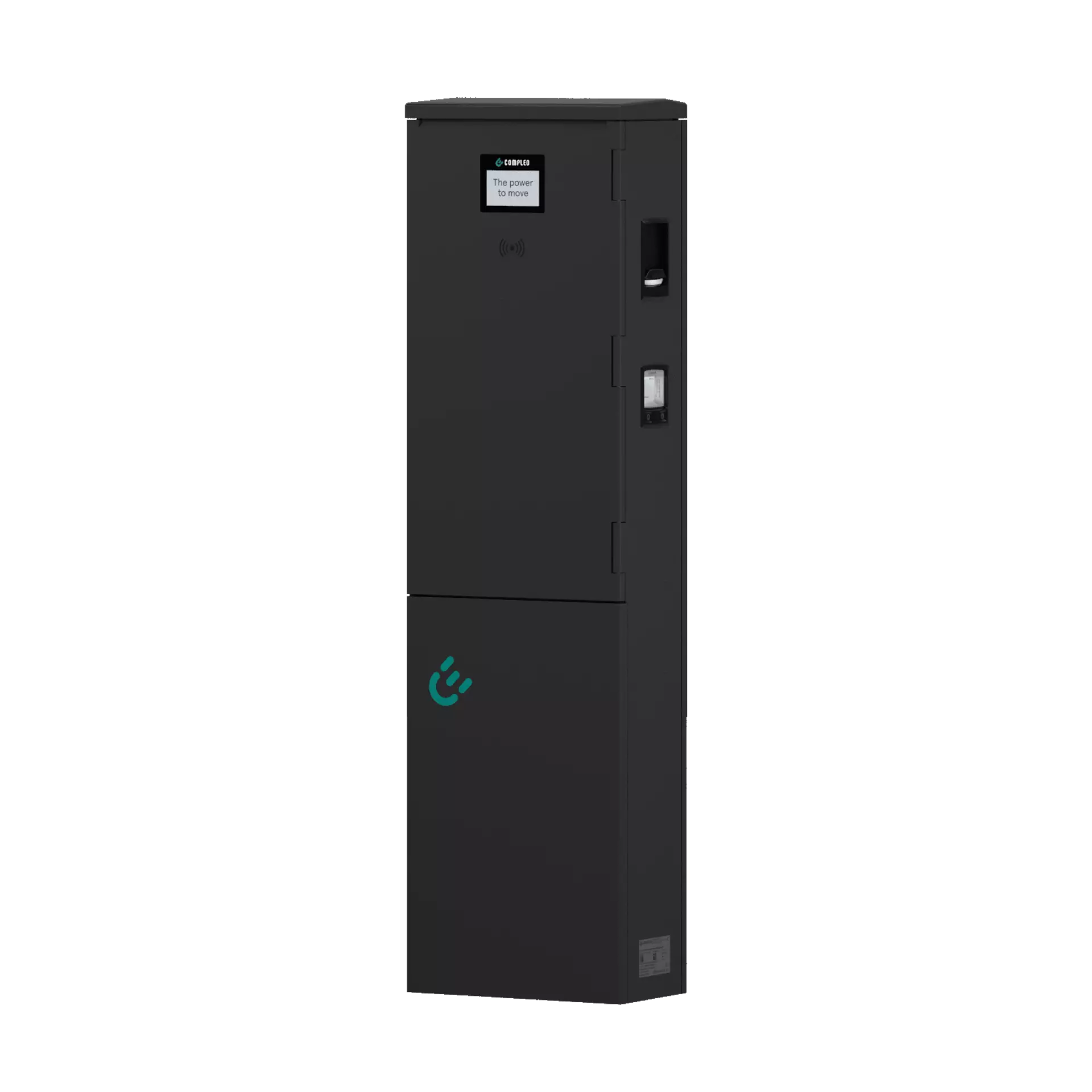

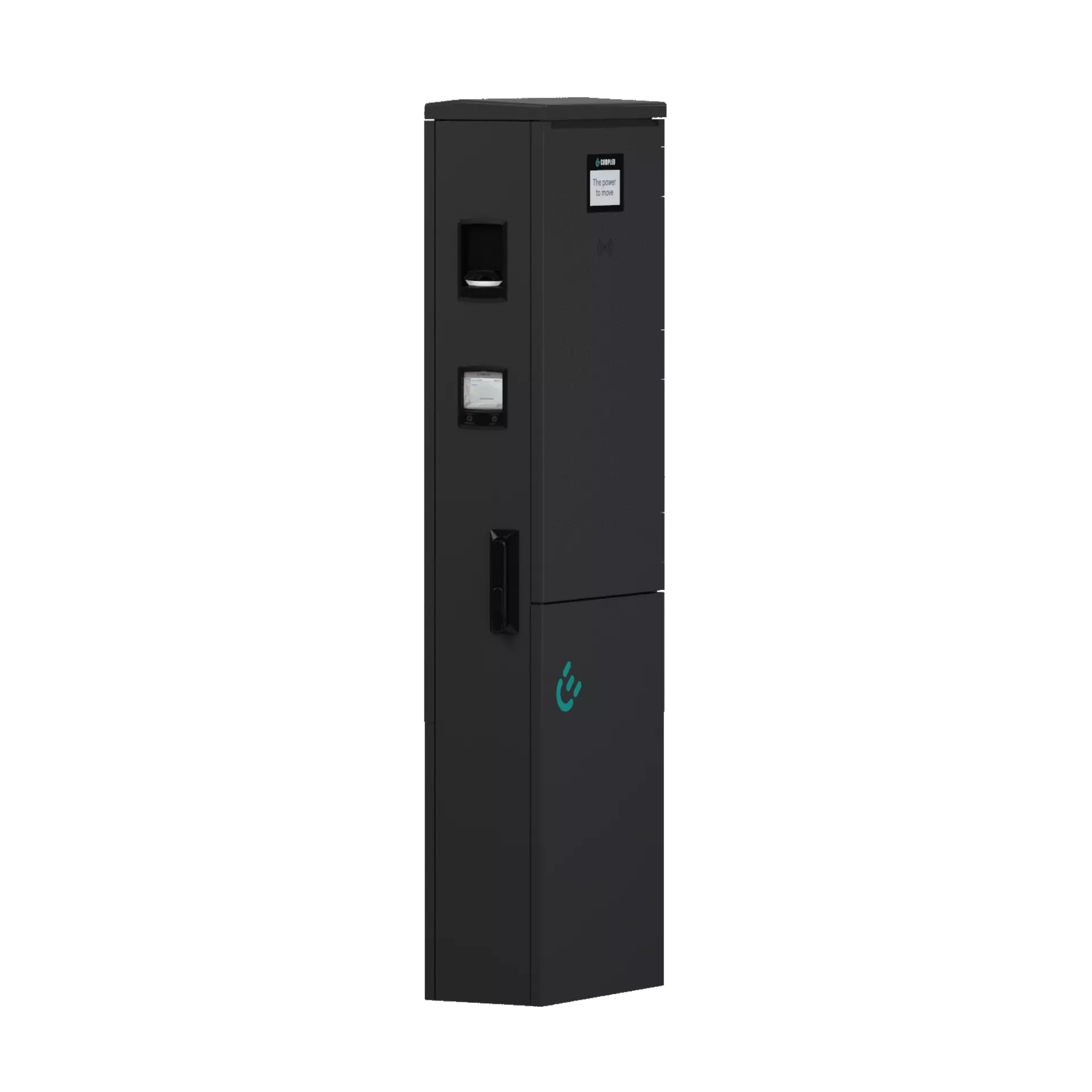

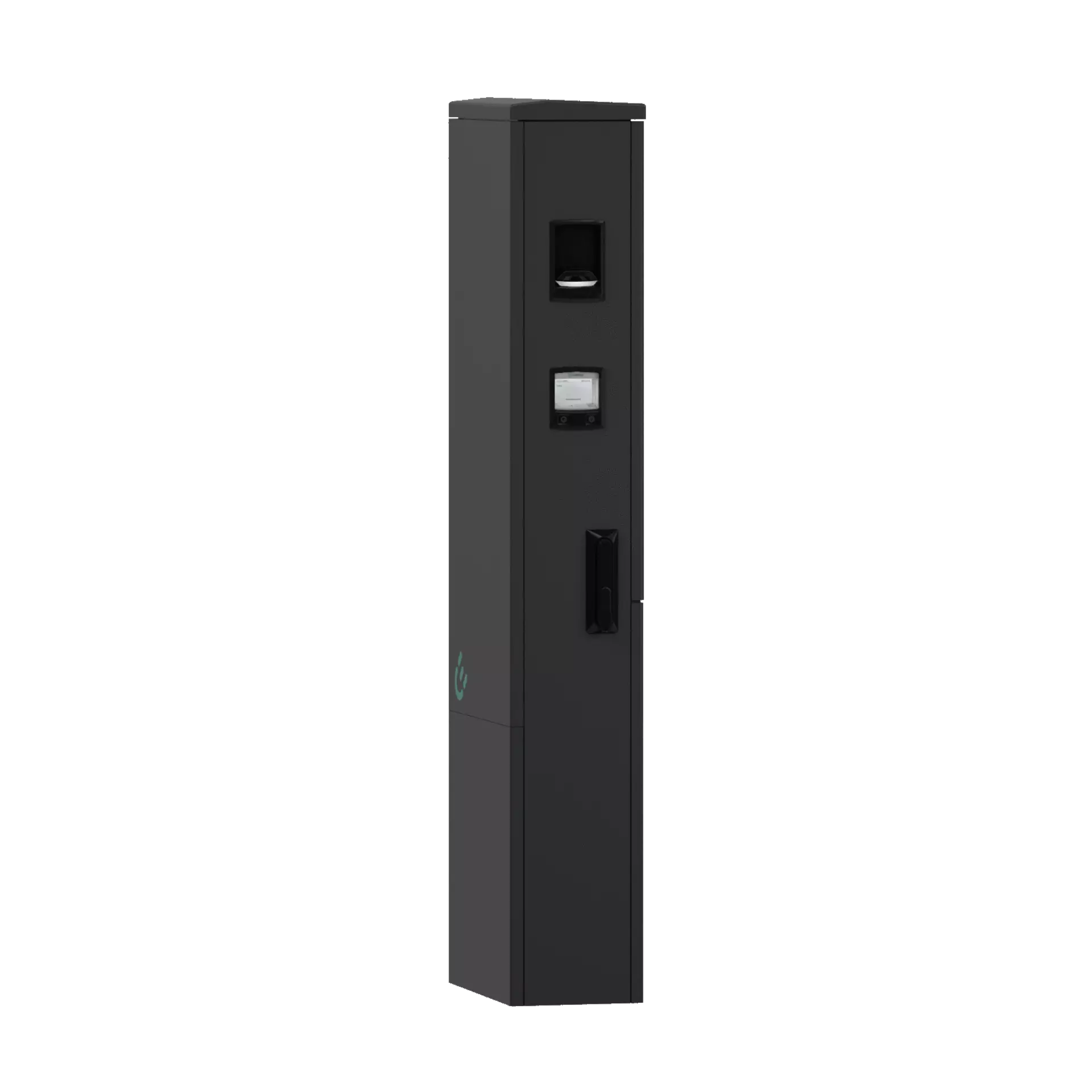

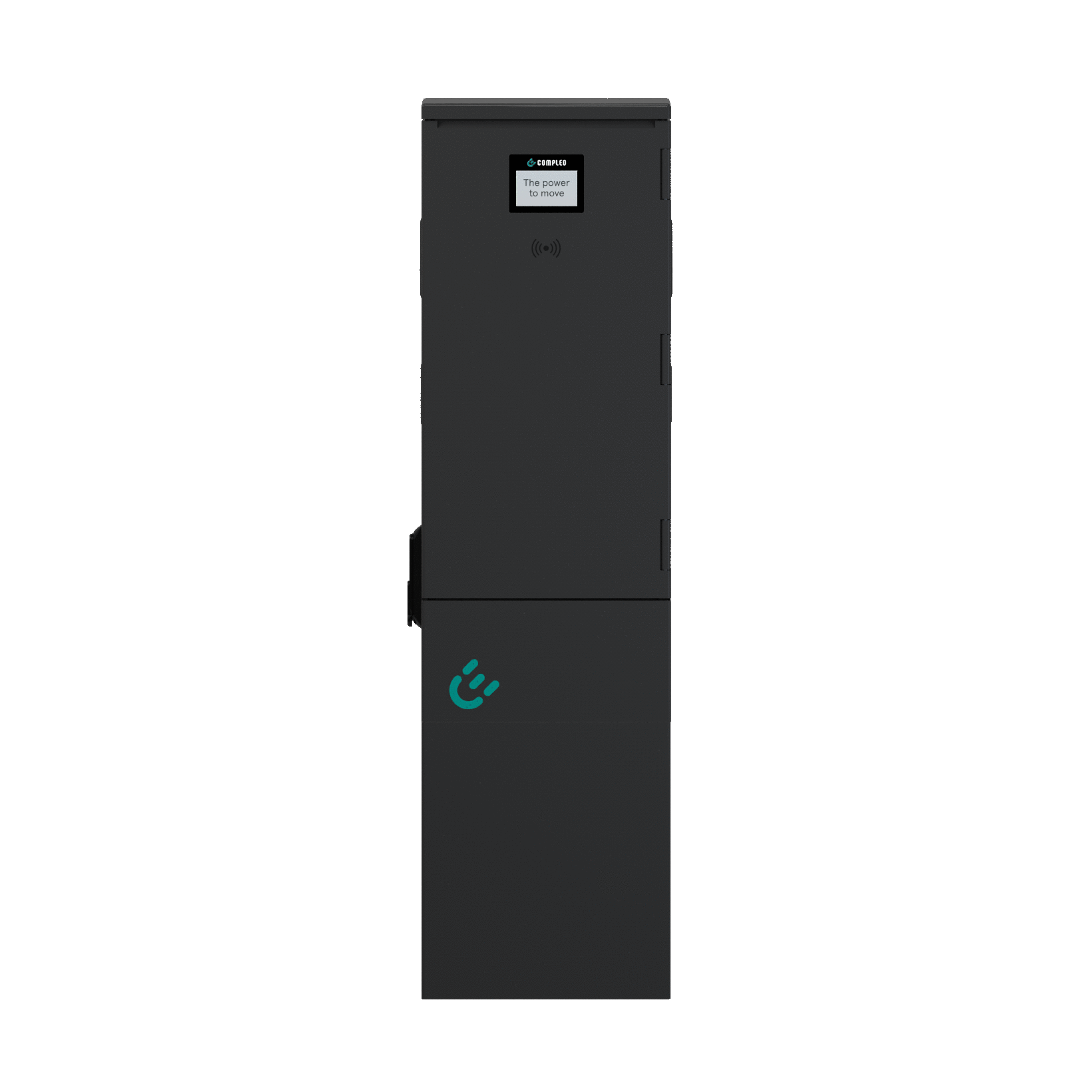

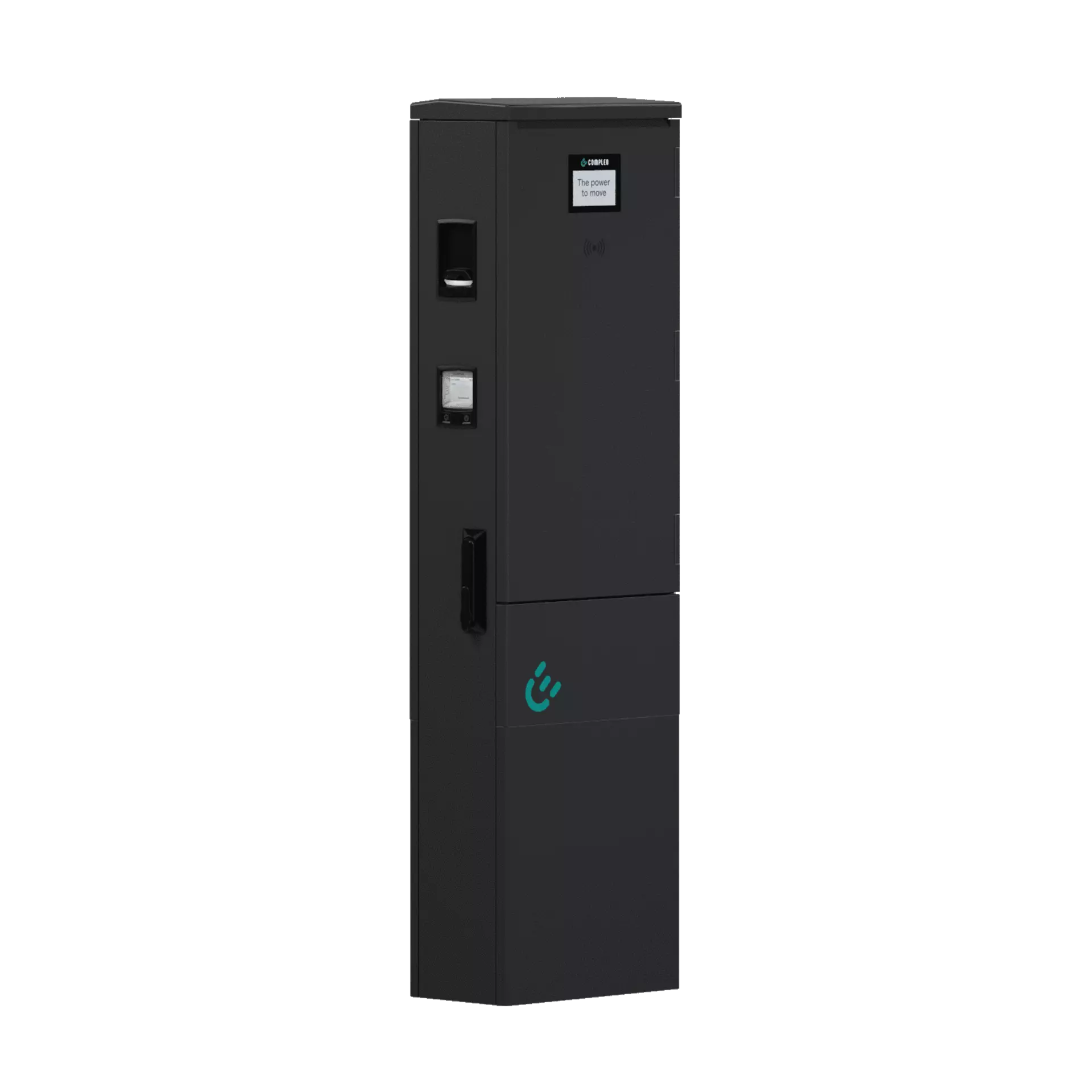

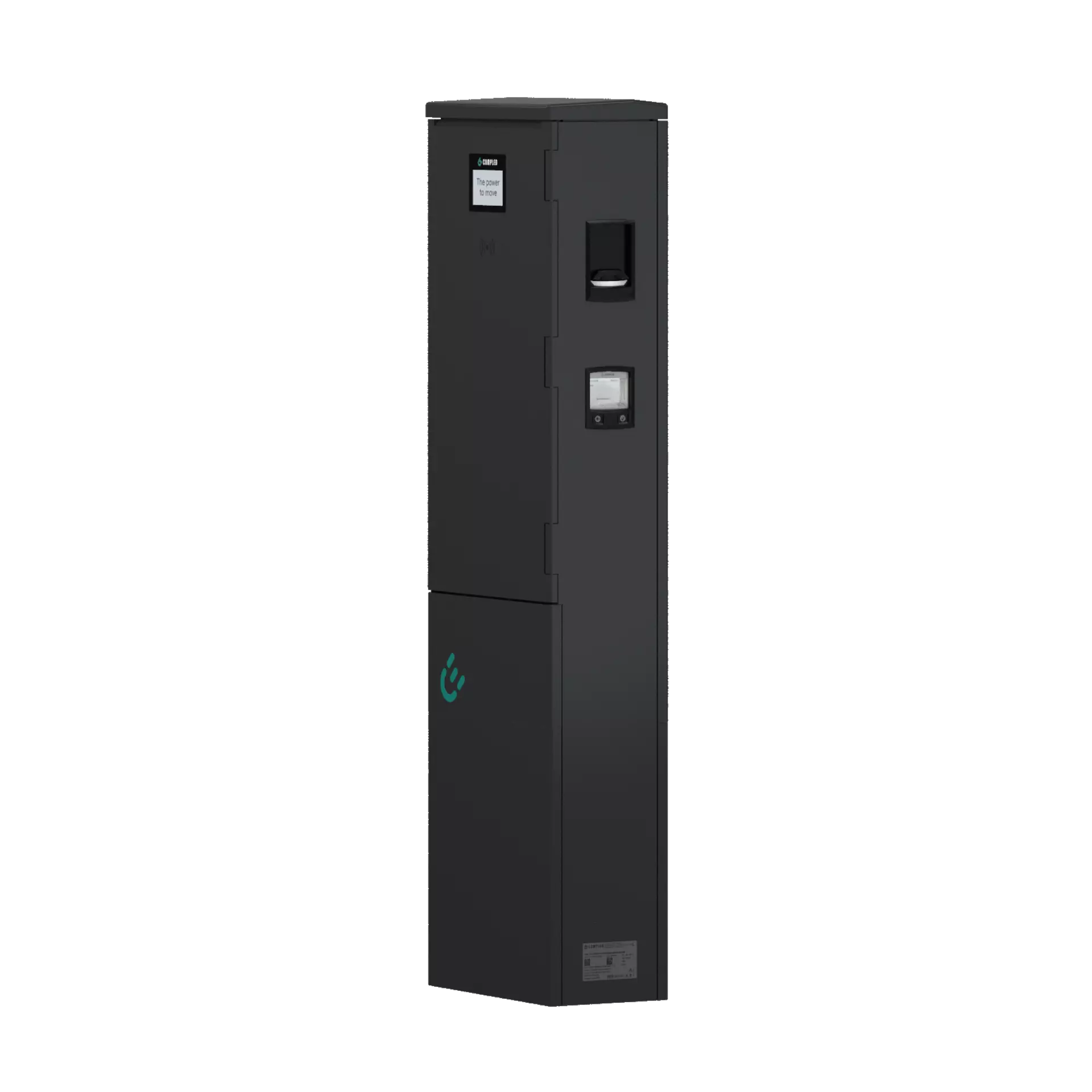

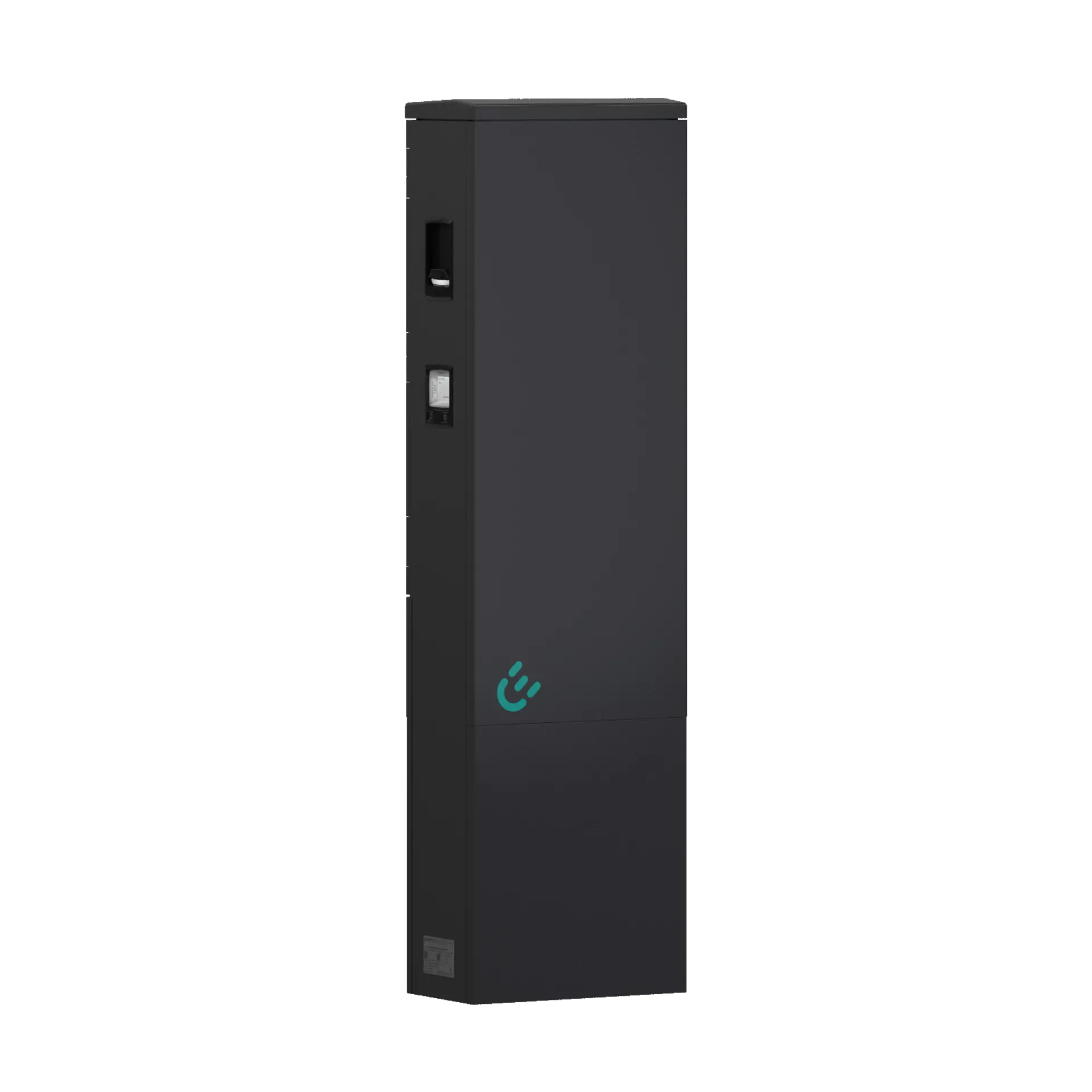

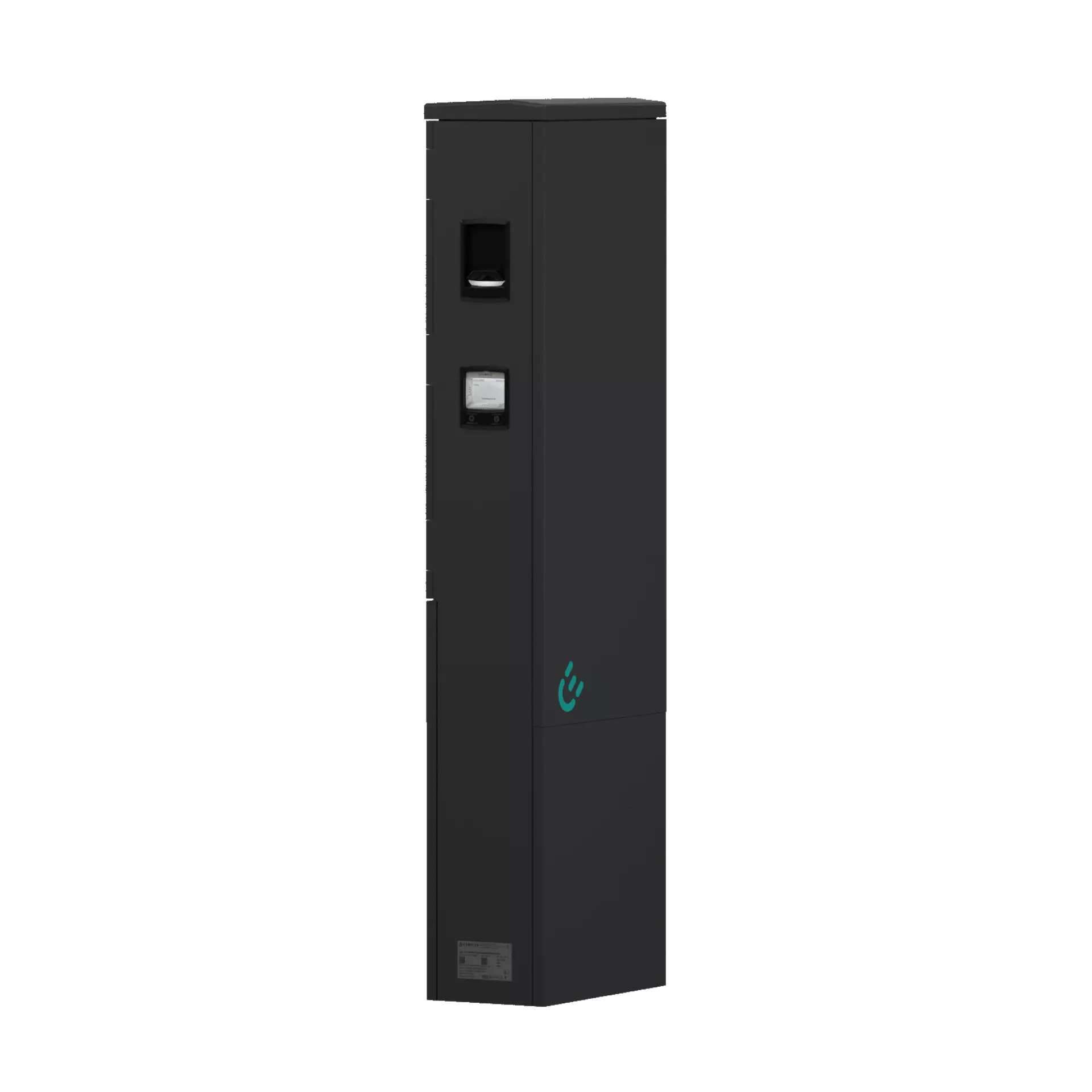

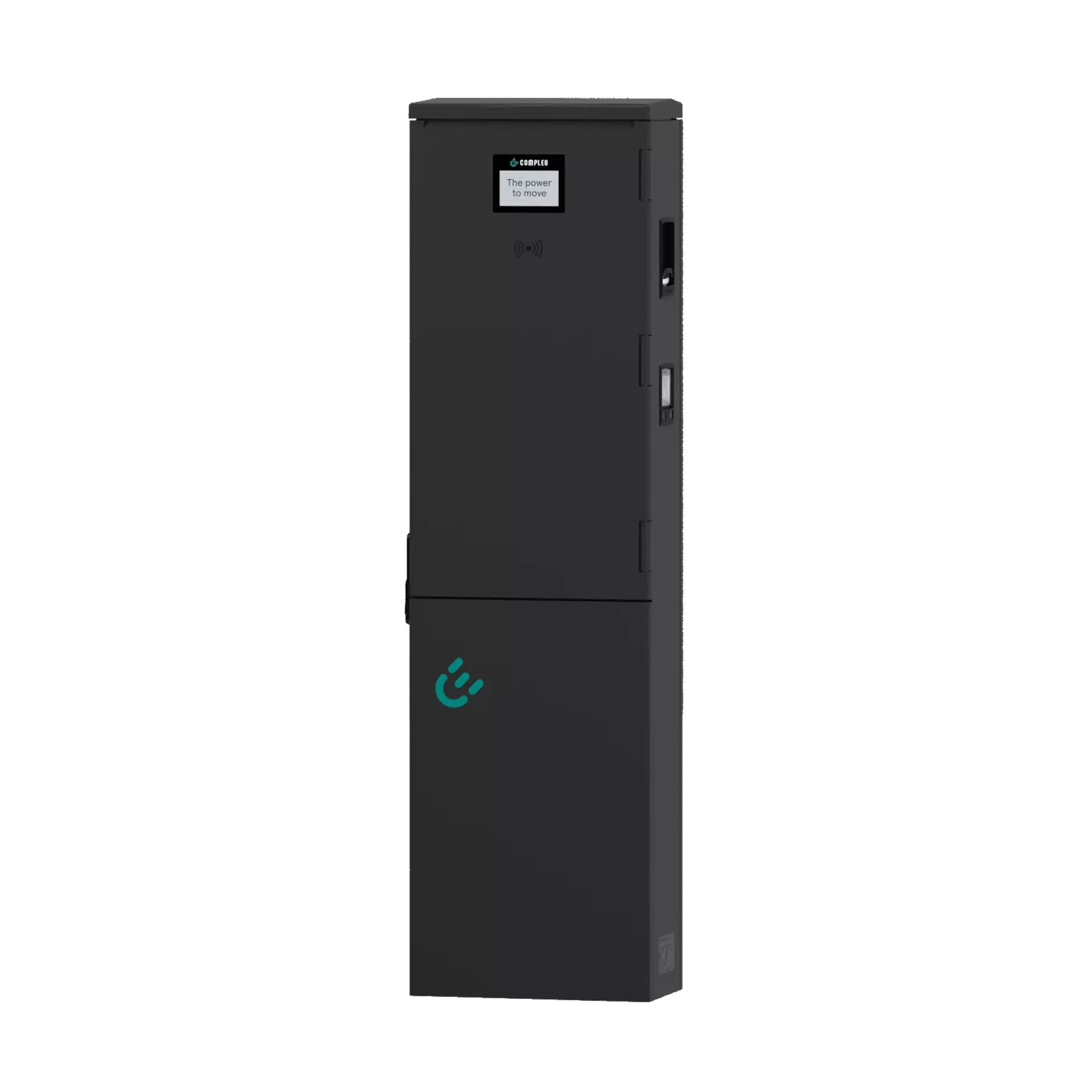

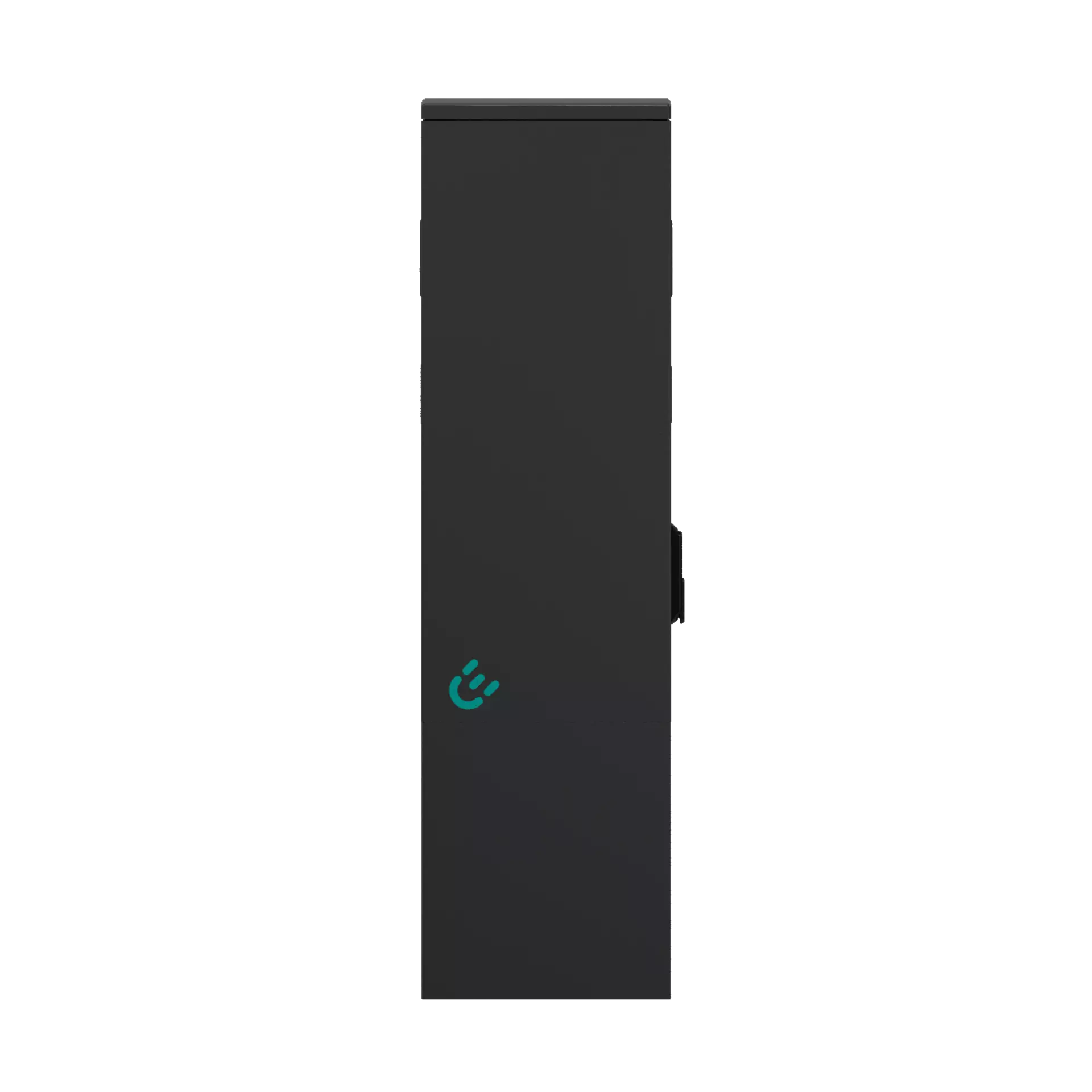

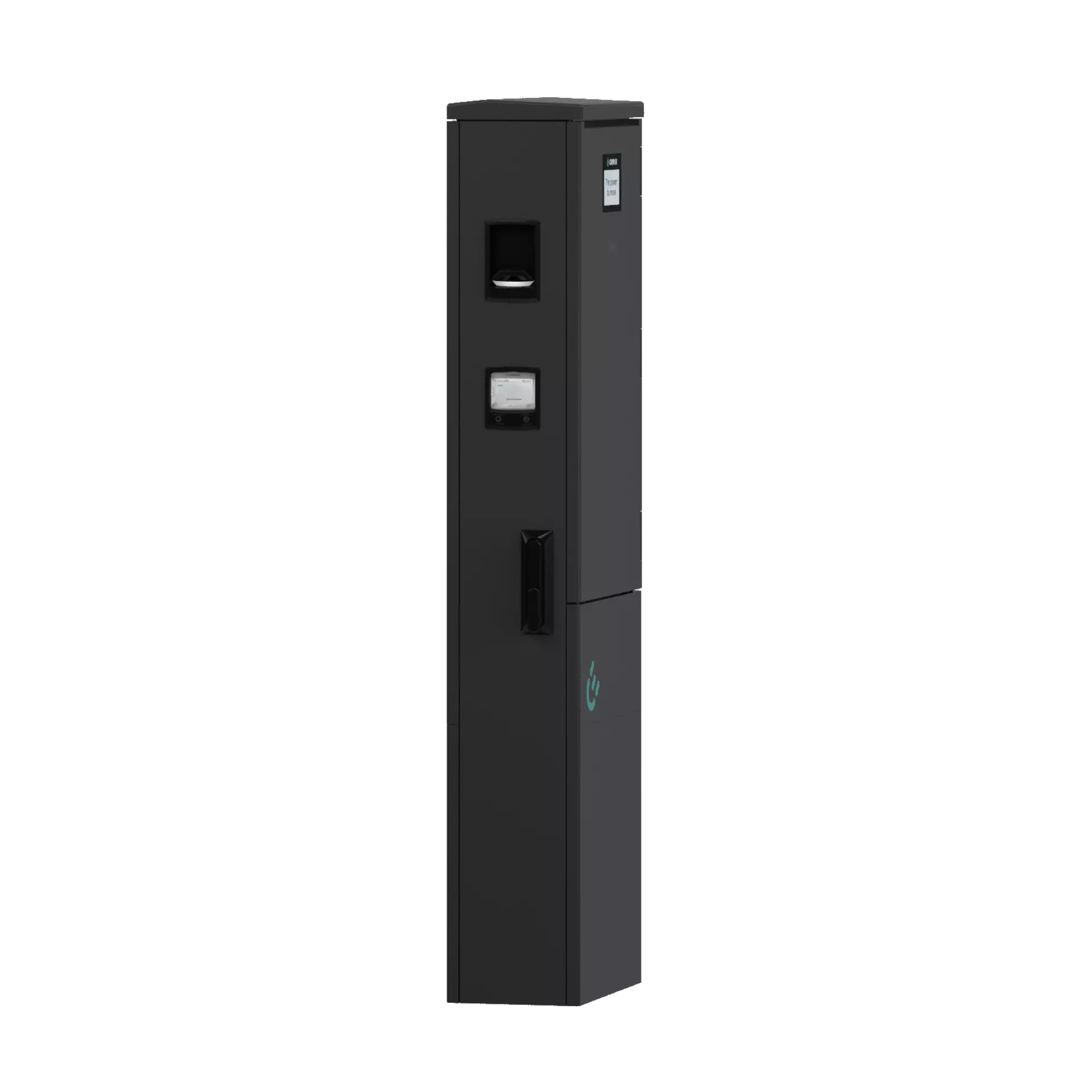

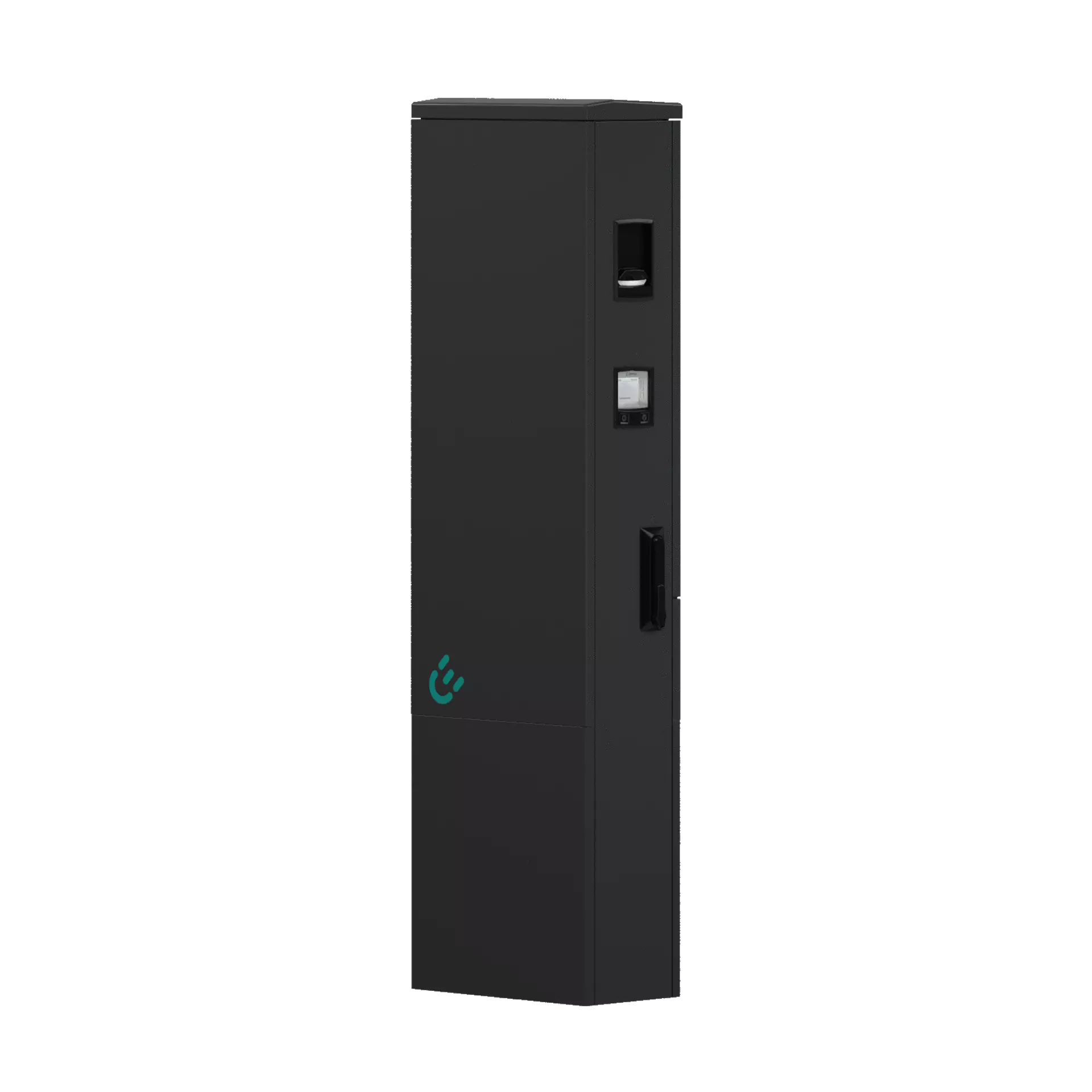

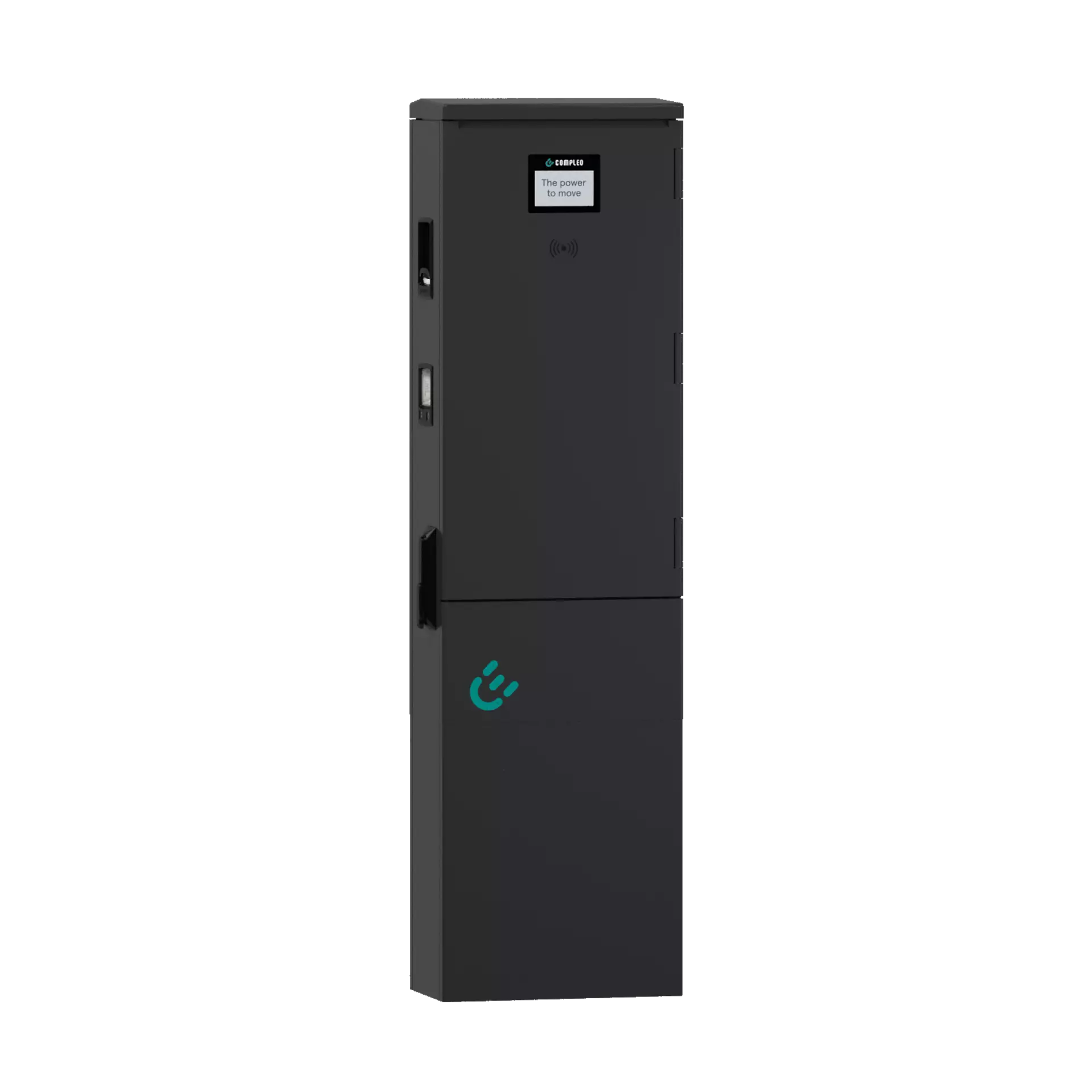

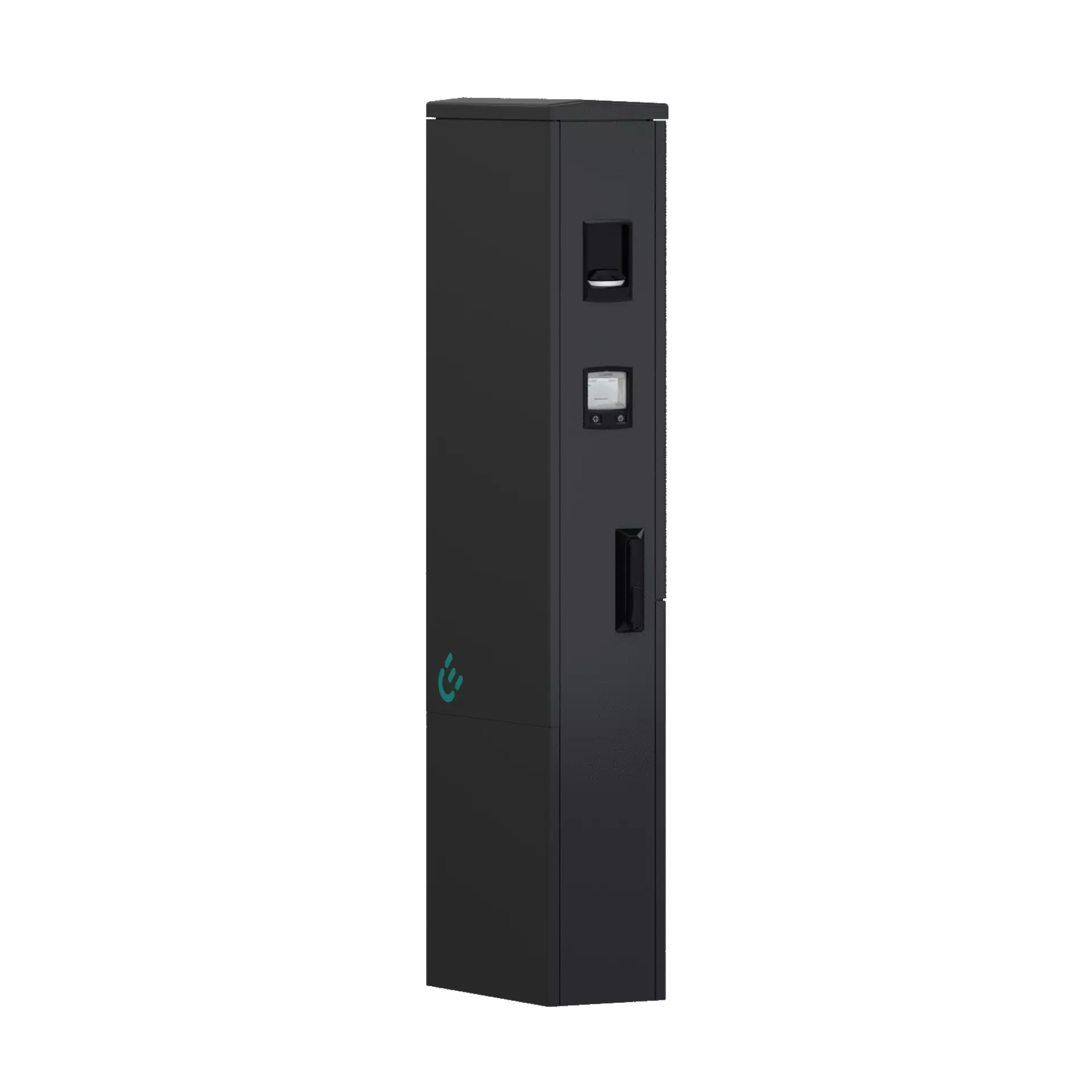

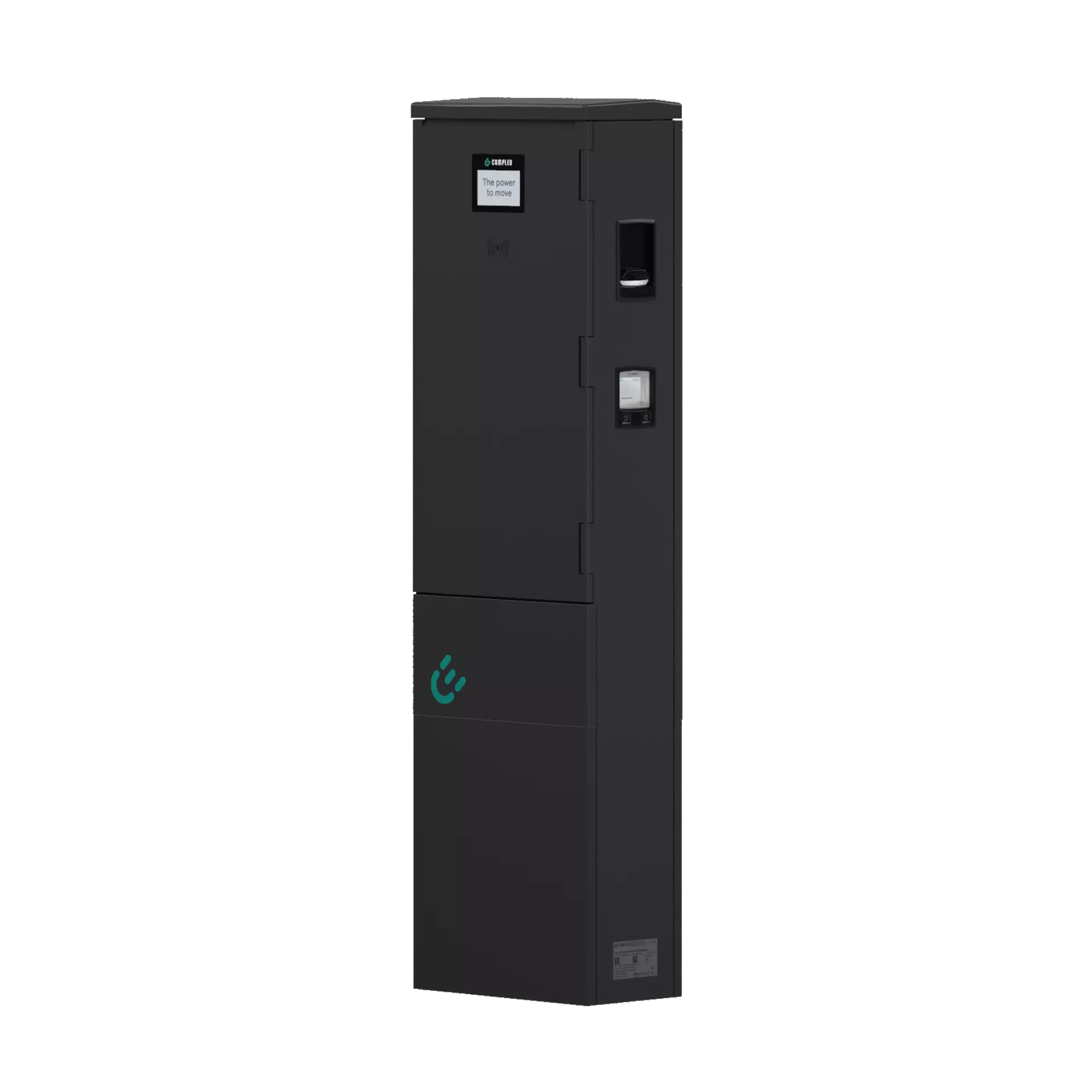

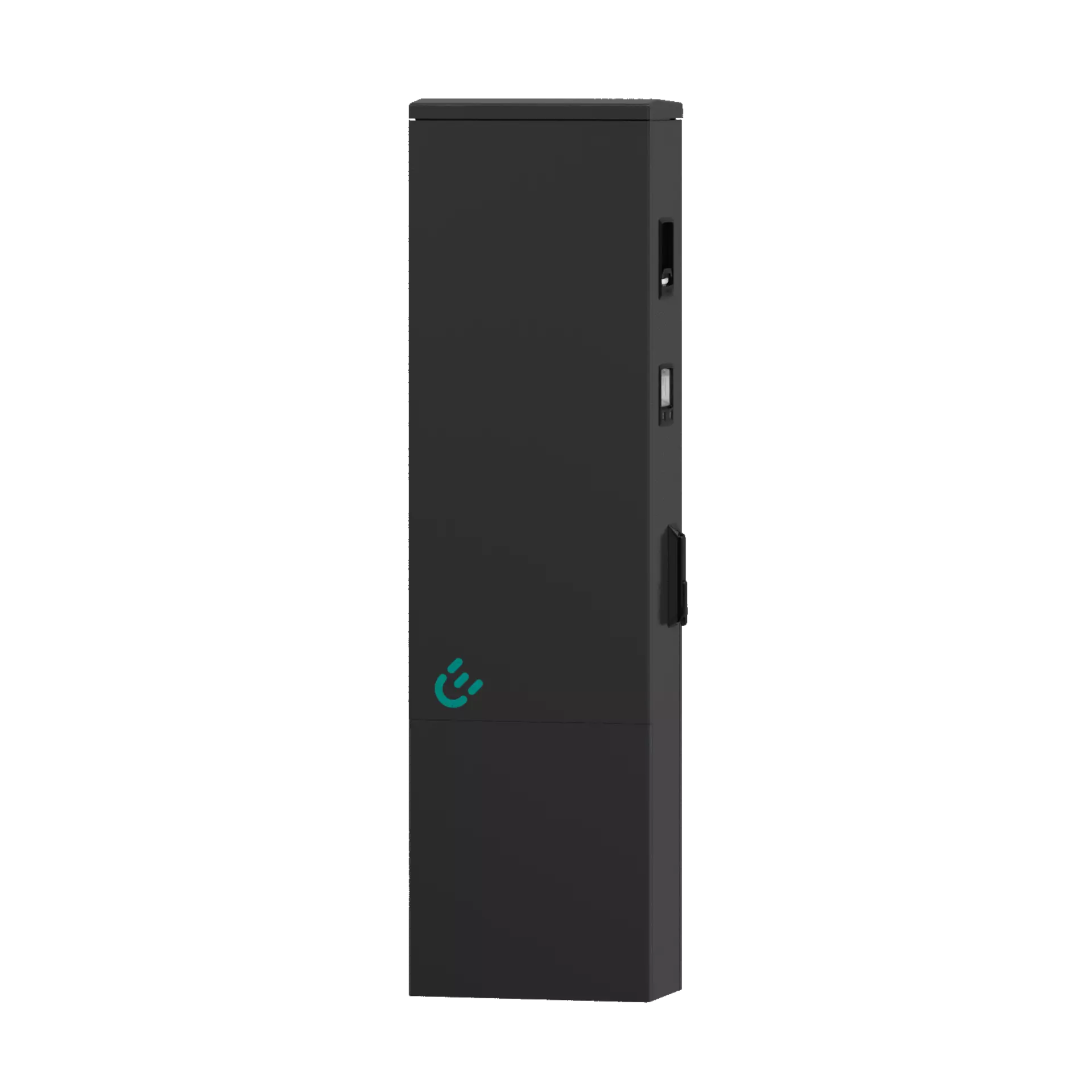

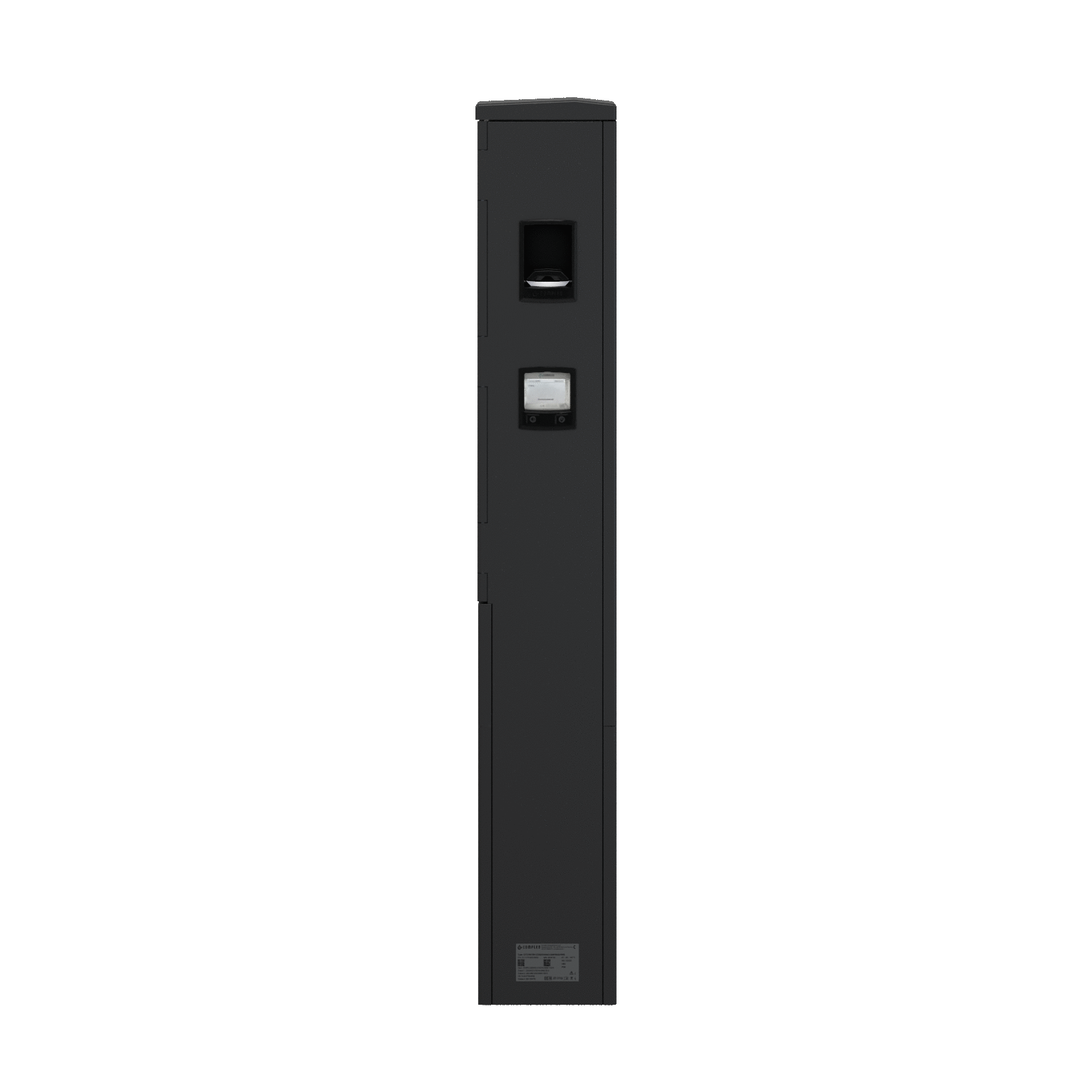

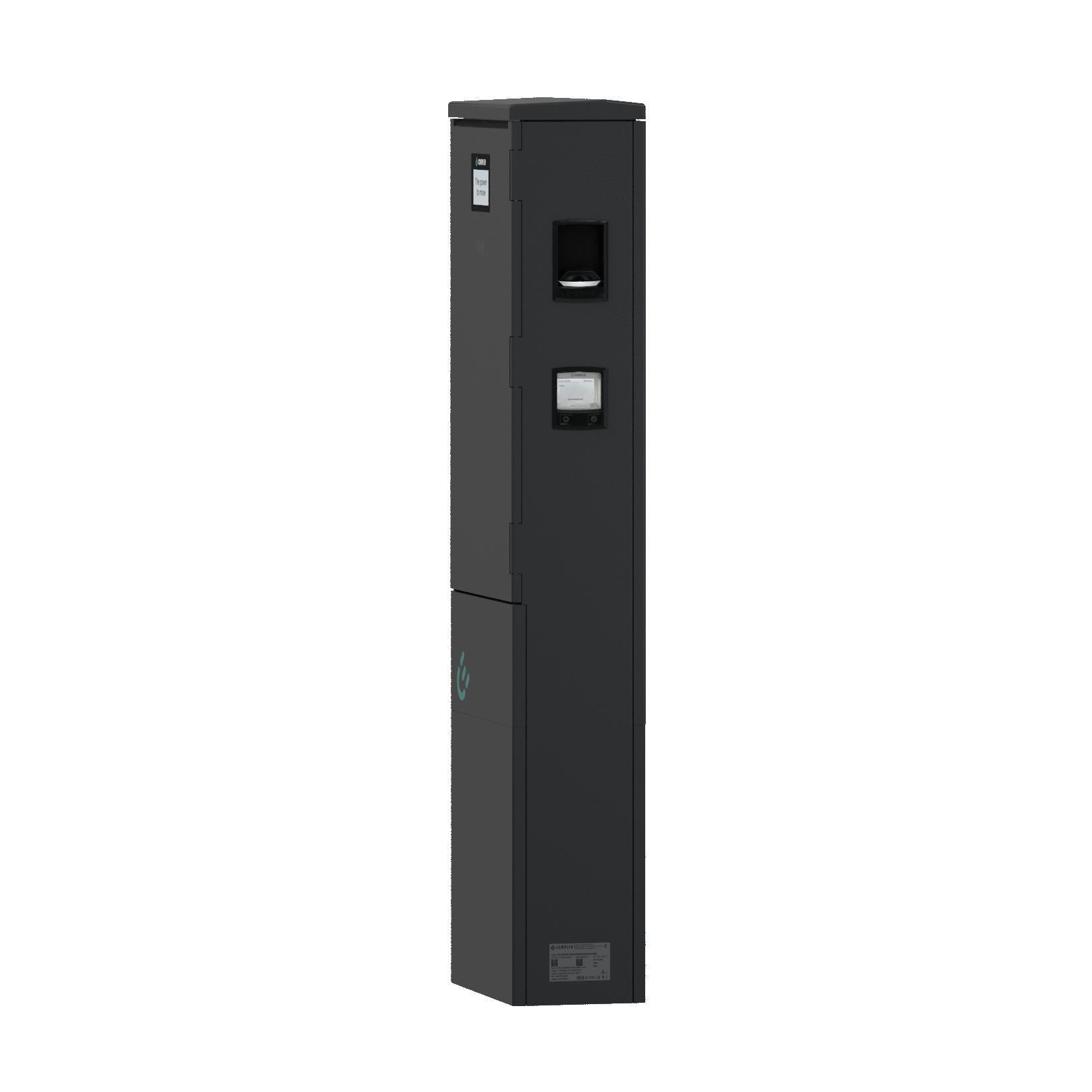

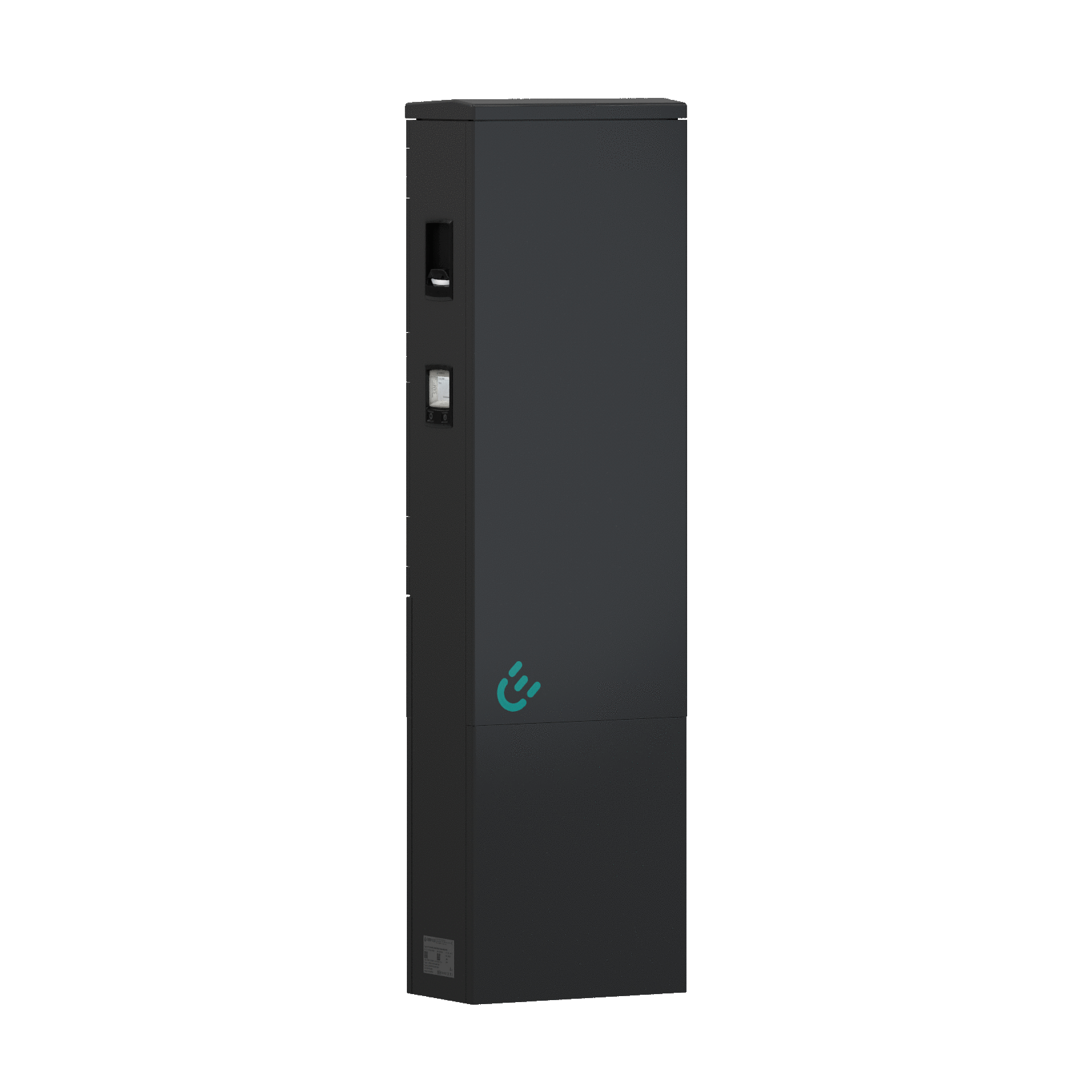

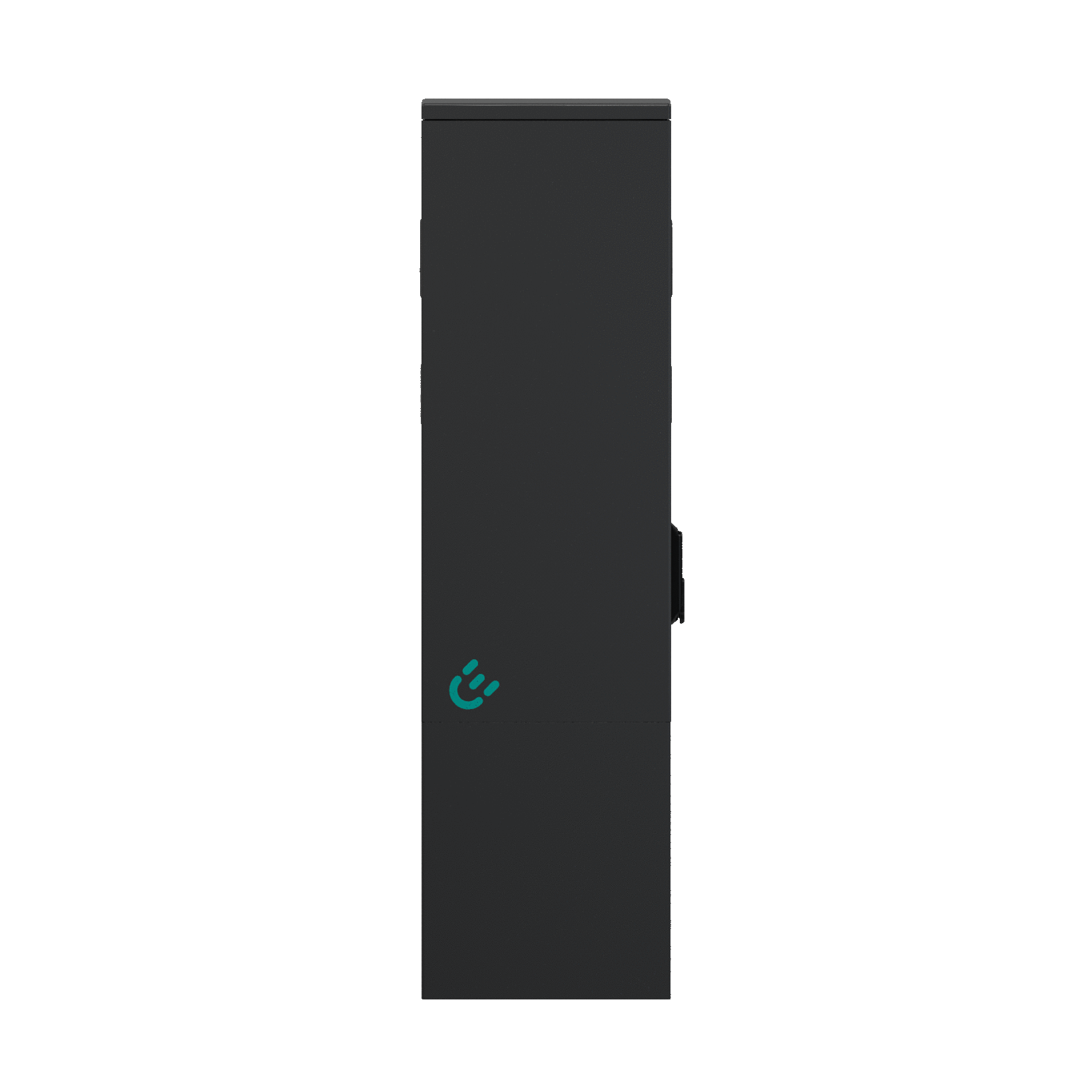

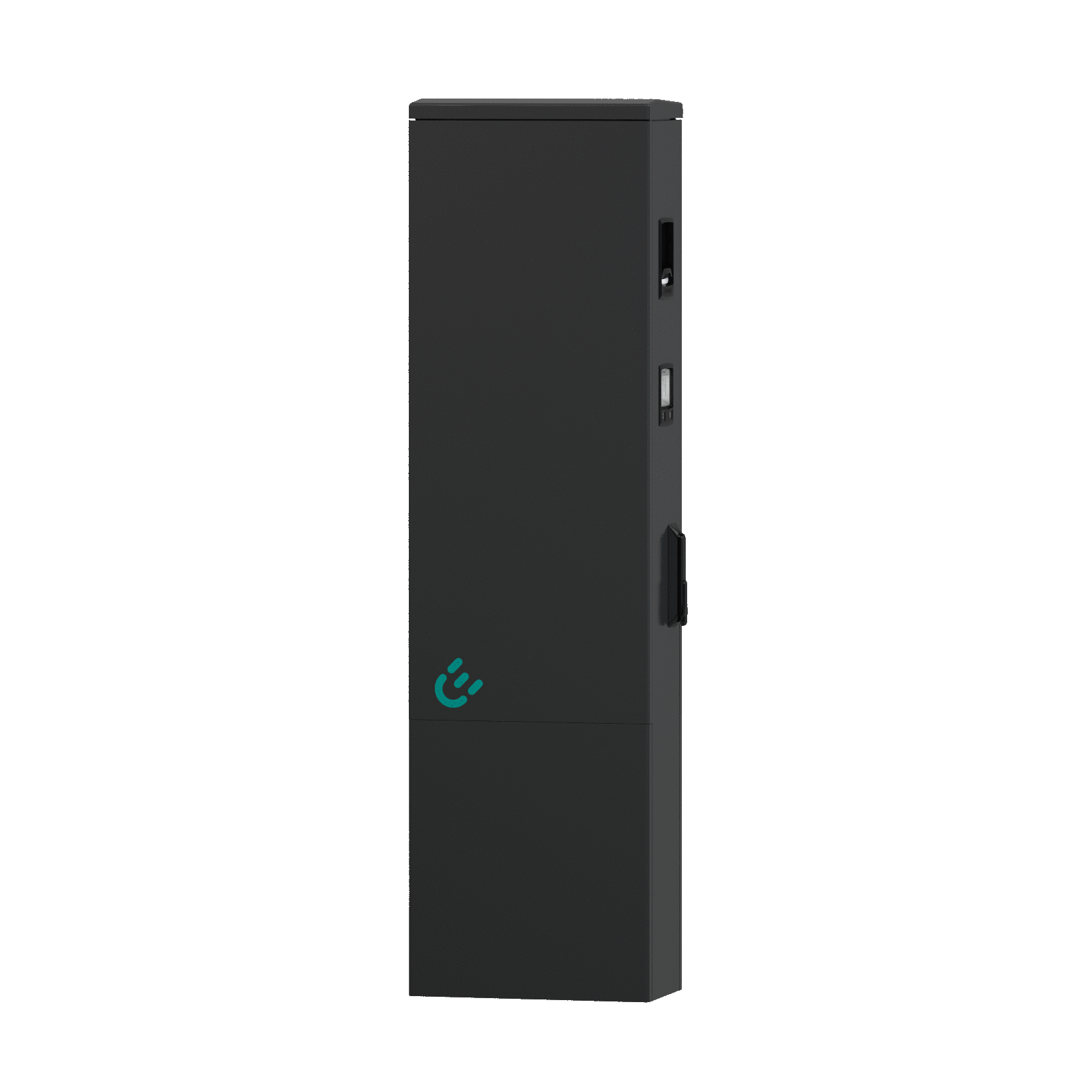

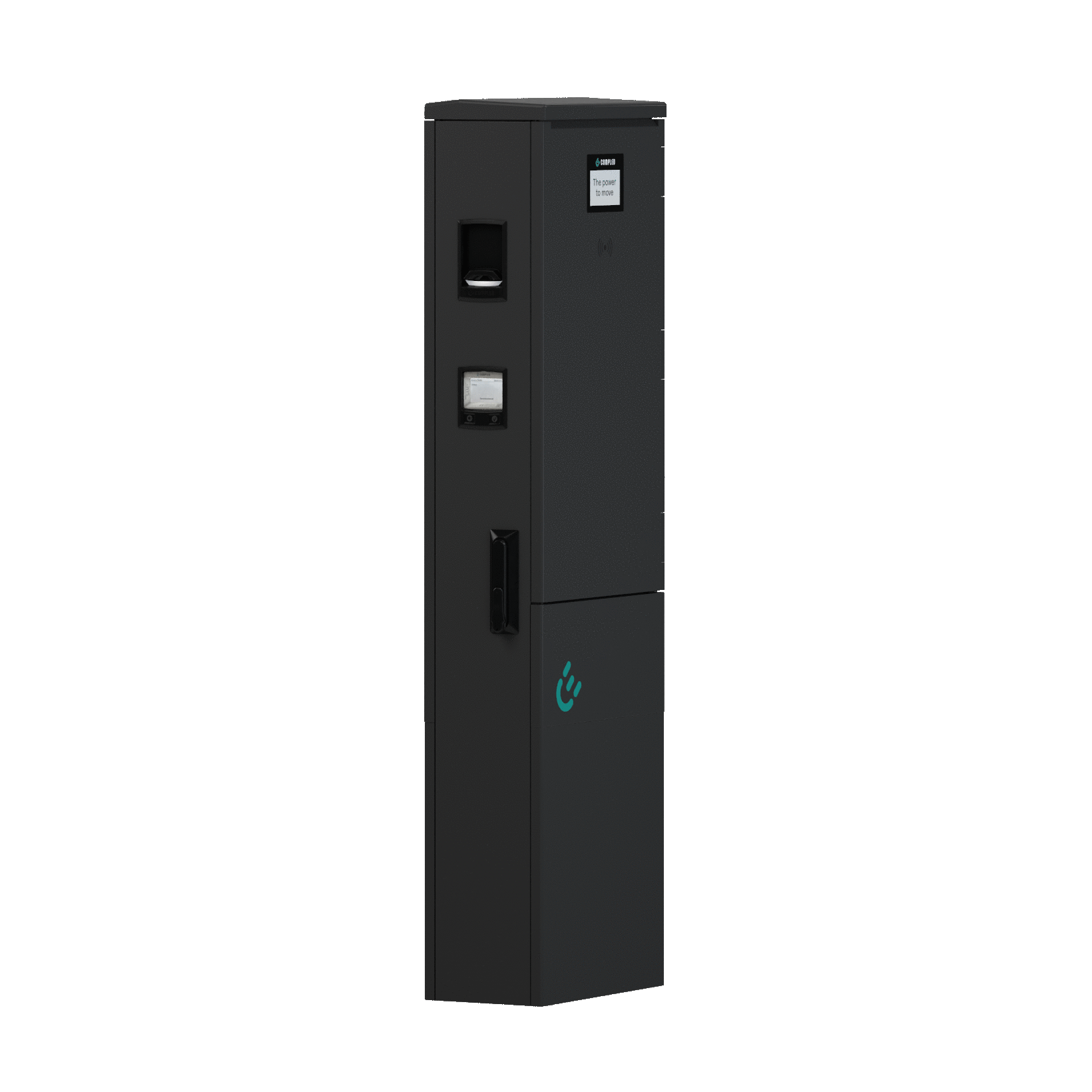

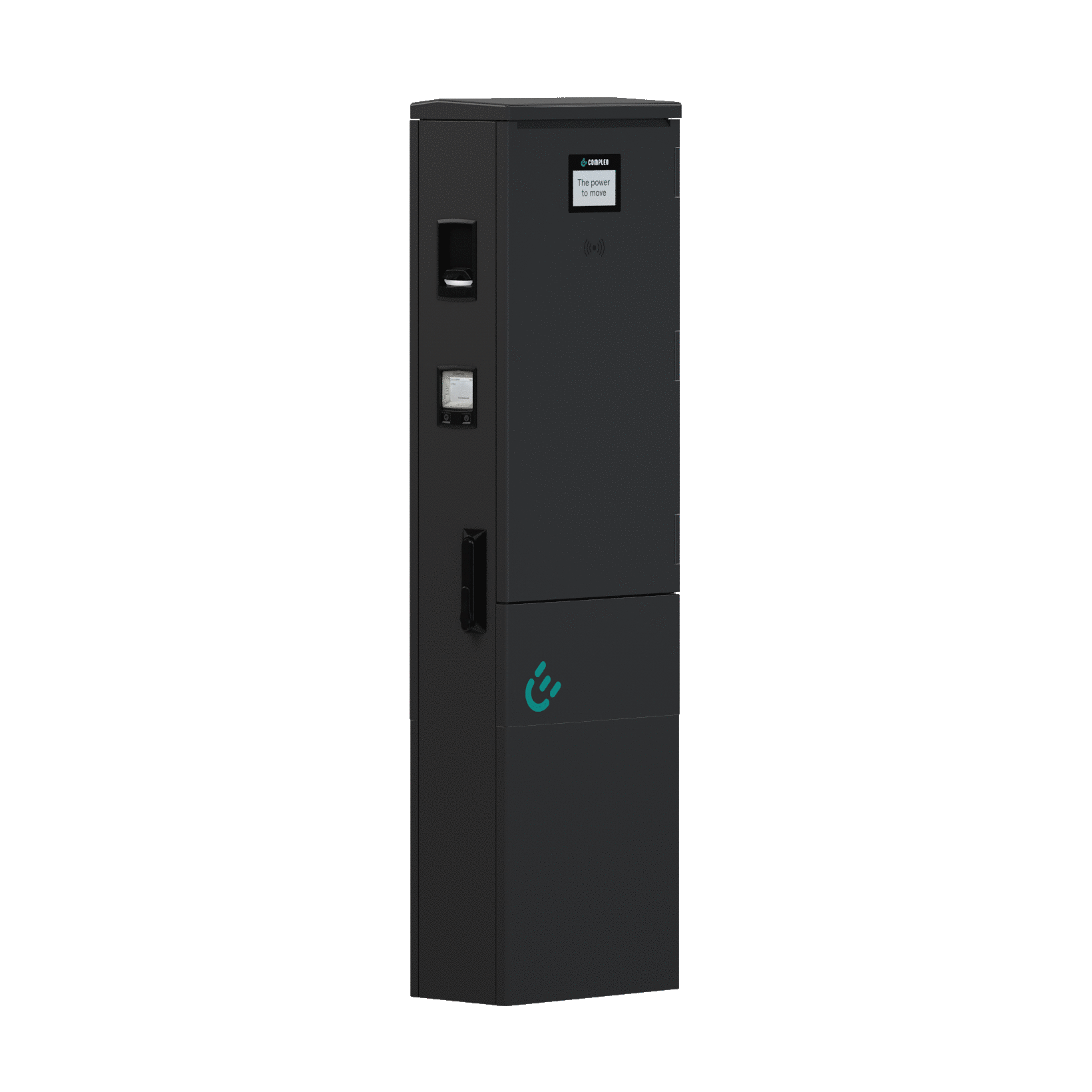

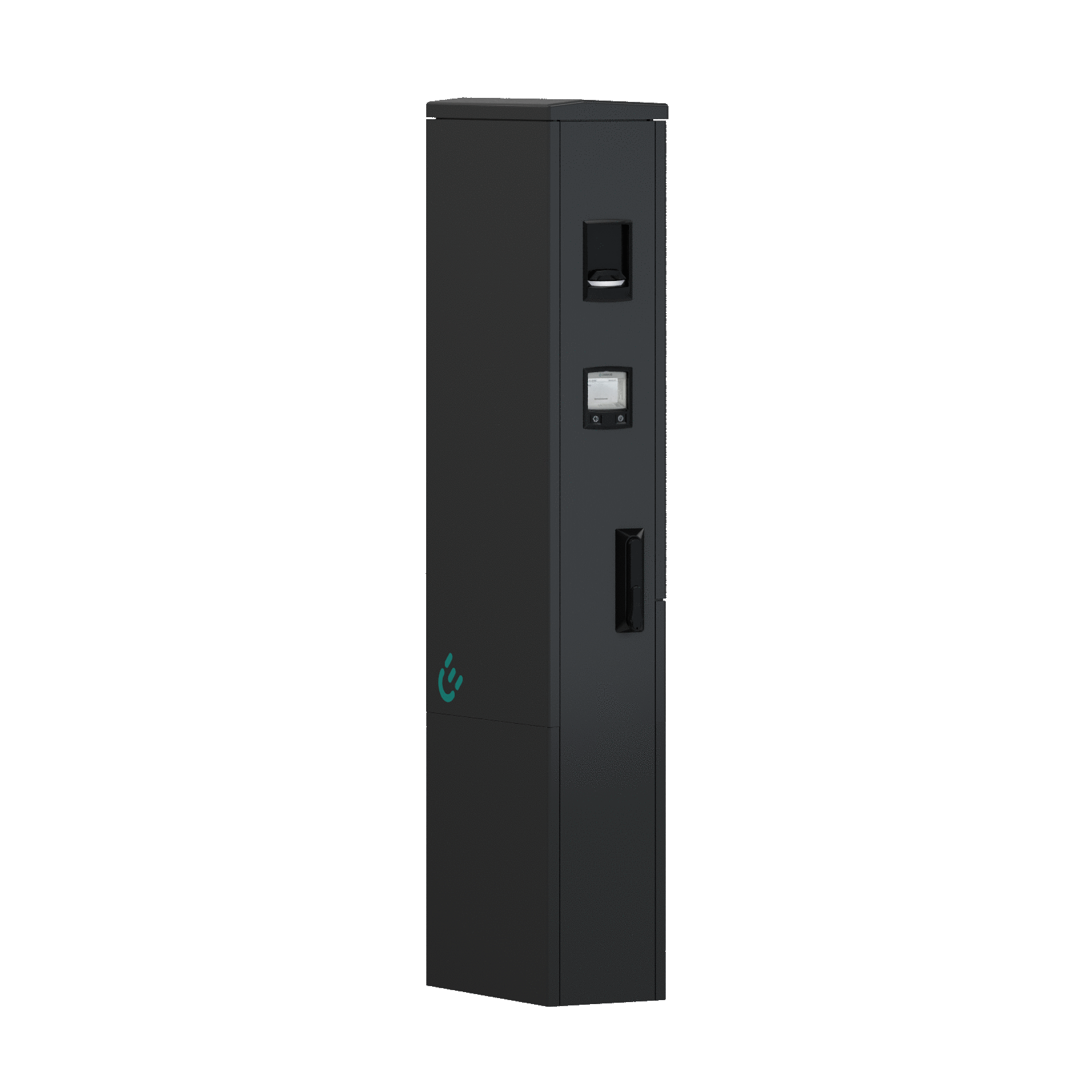

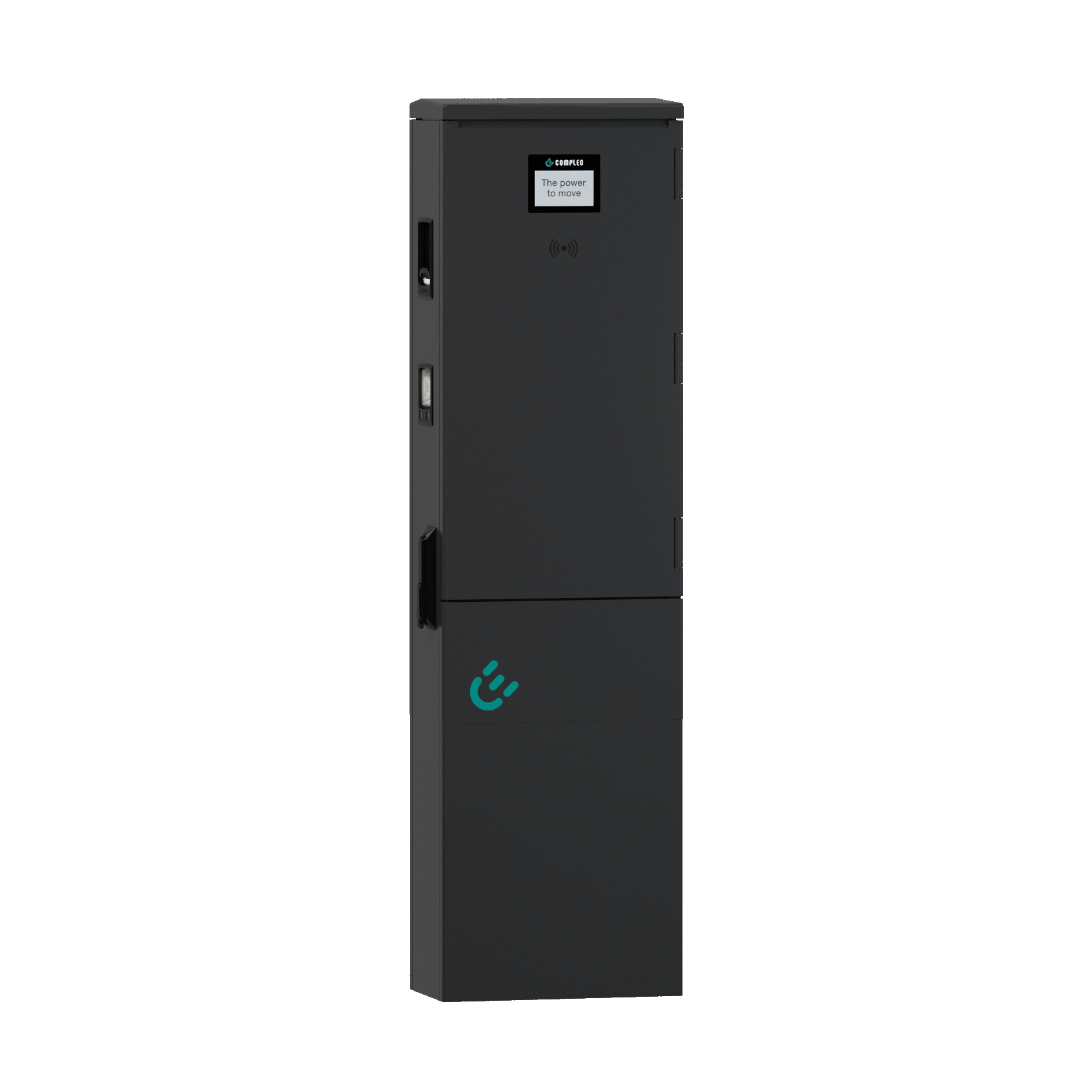

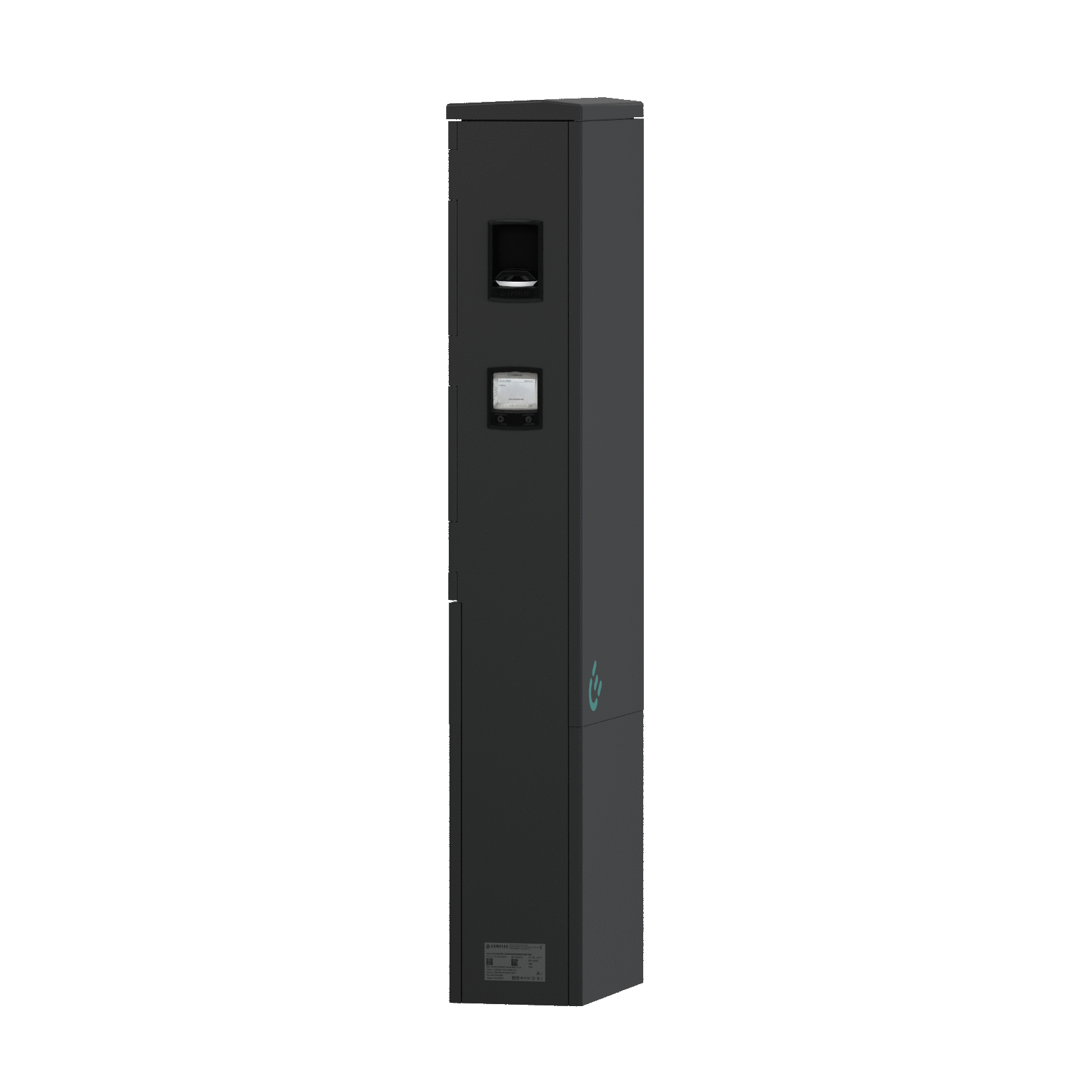

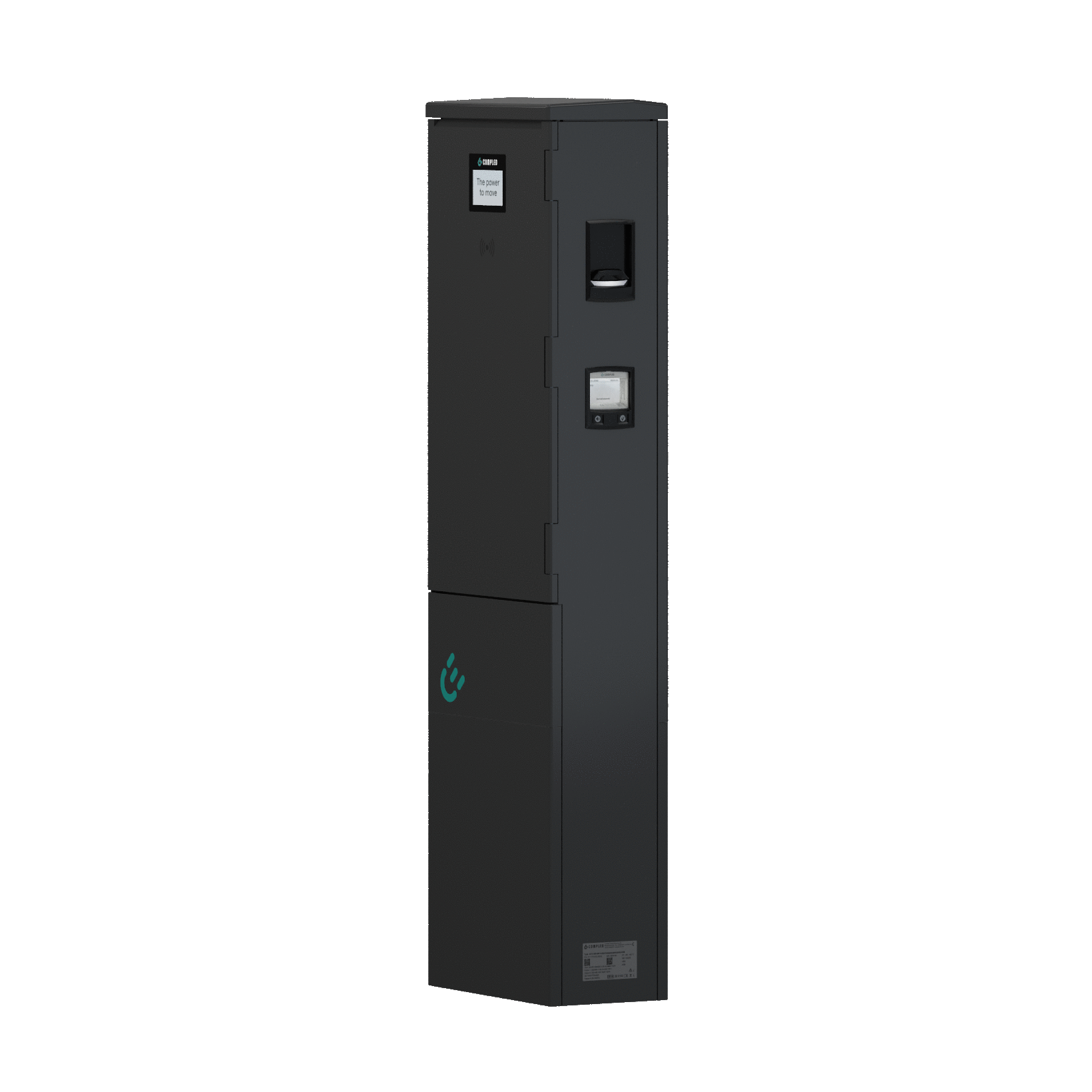

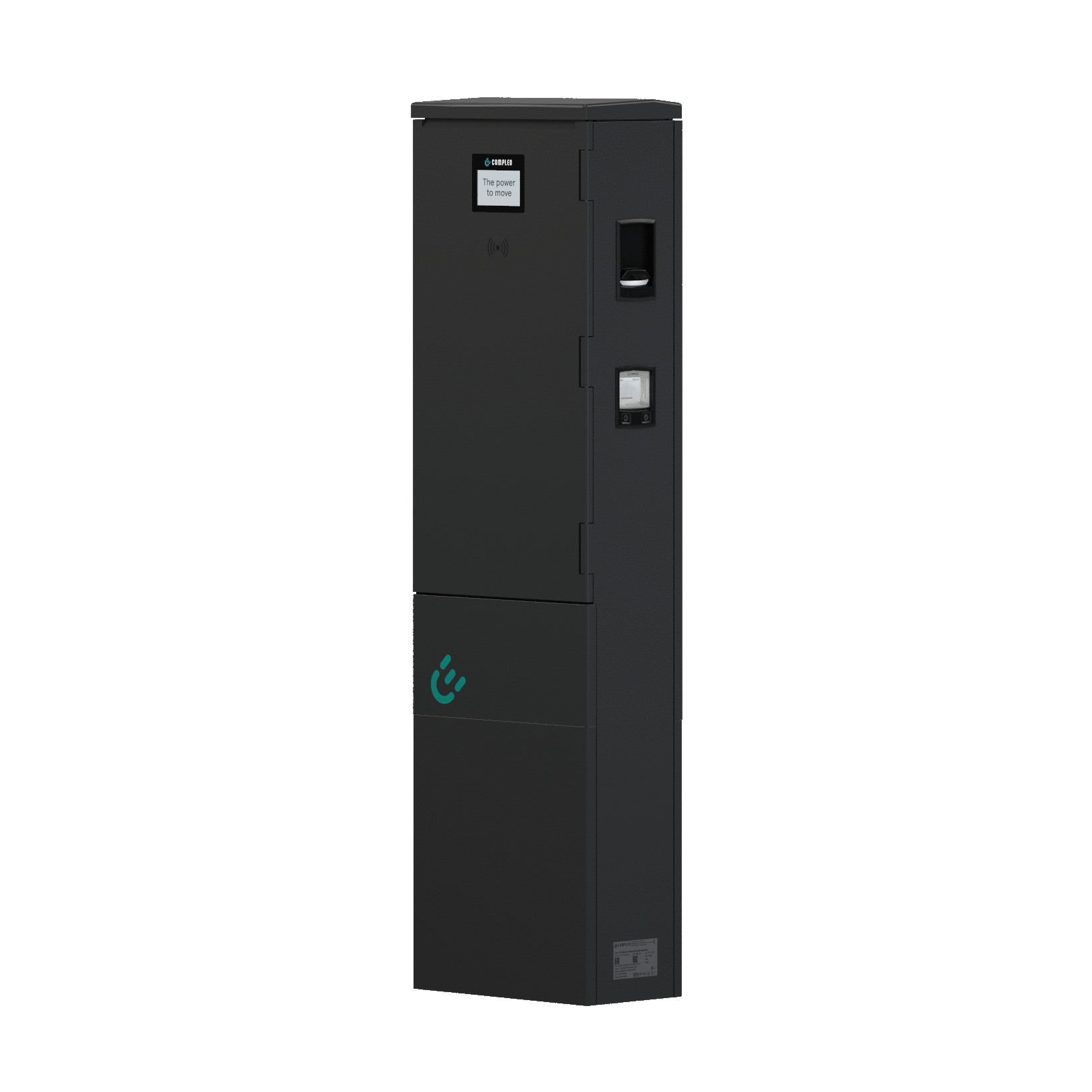

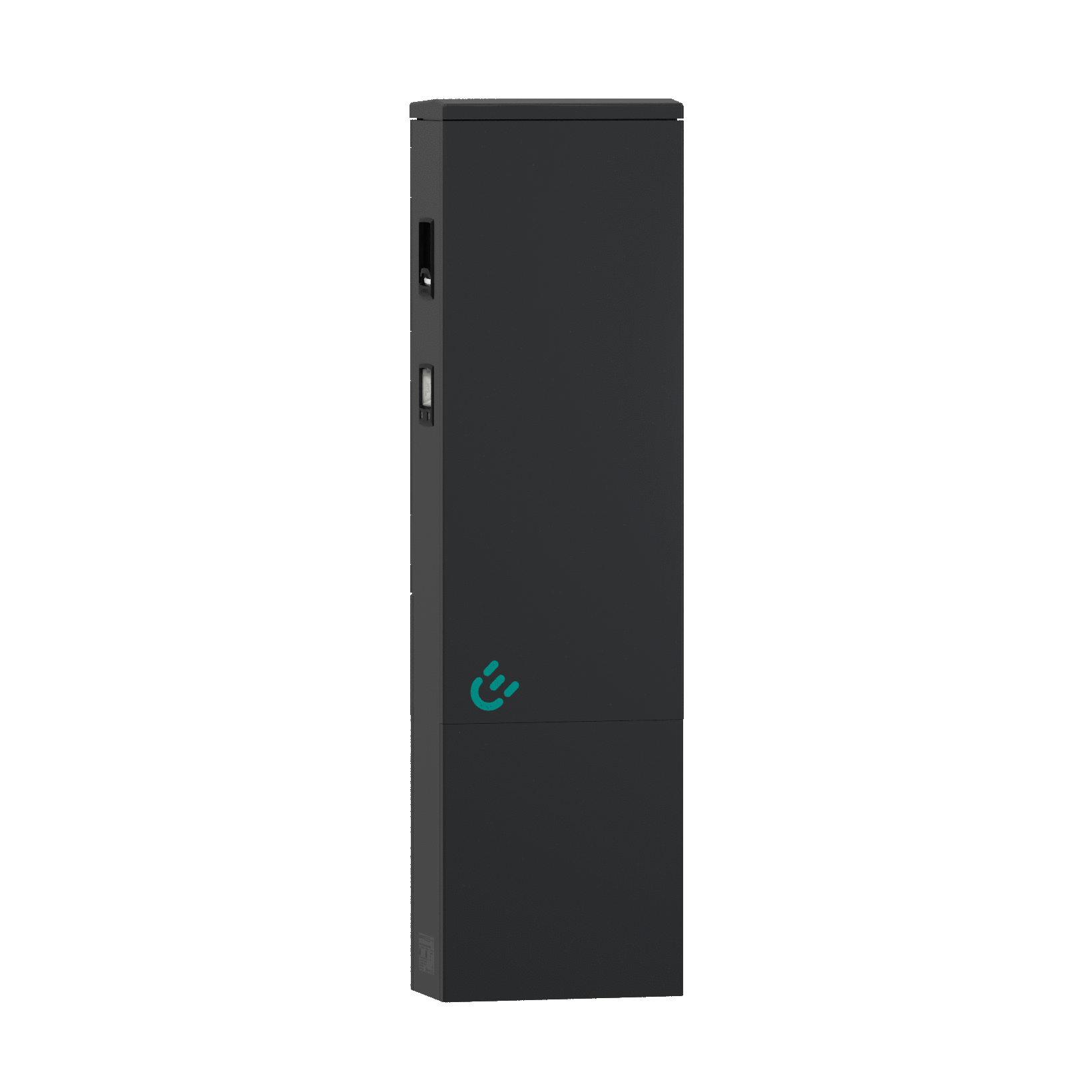

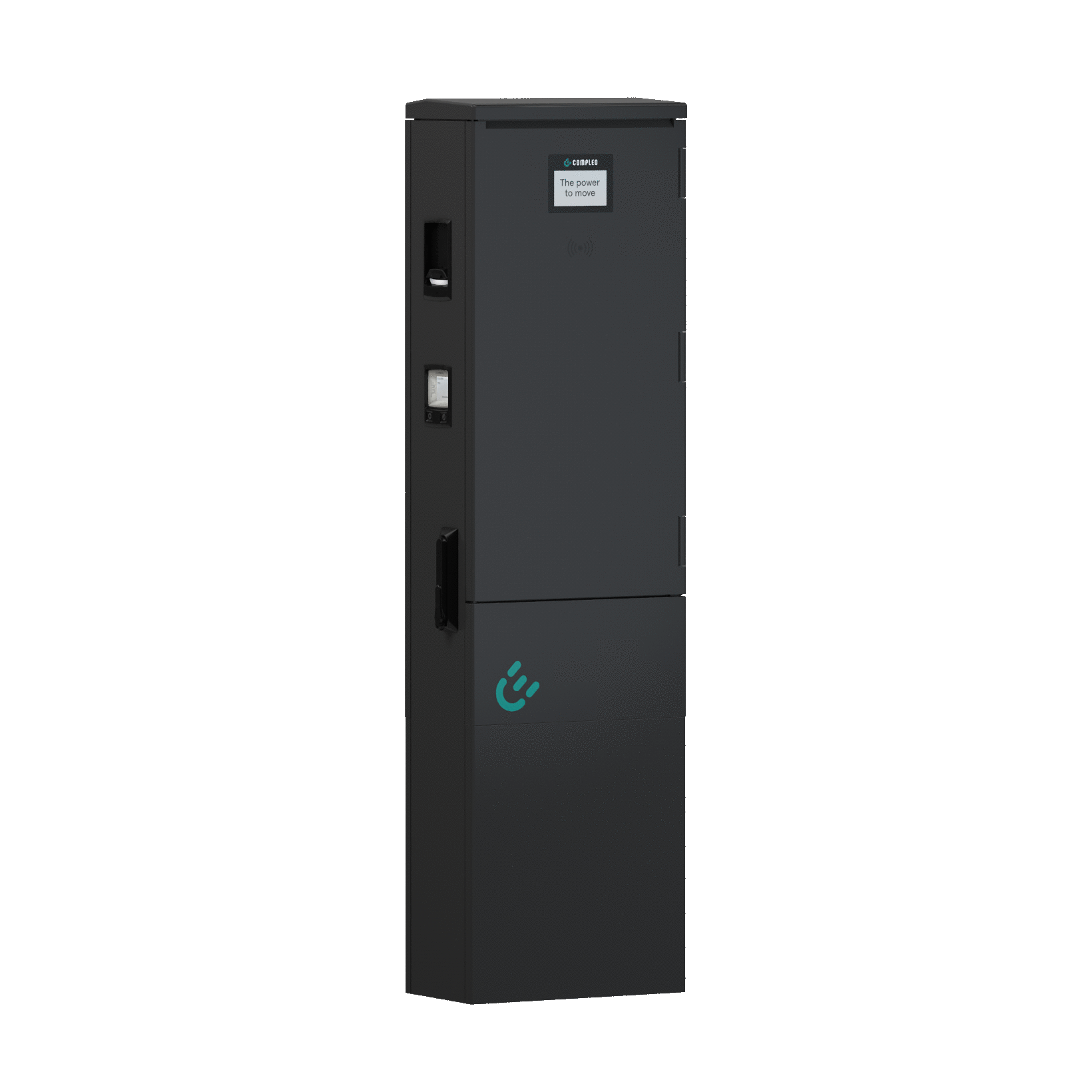

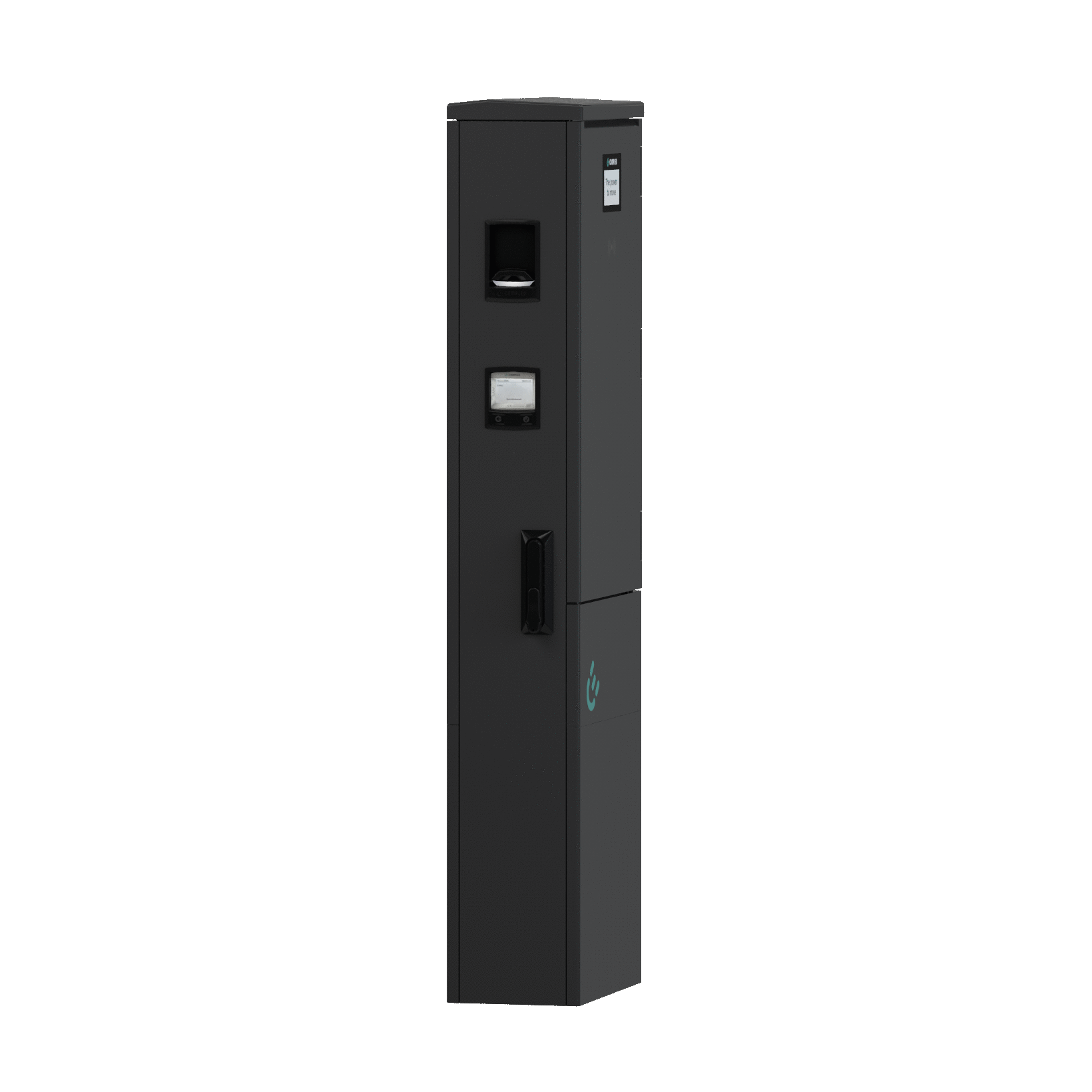

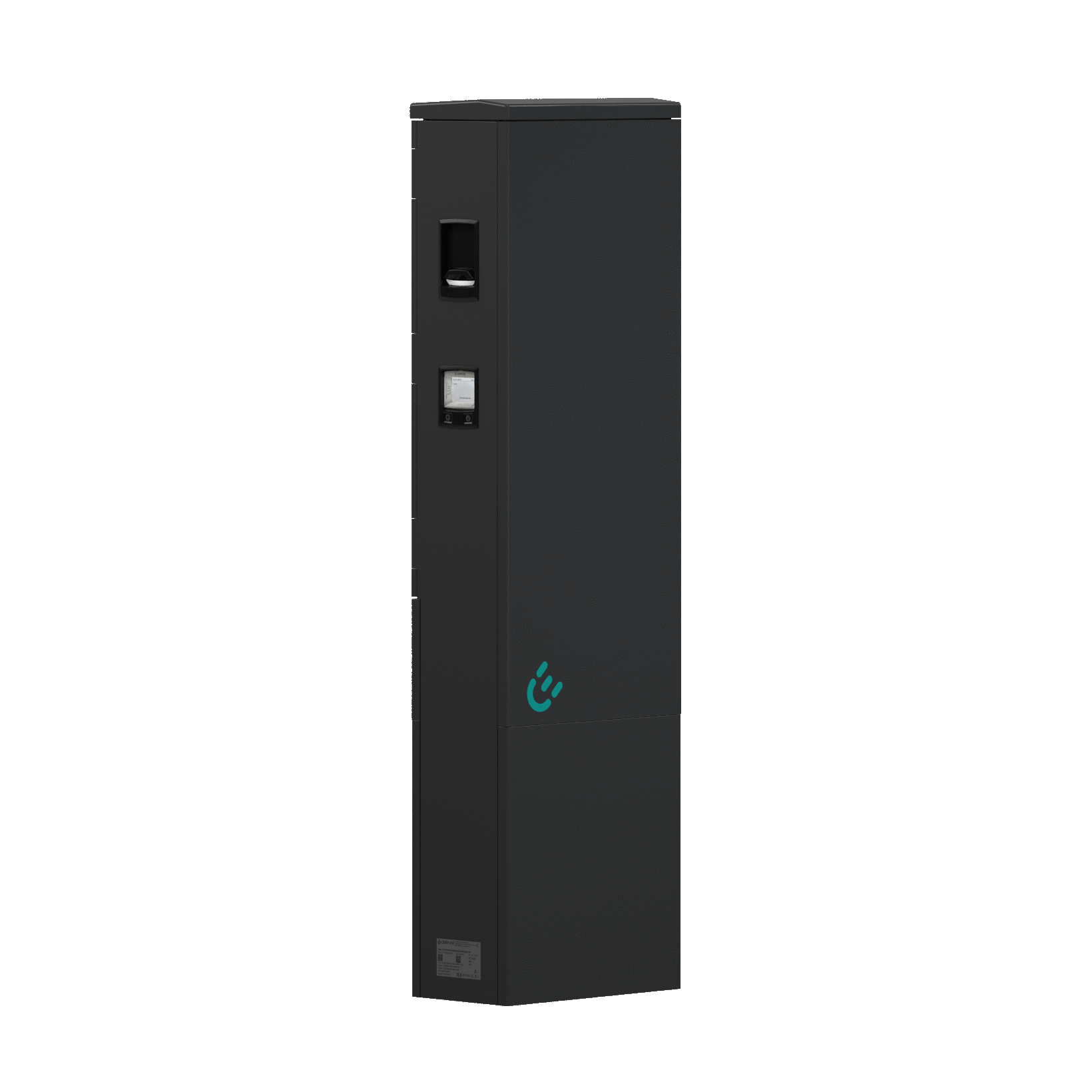

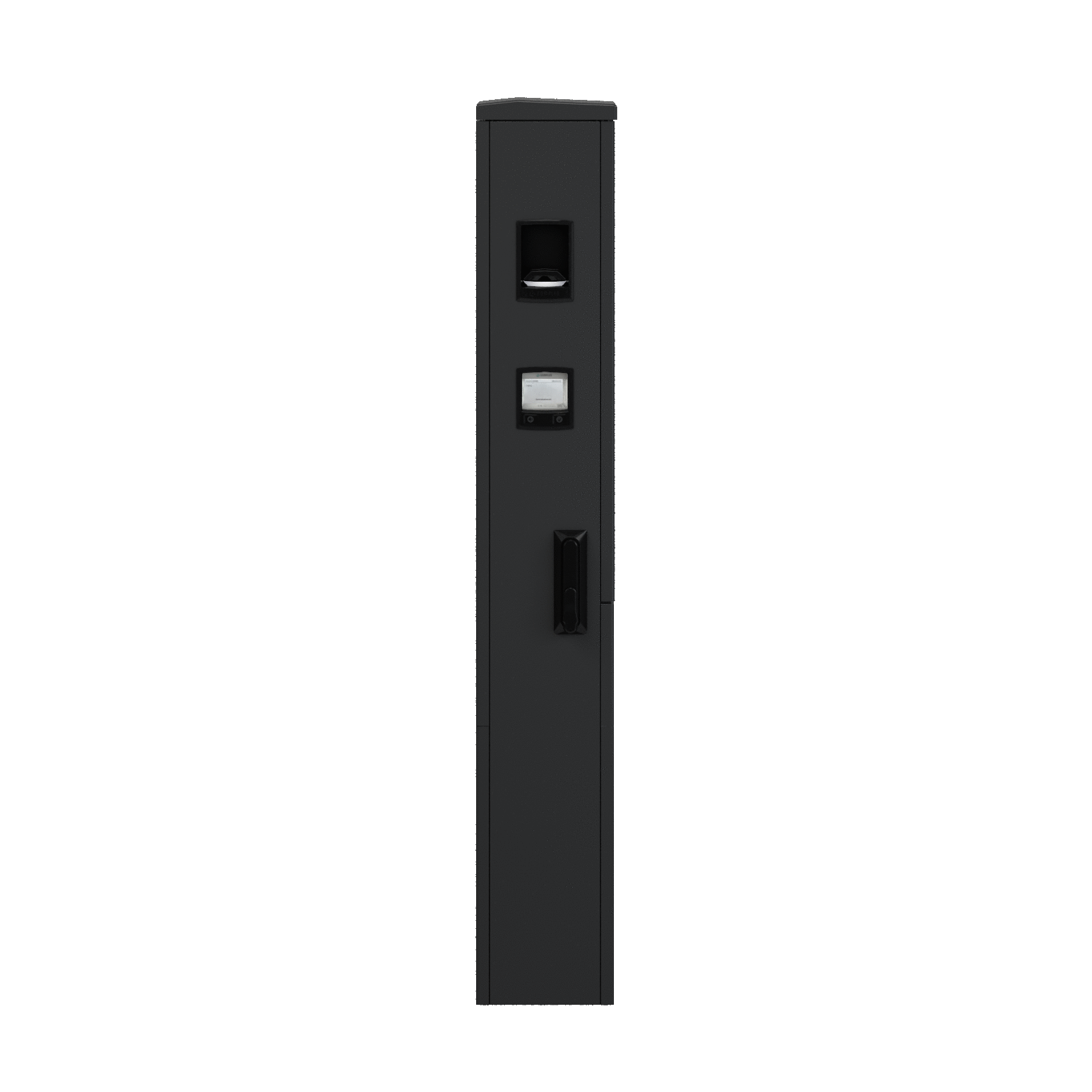

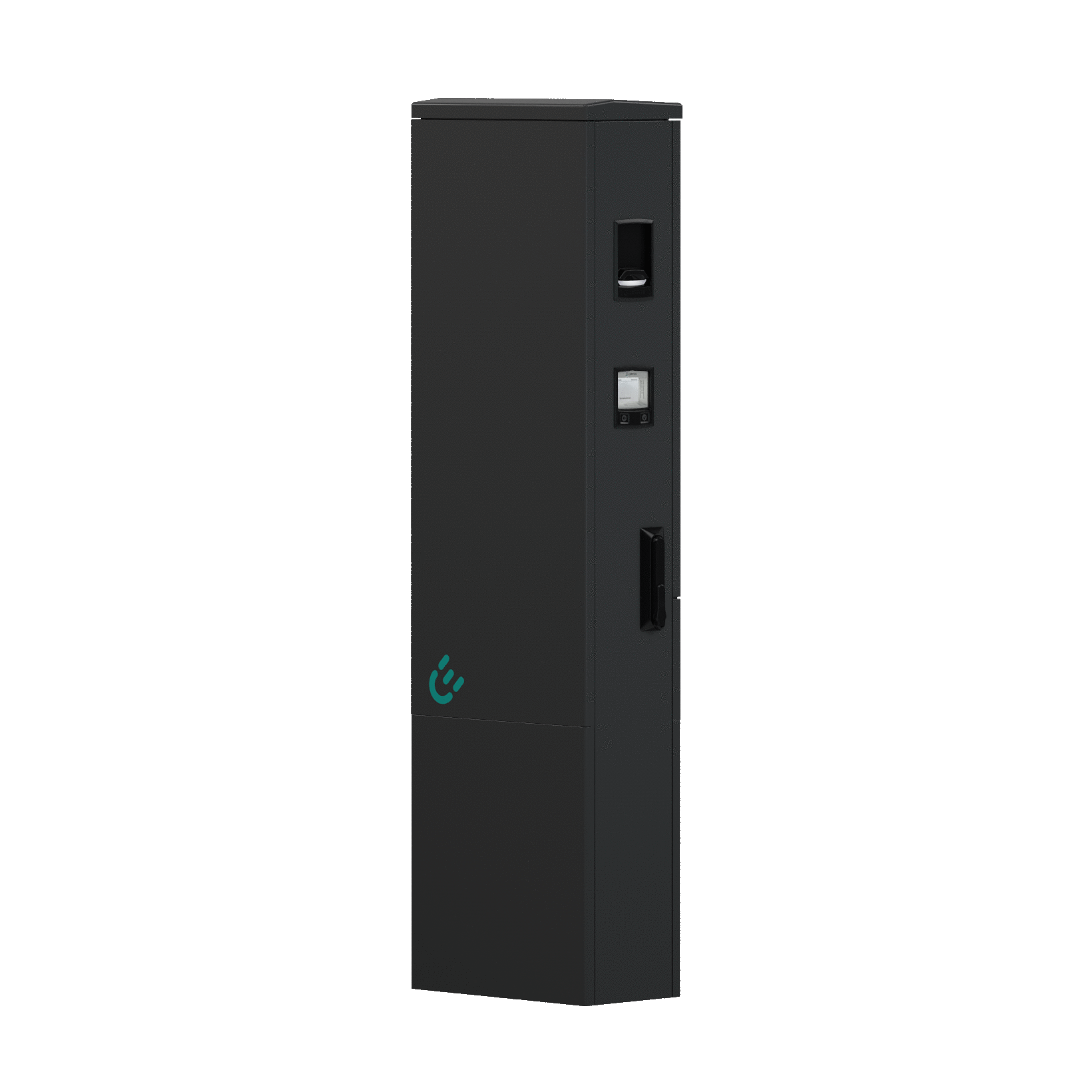

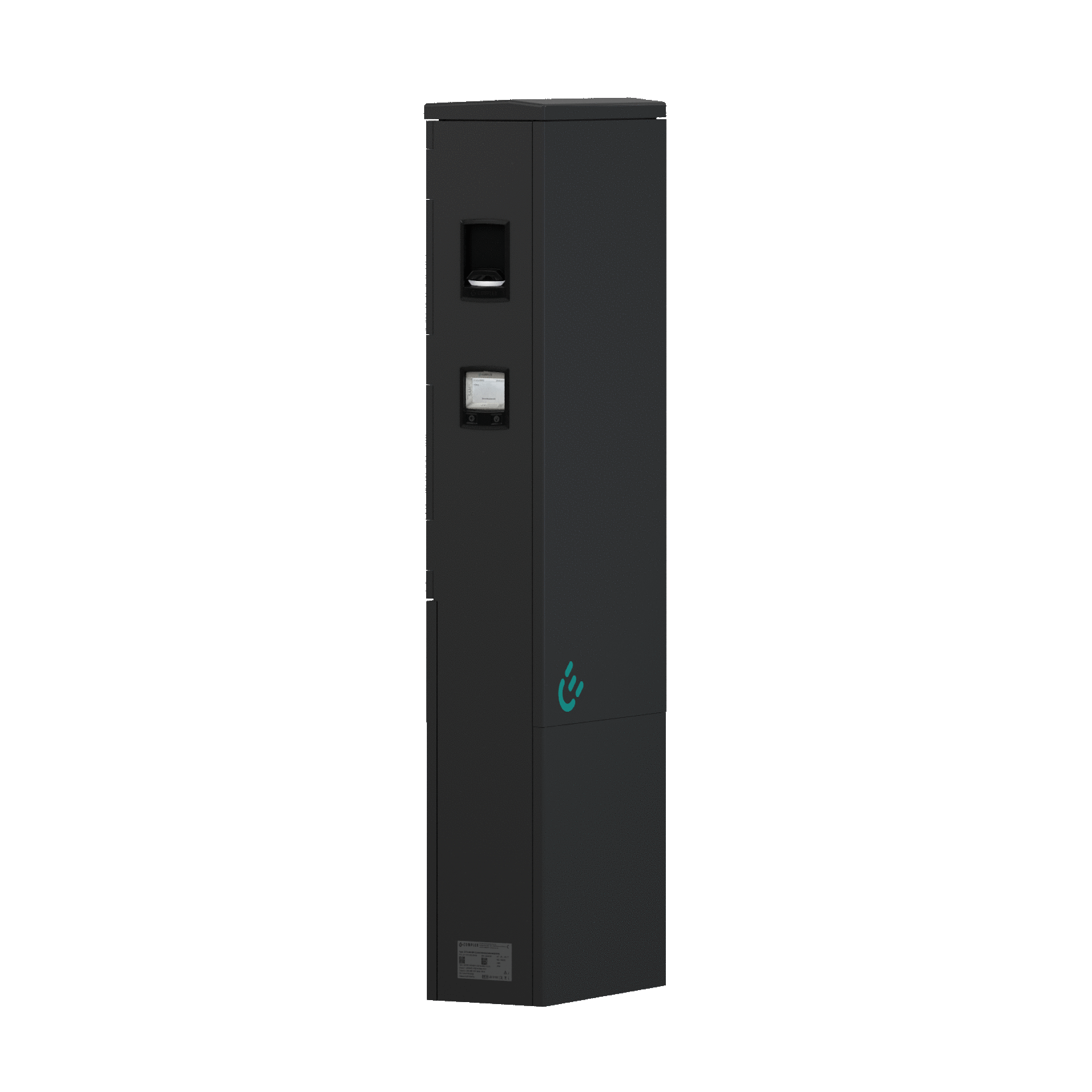

The DUO is the pioneer for all situations. All components are already integrated into this all-in-one charging station. This saves installation and operating costs – year after year.
Compliant with German calibration law
Per Wellton
Key Account Manager
Niclas Gustafsson
Key Account Manager
Lotta Fransén
Key Account Manager
In addition maximum transparency for billing, the DUO focuses on high efficiency in terms of construction and running costs. It is outstanding for its particularly durable housing that will never rust. Perfect for professional use. Easy handling and versatile activation options ensure the best charging experience for all users.

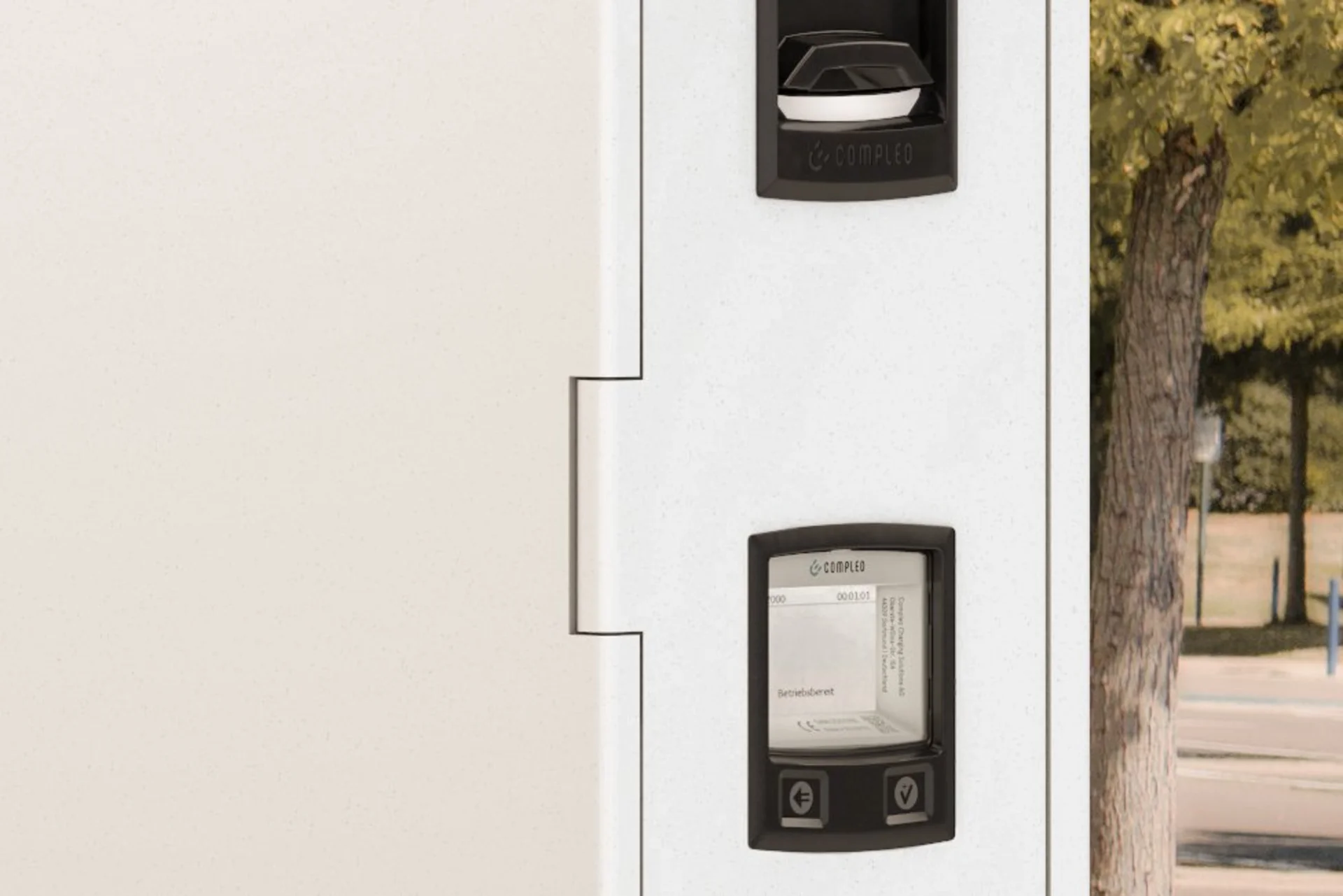

The integrated Service RCD is particularly innovative. This is a resettable residual current circuit breaker with a self-test function. If the RCD is triggered once by a vehicle, the next user can reset the Service RCD by pushing up the sliding cover. And its self-test function allows the DUO to trigger the RCD independently. The next time the sliding cover is pushed up, it is switched on again, which means that the prescribed RCD test is carried out automatically. The test interval can be configured by the CPO via Ducto and the desired test time is stored directly in Ducto when the charging station is configured. Simply documented in your backend and in Ducto - without manual entry.
The DUO can be controlled from any IT backend and provides calibration law-compliant metering via SAM module. Thanks to SAM technology, the user can monitor and check consumption without being connected to the IT backend.
| Provider | Controller P4 | Constroller P5 | OCPP 1.6 |
| ACEA | x | x | Yes |
| Allego | x | - | Yes |
| Ampeco | x | x | Yes |
| be.energised | x | x | Yes |
| chargecloud | x | x | Yes |
| clever | x | x | No |
| comfortcharge | x | - | Yes |
| Compleo Enterprise | x | x | Yes |
| driivz | x | x | Yes |
| E.ON | x | x | Yes |
| Ecards ESB | x | - | Yes |
| eCarOC | x | x | Yes |
| eCarUp | x | x | Yes |
| Elaad | x | - | Yes |
| electromaps | x | x | Yes |
| Elli | x | - | Yes |
| eneco | x | - | Yes |
| Enio | x | - | Yes |
| eOperate | x | x | Yes |
| Etrel | - | x | Yes |
| Everon | x | x | Yes |
| Frauenhofer Stuttgart | x | - | No |
| Freshmile | x | - | Yes |
| Greenflux | x | x | Yes |
| Grid&co | x | - | Yes |
| Ladenetz/Smartlab (former Lisy) | x | x | Yes |
| LastMileSolutions | x | - | Yes |
| Mer (former Gronn Kontakt) | x | - | No |
| Monta | x | x | Yes |
| Powerdale | x | - | No |
| Robotron | - | x | No |
| SAP e-Mobility Product | - | x | Yes |
| Skidata | - | x | Yes |
| Smartics | x | - | Yes |
| Stromnetz Hamburg | x | x | Yes |
| Swisscharge | x | x | Yes |
| TCC (GLS Mobility) | x | x | Yes |
| TheNewMotion | x | x | Yes |
| Ultima Payments | - | x | No |
| Vattenfall | x | - | Yes |
| Virta | x | x | Yes |
| Vlotte | x | x | Yes |
DUO
|
DUO fleet
|
|
| Maximum charging power per charging point | 11/22 kW | 22 kW: type 2 socket; 11 kW: type 2 spiral lead; configurable |
| Number of charging points | 2 | 2 |
| Charging connector | 2x type 2 socket, incl. sliding cover; optional 2x type 2 spiral lead (6.5 m) | 2x type 2 socket, incl. sliding cover; optional 2x type 2 spiral lead (6.5 m) |
| Compliant with calibration law | 2x MID-compliant smart meter; optional with SAM® storage and display module | 2x MID-compliant smart meter; optional with SAM® storage and display module |
| Protection | 2x RCD type A; 2x DC residual current detection 6 mA; 2x circuit breaker C20 3P or C40 3P; 1x circuit breaker B16 1P | 2x RCD type A; 2x DC residual current detection 6 mA; 2x circuit breaker C20 3P or C40 3P; 1x circuit breaker B16 1P |
| Communication interface to IT backends | OCPP 1.6 JSON | OCPP 1.6 JSON |
| Authorisation | Free charging, RFID, smartphone app, Giro-e able | Free charging, RFID, smartphone app, Giro-e able |
With Compleo’s comprehensive documentation, planning to install the perfect charging system is easy. Put together your customised charging solution by simply selecting the charging station and accessories that best meet your needs.
