360°

SOLO Premium line

AC wall box
All-inclusive wallbox simplifies installation and service

Up to 22 kW of charging power (AC)

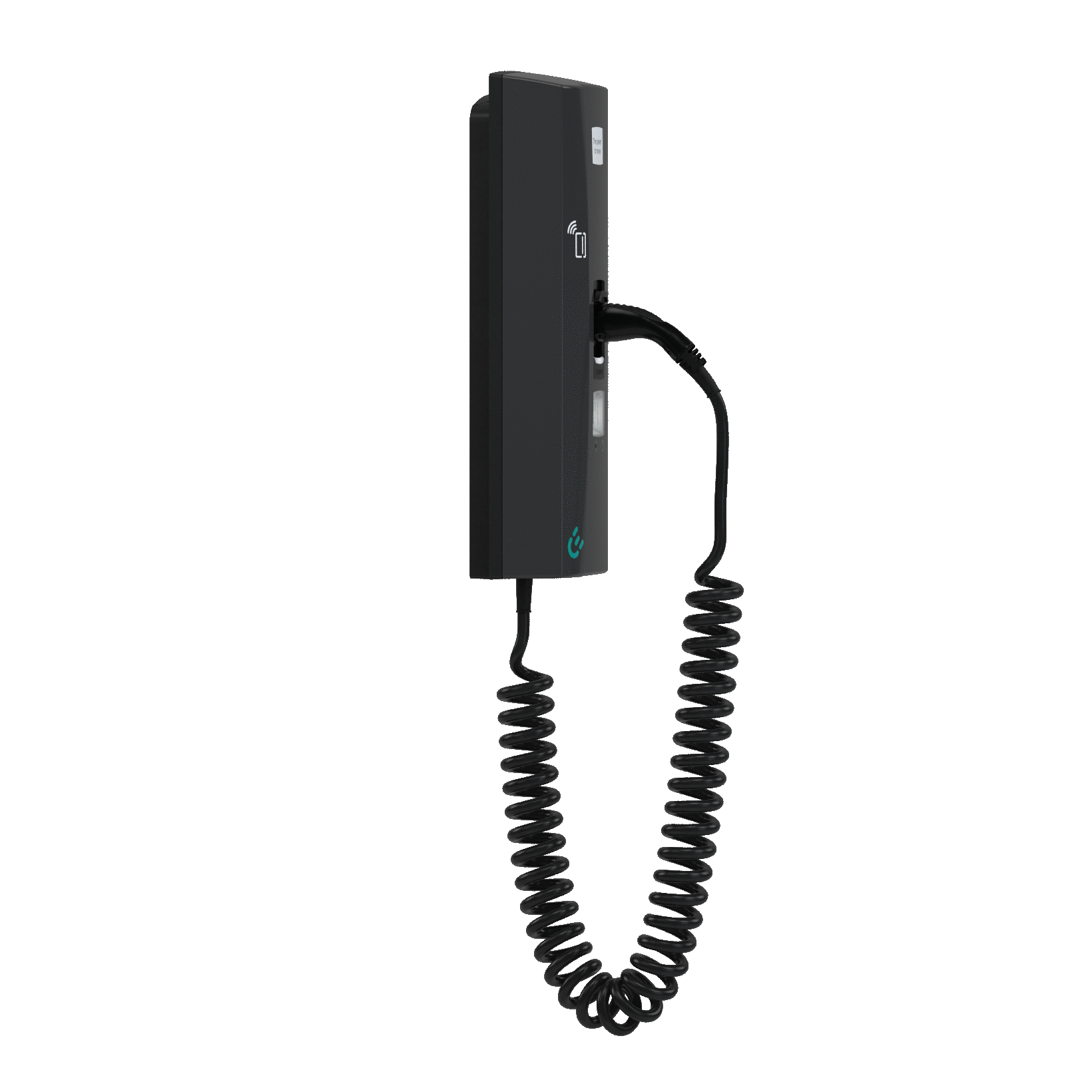

The SOLO Premium line is particularly efficient both during installation and in long-term operation. This is because the SOLO Premium line focuses on a simple installation concept and high safety. The 3.5'' graphic display makes it ideal wherever you want to show the user more information on the charging process. The SOLO is available with a type 2 socket (22 kW) or optionally with a type 2 spiral cable (11 kW) and is very convenient to use.

  • Integrated overvoltage protection and RCD 

  • Cost-efficient operation with Service RCD

  • Bright 3.5'' display

  • Compliant with German calibration law

Contact us

Are you interested in finding out more? - Feel free to contact one of our experts

Johan Nordgaard
Key Account Manager

+46 70-678 41 22
johan.nordgaard@compleo-cs.com

Per Wellton
Key Account Manager

+46 70-699 02 06
per.wellton@compleo-cs.com

Niclas Gustafsson
Key Account Manager

+46 70-431 30 82
niclas.gustafsson@compleo-cs.com

Solo mounted in an office car park
Loading...

The highest degree of safety combined with the lowest operating costs

The SOLO is the first wallbox to integrate all protective components in one housing. Both a type A residual current circuit breaker and type 2/3 overvoltage protection in accordance with DIN EN 61643-11 are included in addition to the DC residual current detection installed as standard. This saves valuable installation time and costs as well as space on the electrical distribution board. 

The integrated Service RCD is particularly innovative. This is a resettable residual current circuit breaker with a self-test function. If the RCD is triggered once by a vehicle, the next user can reset the Service RCD by pushing up the sliding cover. Good for the operator. And its self-test function allows the SOLO to trigger the RCD independently. The next time the sliding cover is pushed up, it is switched on again, which means that the prescribed RCD test is carried out automatically. The test interval can be configured by the CPO via Ducto and the desired test time is stored directly in Ducto when the charging station is configured. Simply documented in your backend and in Ducto - without manual entry.

Loading...
Bright display for user information
Loading...
Cost-efficient operation with Service RCD
Loading...
Onboard load management included
Loading...

Precise functionality – with any IT backend

The SOLO can be controlled from any IT backend and provides calibration law-compliant metering via SAM© module. SAM© technology enables the user to monitor and check consumption without being connected to the IT backend.



Solo mounted in front of an apartment building
Loading...

Load management already included

The SOLO offers a convenient load management feature: without additional hardware or software costs. Local load management brings advantages for locations with several wallboxes. Configuration is simple via the Ducto web interface and can be combined in a cluster with charging points from the DUO and DUO ims products. Even mixed AC and DC locations with additional CITO 500 and eTowers 200 can use Compleo's onboard load management. Simply divide a fixed power value evenly or according to defined priorities among the charging vehicles. This means charge point operators can avoid excessive grid expansion costs, prevent blackouts and set priorities.



Loading...
Pole 1p: Robust and quickly mounted
Loading...
Pole 2p: Cost effective for two charging points
Solo wallbox with QR code display
Loading...

QR code display coming soon

The Alternative Fuels Infrastructure Regulation , AFIR for short, demands from CPOs in the European Union to enable direct payment at all public charging points below 50 kW - for example via a "specific" QR code. This means that at least one individual code must be displayed for each charge point ID. Compleo clearly recommends showing the QR code on a display in accordance with the AFIR. This is particularly effective in preventing phishing attempts! The SOLO has a bright 3.5'' display for this purpose. The appropriate firmware for importing the QR codes via your backend will be available from 07/2024 - even for easy updates of already installed SOLOs.

Backends with successful integration of the SOLO

List of compatible backends

Provider

Controller
P5

OCPP
1.6

ACEA

x

Yes

Ampeco

x

Yes

be.energised

x

Yes

chargecloud

x

Yes

Compleo Enterprise

x

Yes

driivz

x

Yes

E.ON

x

Yes

eCarOC

x

Yes

eCarUp

x

Yes

electromaps

x

Yes

eOperate

x

Yes

Everon

x

Yes

Greenflux

x

Yes

Ladenetz/Smartlab (former Lisy)

x

Yes

Monta

x

Yes

Roberton

x

Yes

SAP e-Mobility Product

x

Yes

Skidata

x

Yes

Smatrics

x
(ok for operations)

Yes

Spirii

x

Yes

Stromnetz Hamburg/eRound

x

Yes

Swisscharge

x

Yes

TCC (GLS Mobility)

x

Yes

TheNewMotion

x

Yes

Ultima Payments

x

No

Virta

x

Yes

Vlotte

x

Yes

Compare our charging solutions



SOLO Premium line

eBOX professional
Maximum charging power per charging point 11/22 kW 22 kW
Number of charging points 1 1
Charging connector Type 2 socket, incl. sliding cover; optional type 2 spiral lead (6.5 m) Type 2 socket, optional type 2 charging lead (6.5 m)
Compliant with calibration law MID-compliant smart meter with SAM® storage and display module Optional: MID-compliant smart meter (included in calibration-law compliant version)
Protection RCD type A; DC residual current detection 6 mA; overvoltage protection in accordance with DIN EN 61643-11 DC residual current detection 6 mA
Communication interface to IT backends OCPP 1.6 JSON OCPP 1.6 JSON
Authorisation Free charging, RFID, smartphone app, optional: Giro-e Free charging, smartphone app (eCHARGE+ or third-party), RFID, Plug & Charge (ISO 15118)

Documents for download

With Compleo’s comprehensive documentation, planning to install the perfect charging system is easy. Put together your customised charging solution by simply selecting the charging station and accessories that best meet your needs.

Document Centre

Technical data
Accessories

Product name
SOLO advanced

Number of charging points
1

Charging connector
Type 2 socket, incl. sliding cover; or type 2 spiral lead (6.5 m)

Authorisation
Free charging, RFID, smartphone app, optional: Giro-e

Display
Size: 3.5’’ display

User Interface

Maximum charging output per charge point
22 kW: type 2 socket;
11 kW: type 2 spiral lead;
configurable

Nominal voltage, number of phases, nominal frequency
400 V; 3; 50 Hz

Maximum input current
16 A / 32 A per phase, configurable

Protection
RCD type A; DC residual current detection 6 mA; overvoltage protection type 2+3 compliant with DIN EN 61643-11

Protocols for communication with IT backends
OCPP 1.6 JSON

Meter / German calibration law
MID-compliant smart meter with SAM® storage and display module

Mounting type
Wall mounted (wm);
optional: Base mounted (bm)

Enclosure material
Thermoplastic resin

IP protection class
IP54

Impact resistance
IK08

Weight
Approx. 8 kg, depending on added options

Lock
Locking cylinder

Environmental operating temperature
-25 °C to +40 °C

Approvals
CE, RoHS, REACH, GPSD, WEEE

Standards
DIN EN 61851-1;
DIN IEC/TS 61439-7

Dimensions (HxWxD)
Wall mounted version: 660 x 250 x 150 mm

SMC base
For pole
