DC charging stations
Fast and precise – both are possible at the same time
Up to 50 kW/22 kW of charging power (DC & AC)

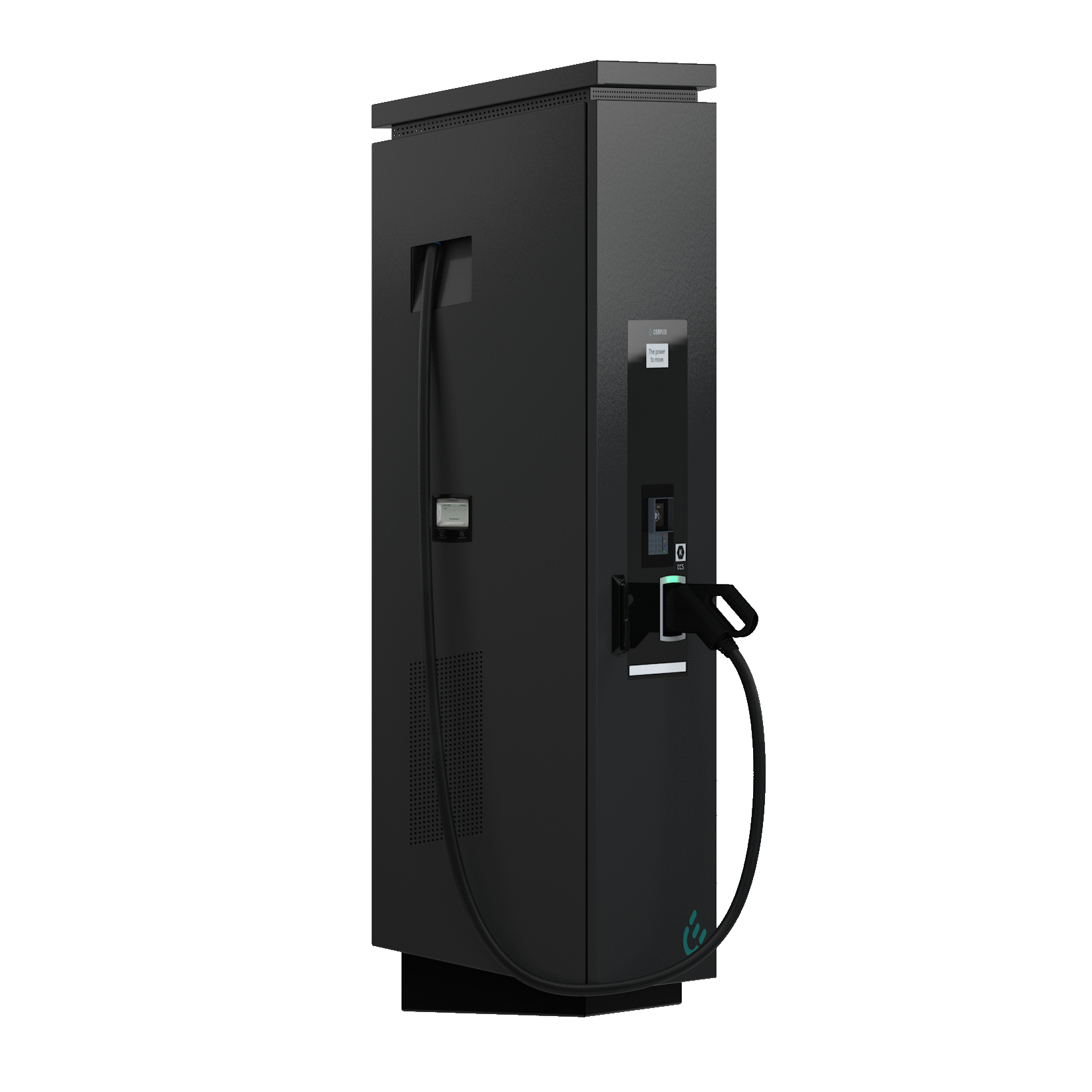

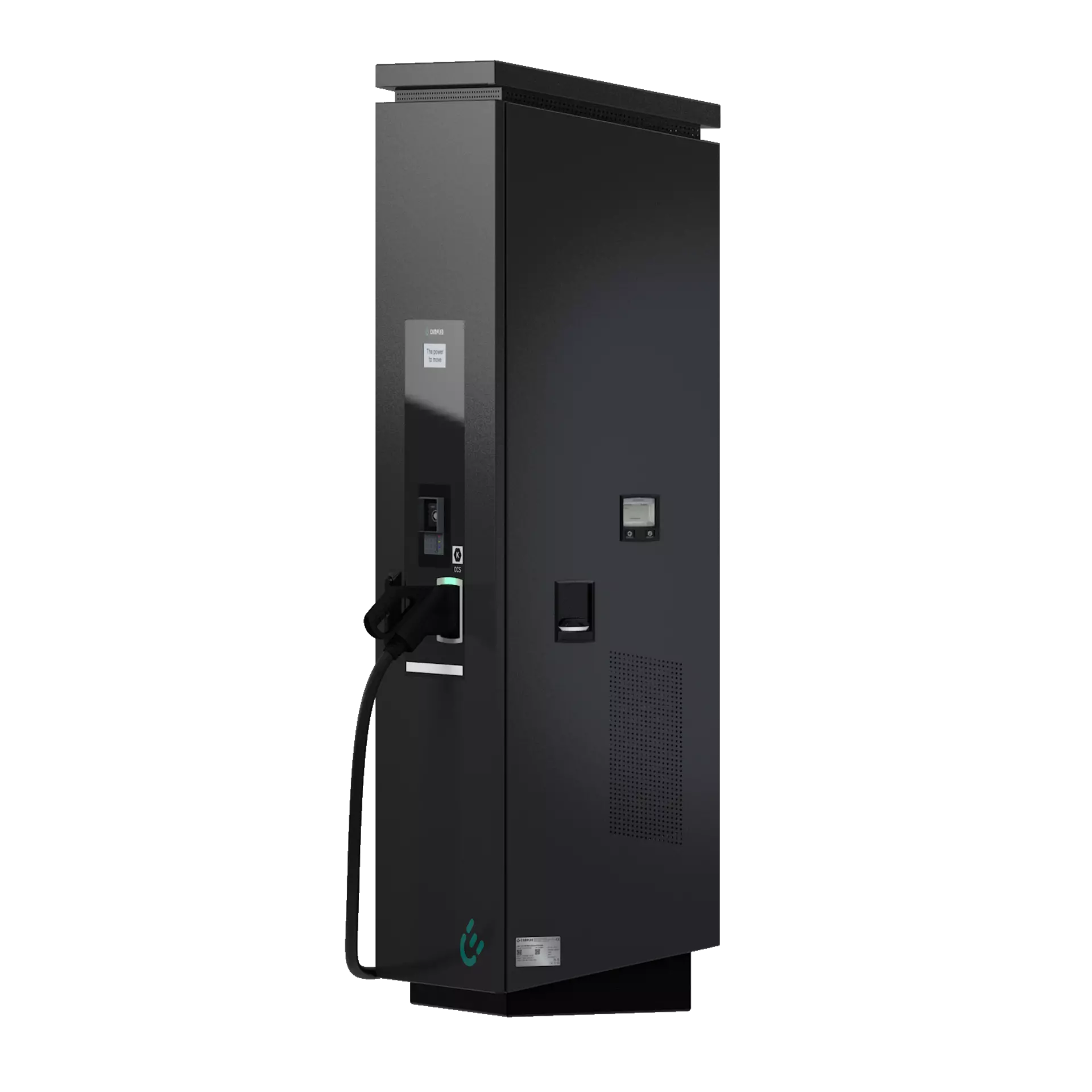

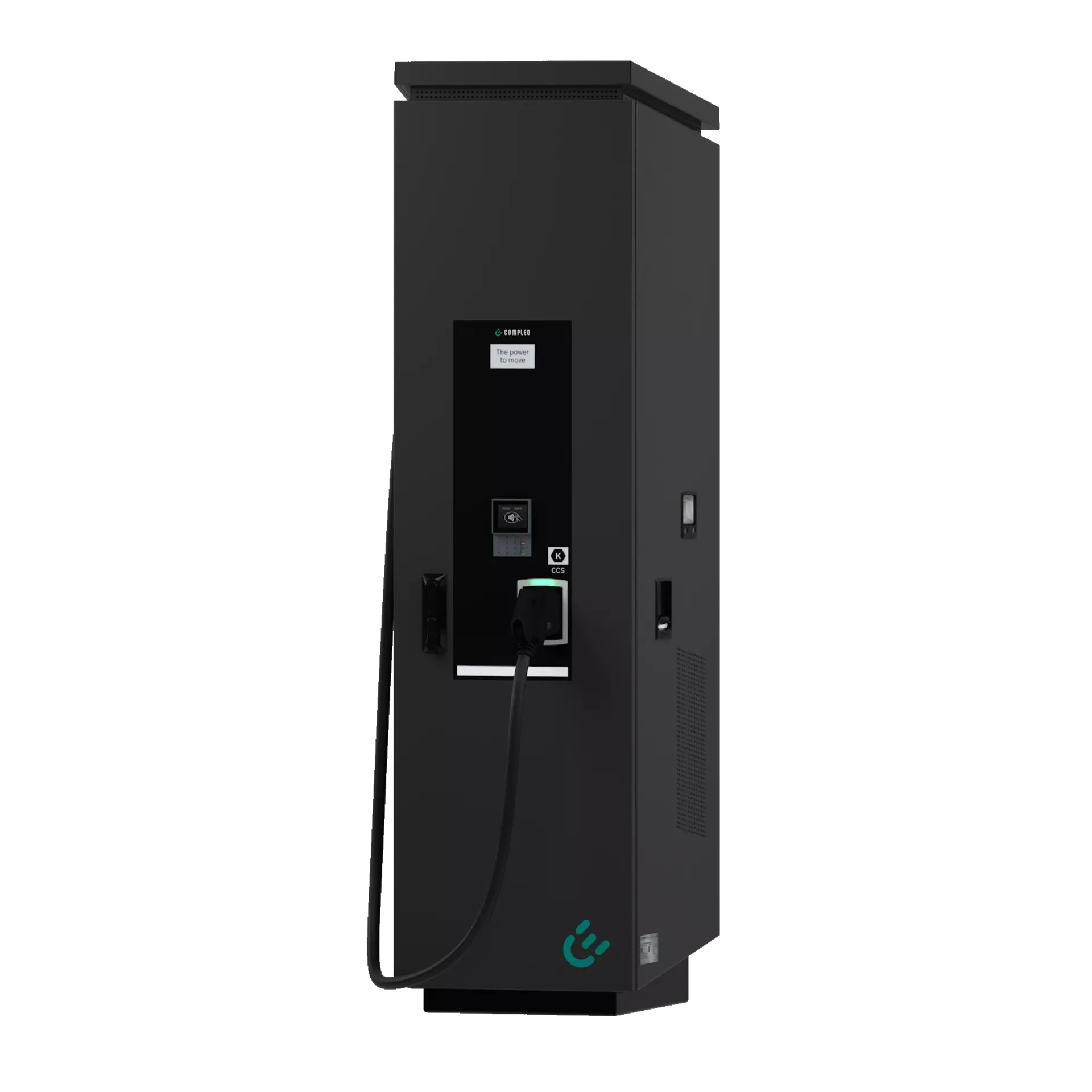

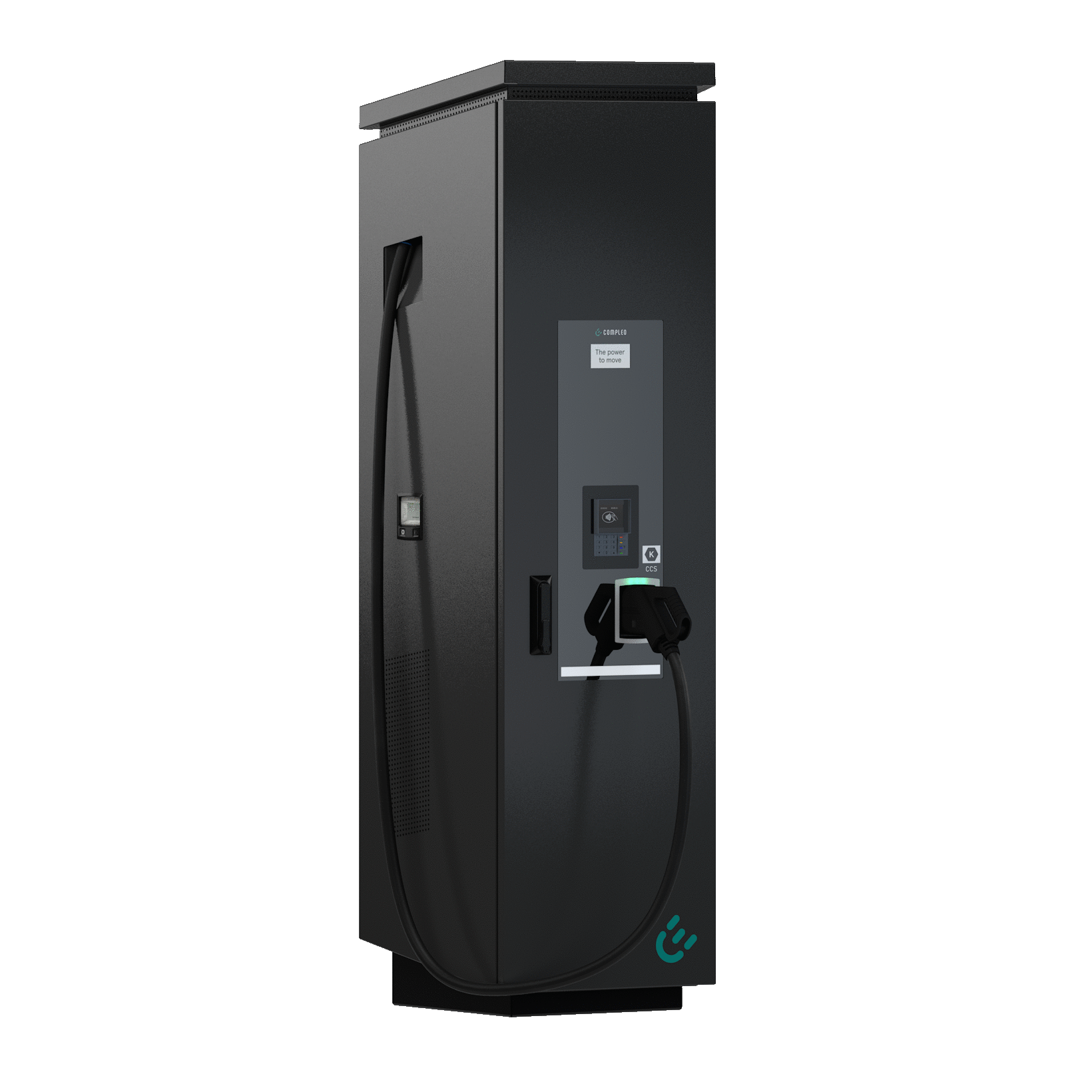

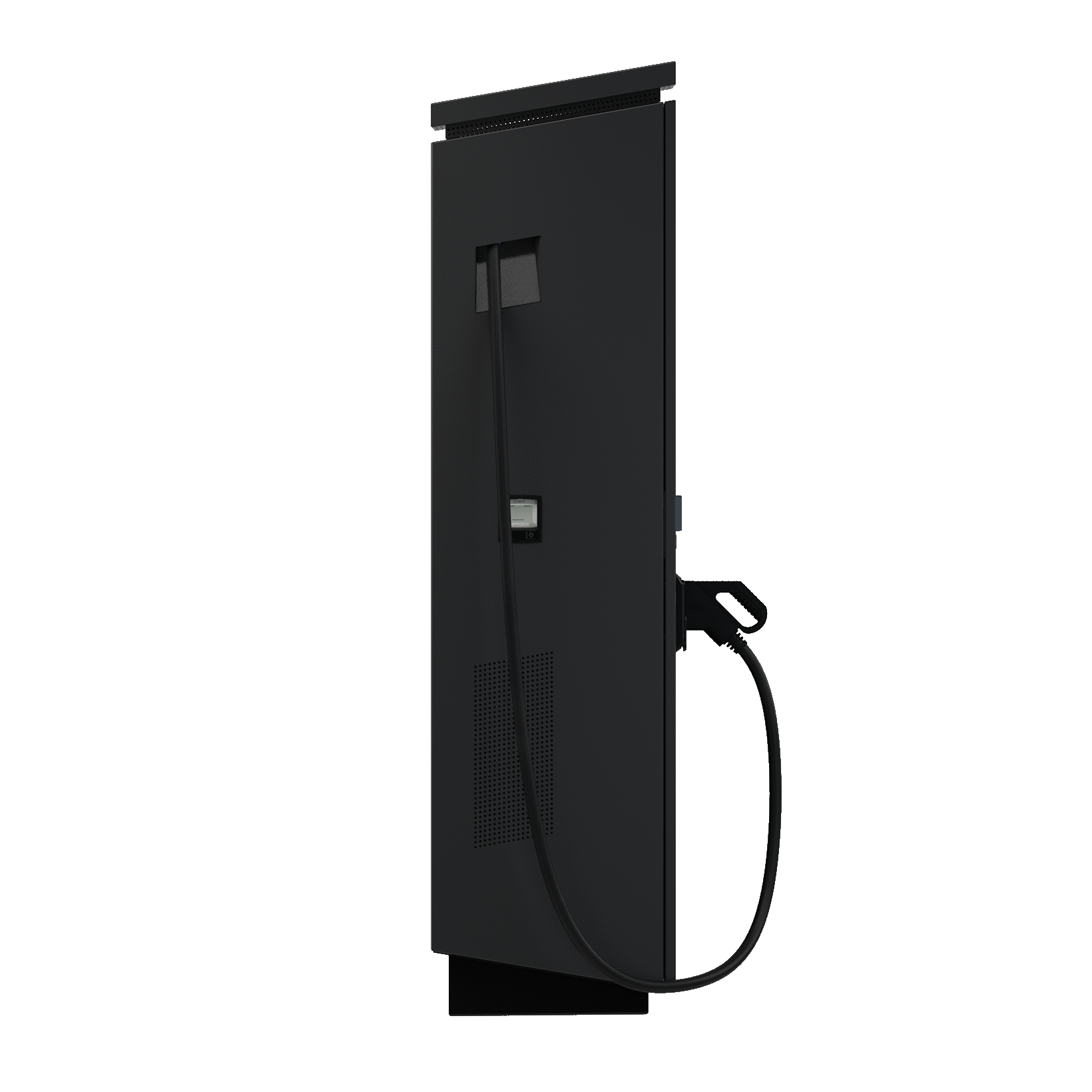

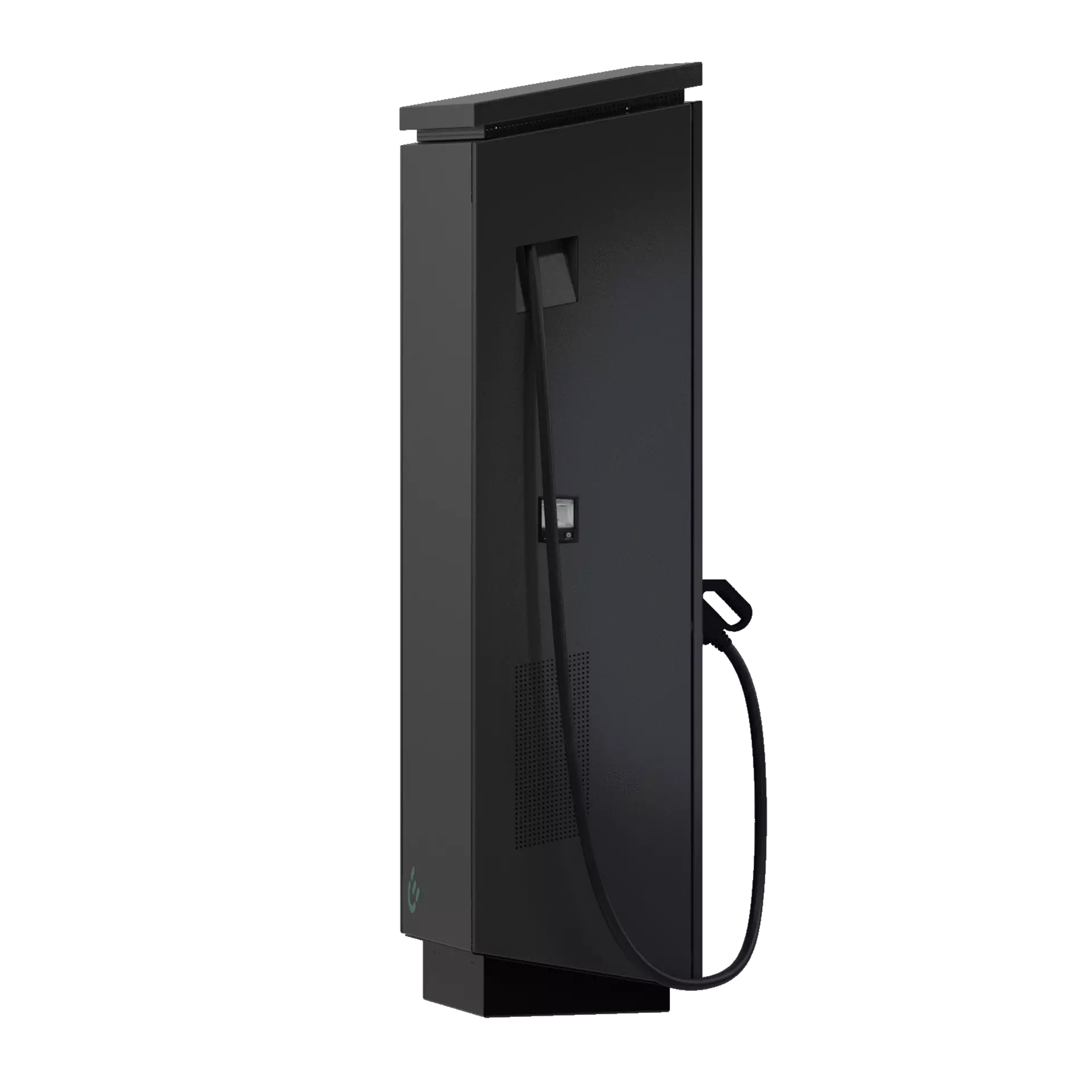

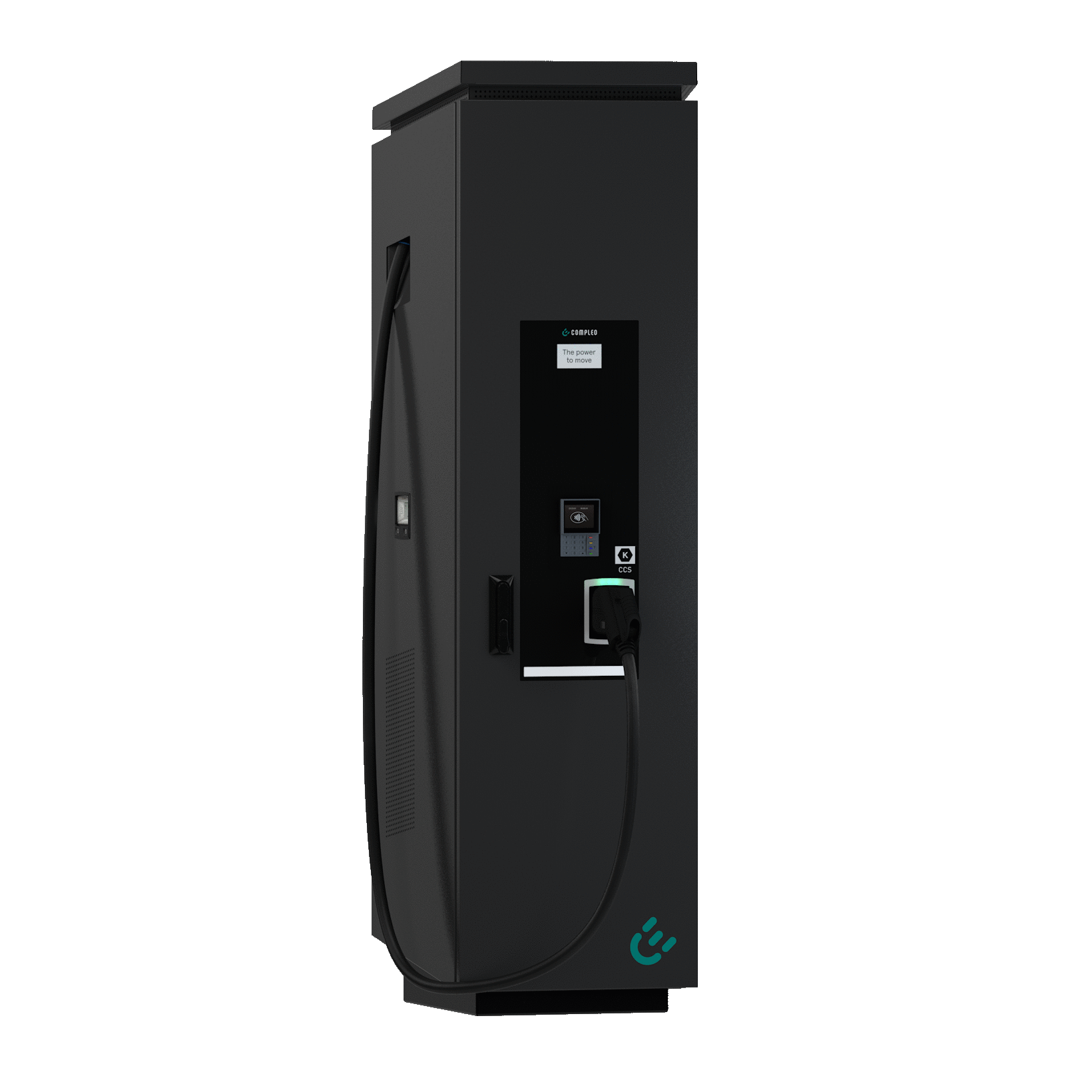

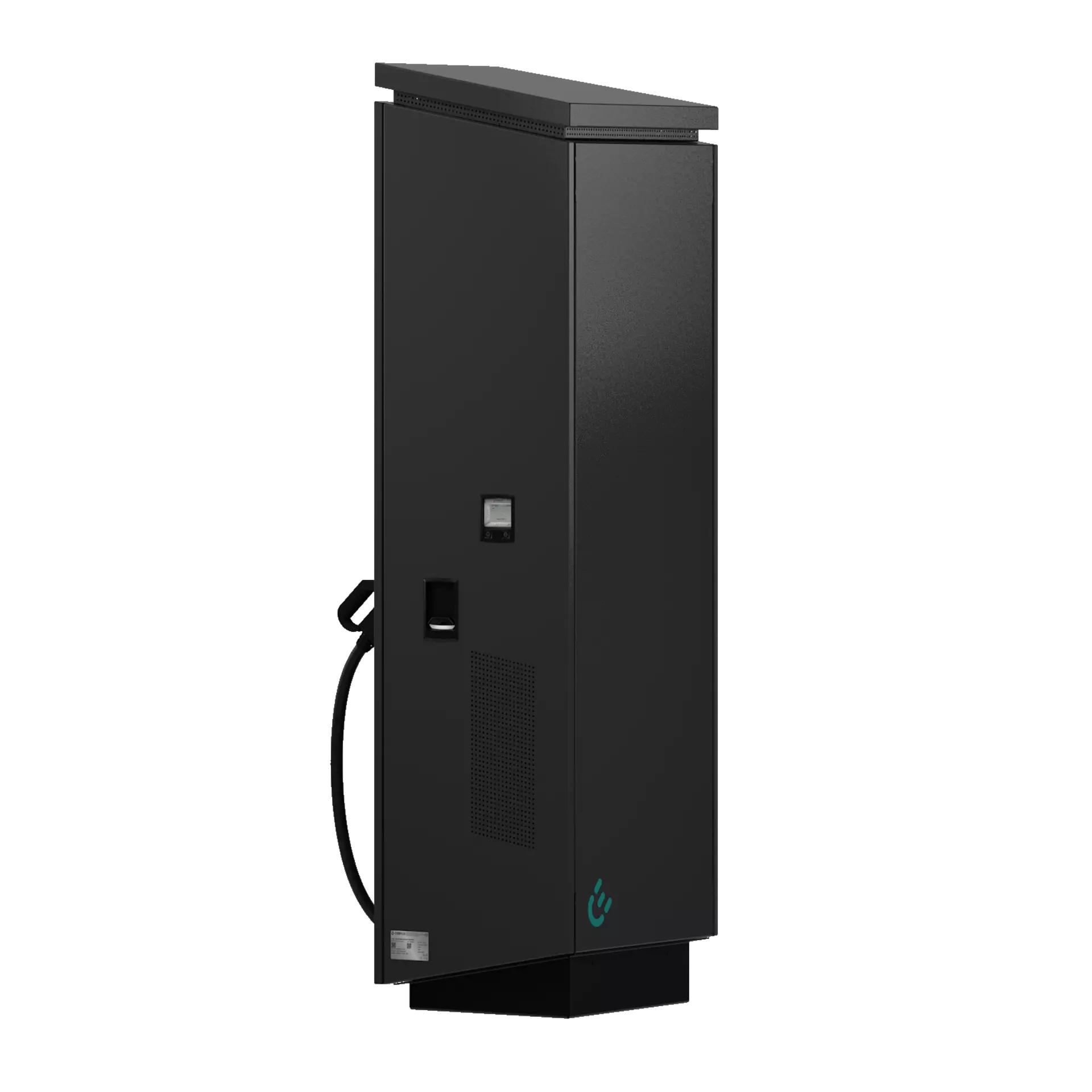

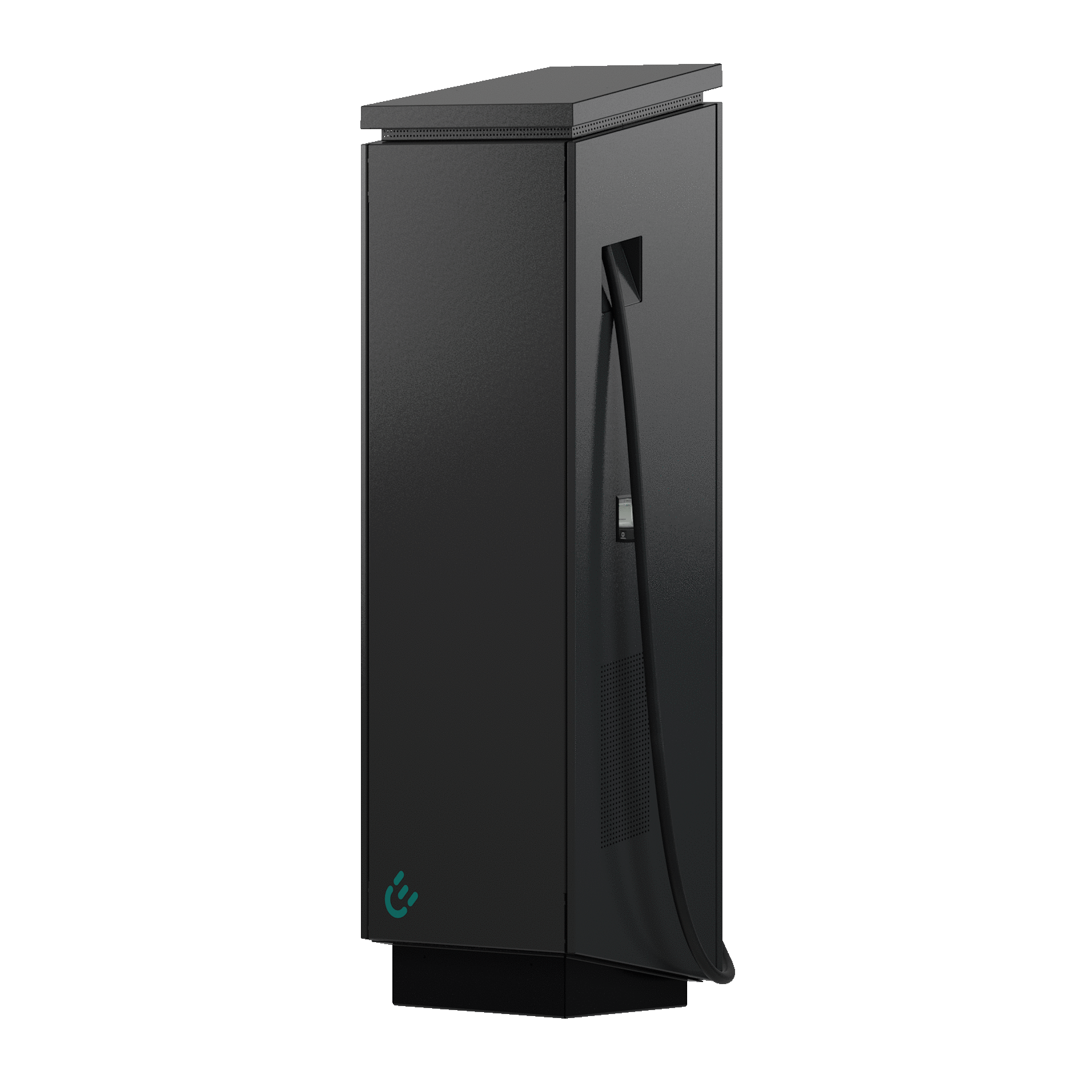

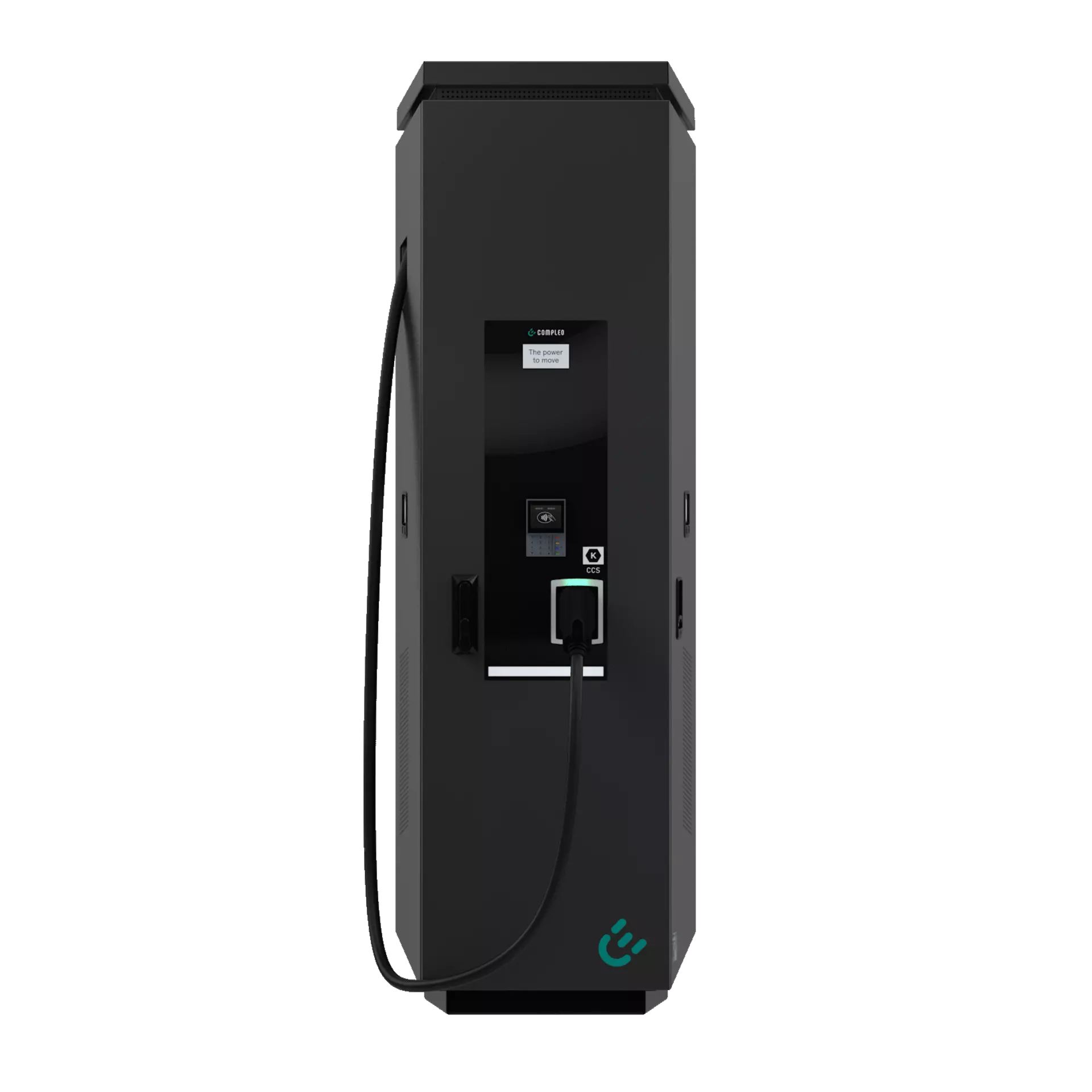

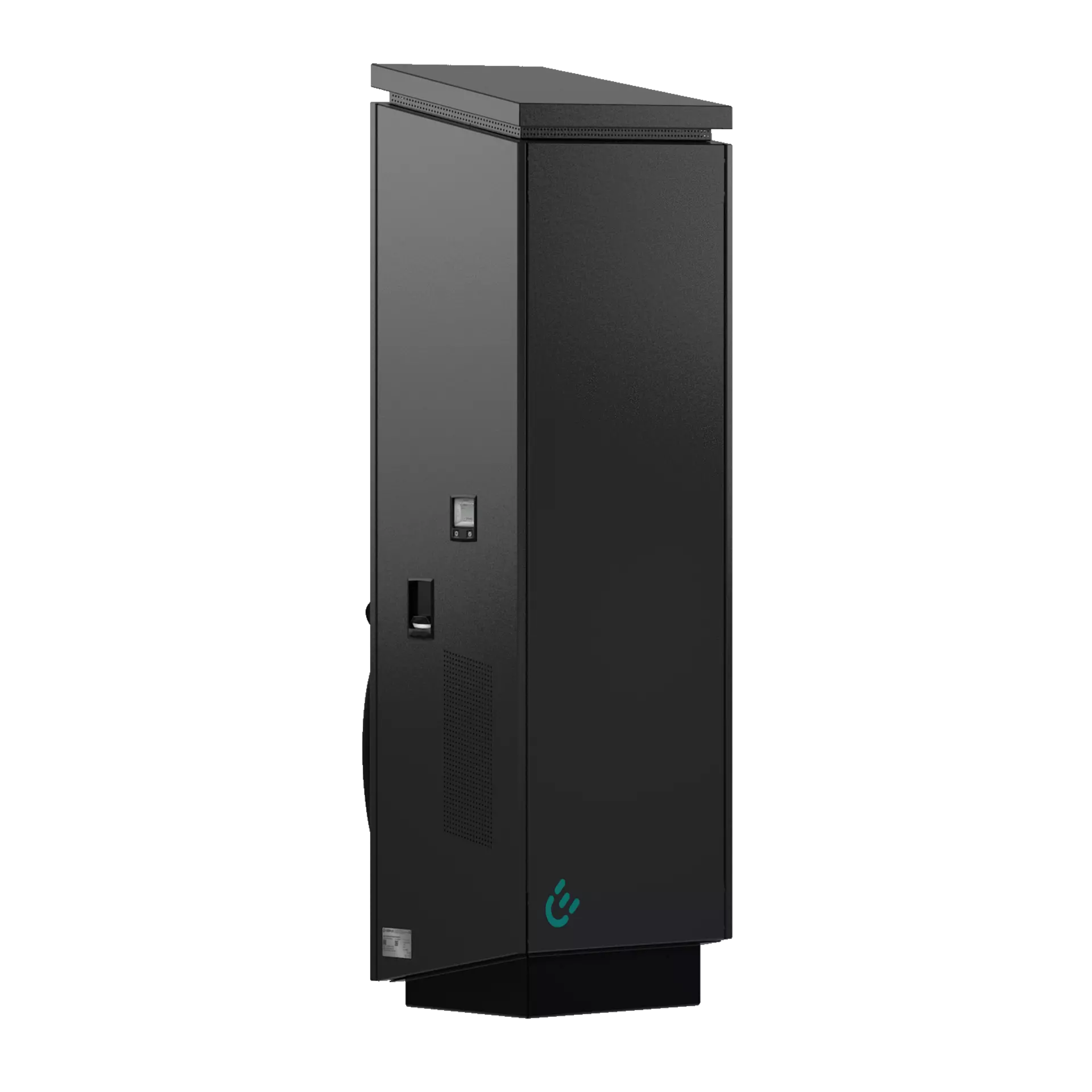

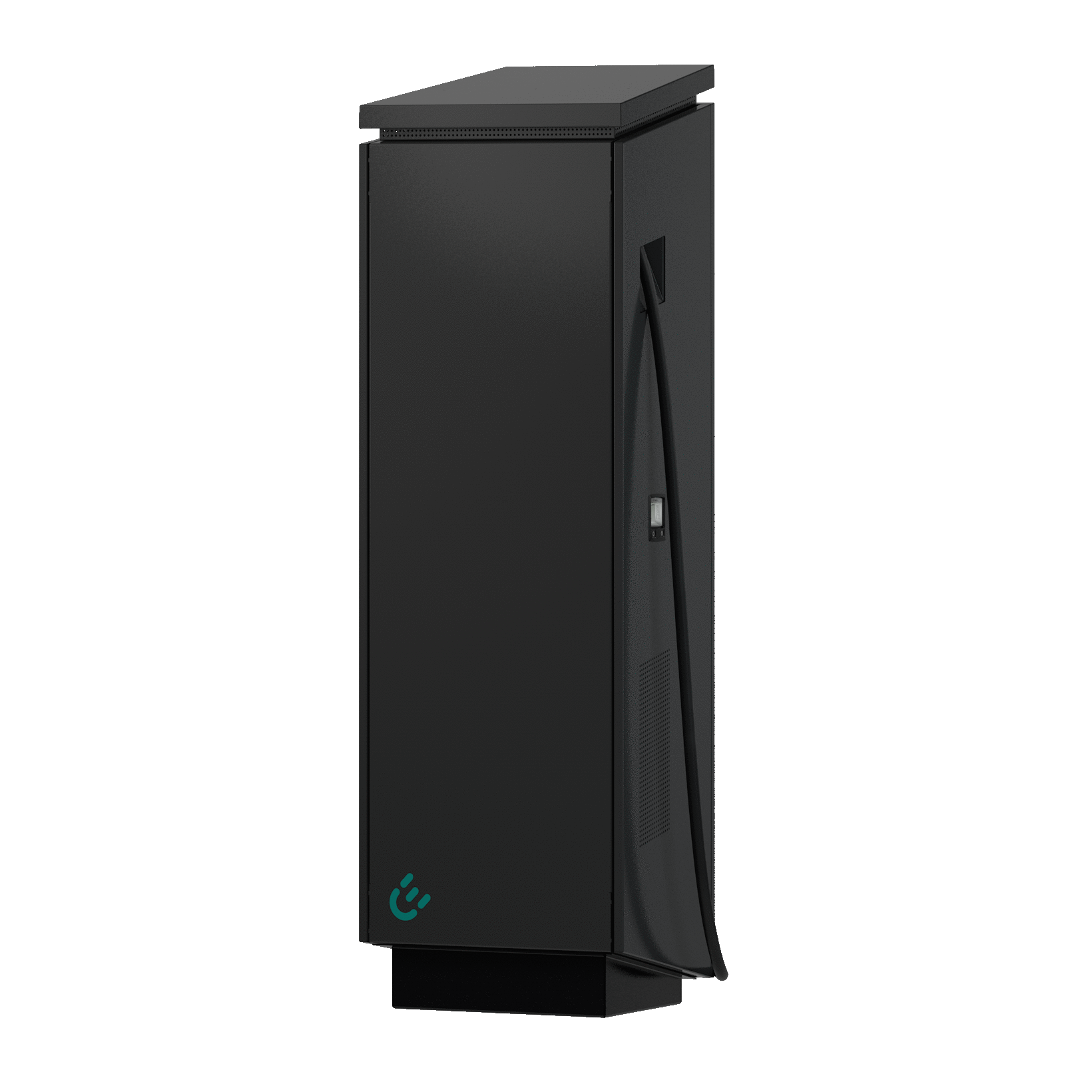

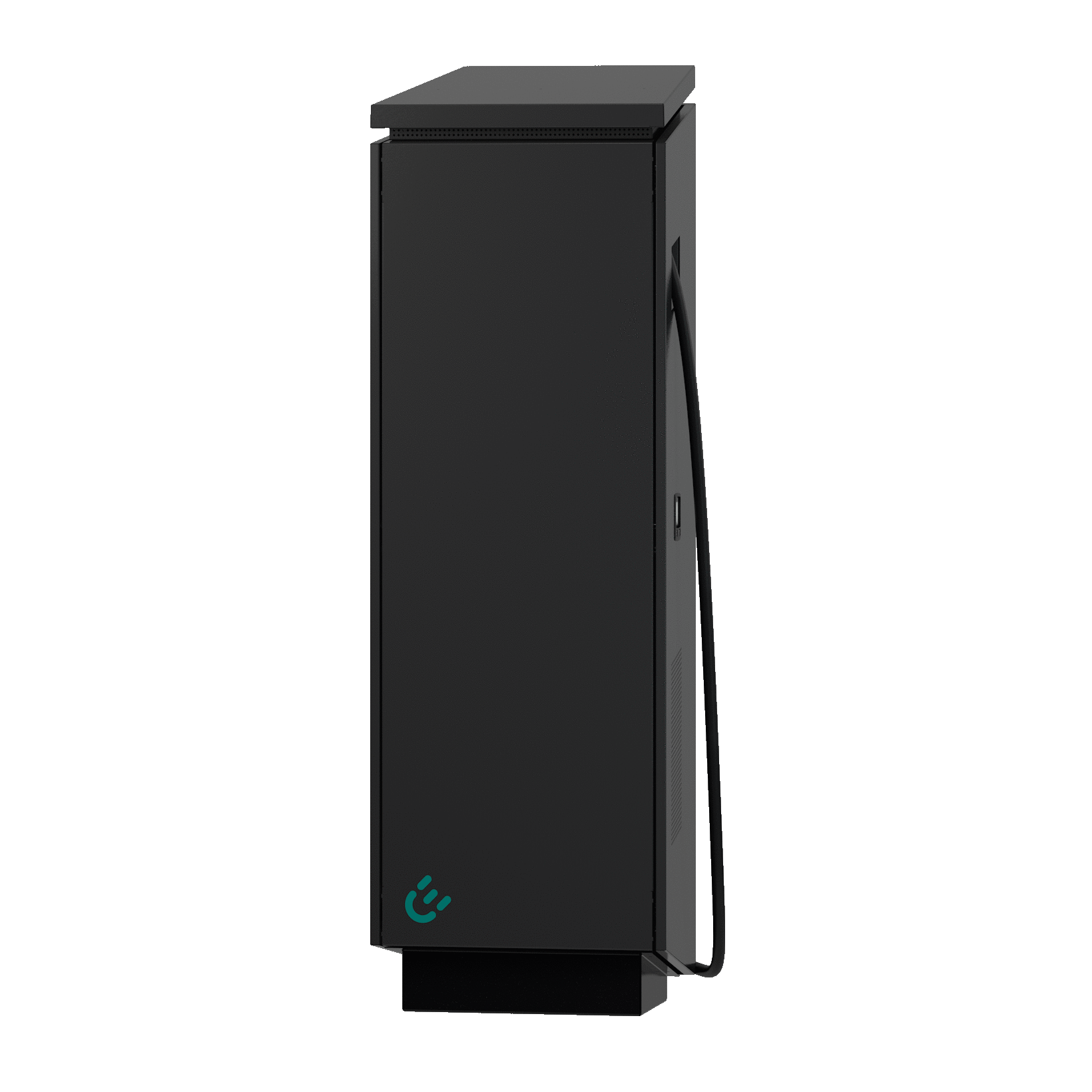

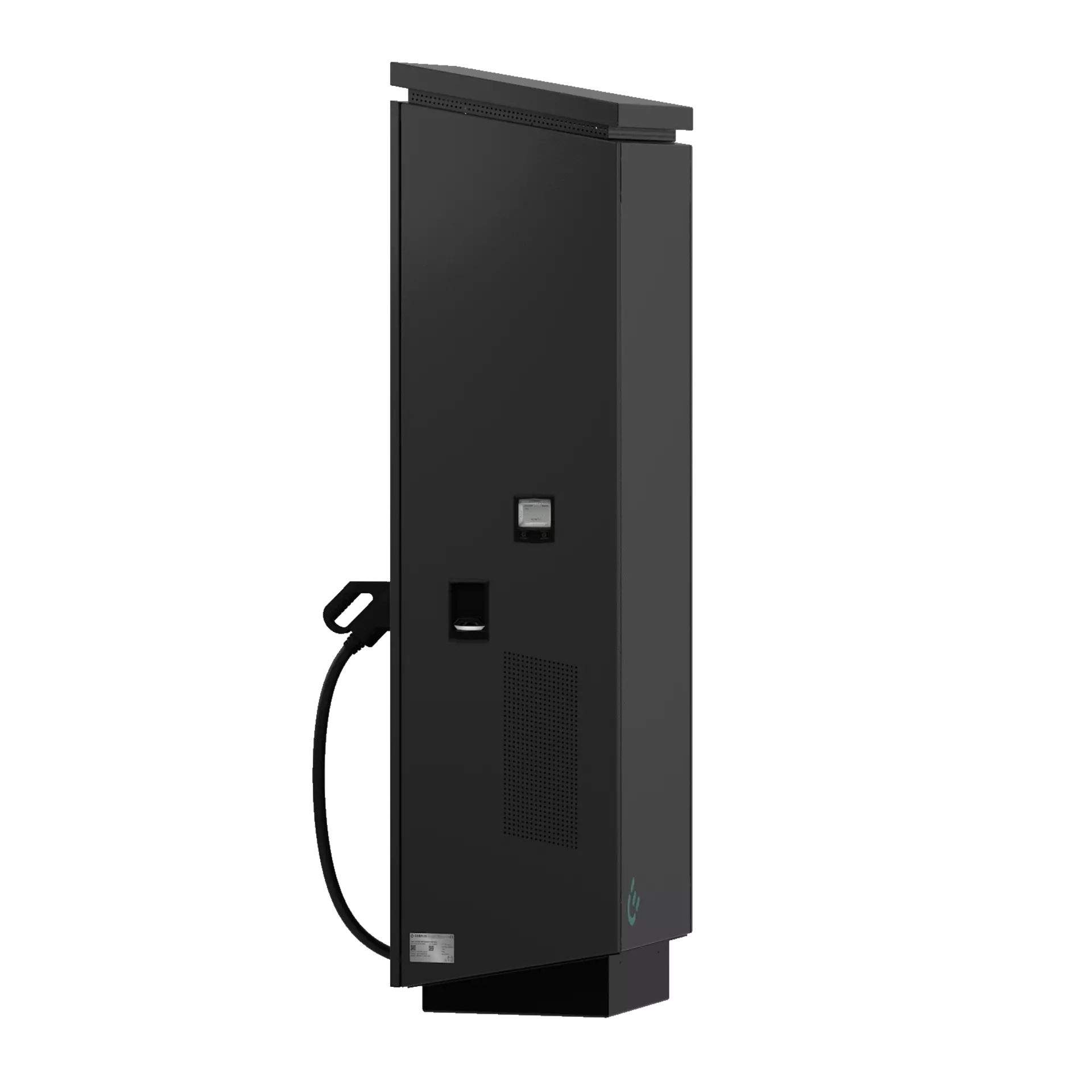

The CITO 500 makes it possible to offer rapid charging even at less powerful grid connections. In addition, the SAM module provides calibration law-compliant metering.
Lotta Fransén
Key Account Manager
Niclas Gustafsson
Key Account Manager
Johan Nordgaard
Key Account Manager

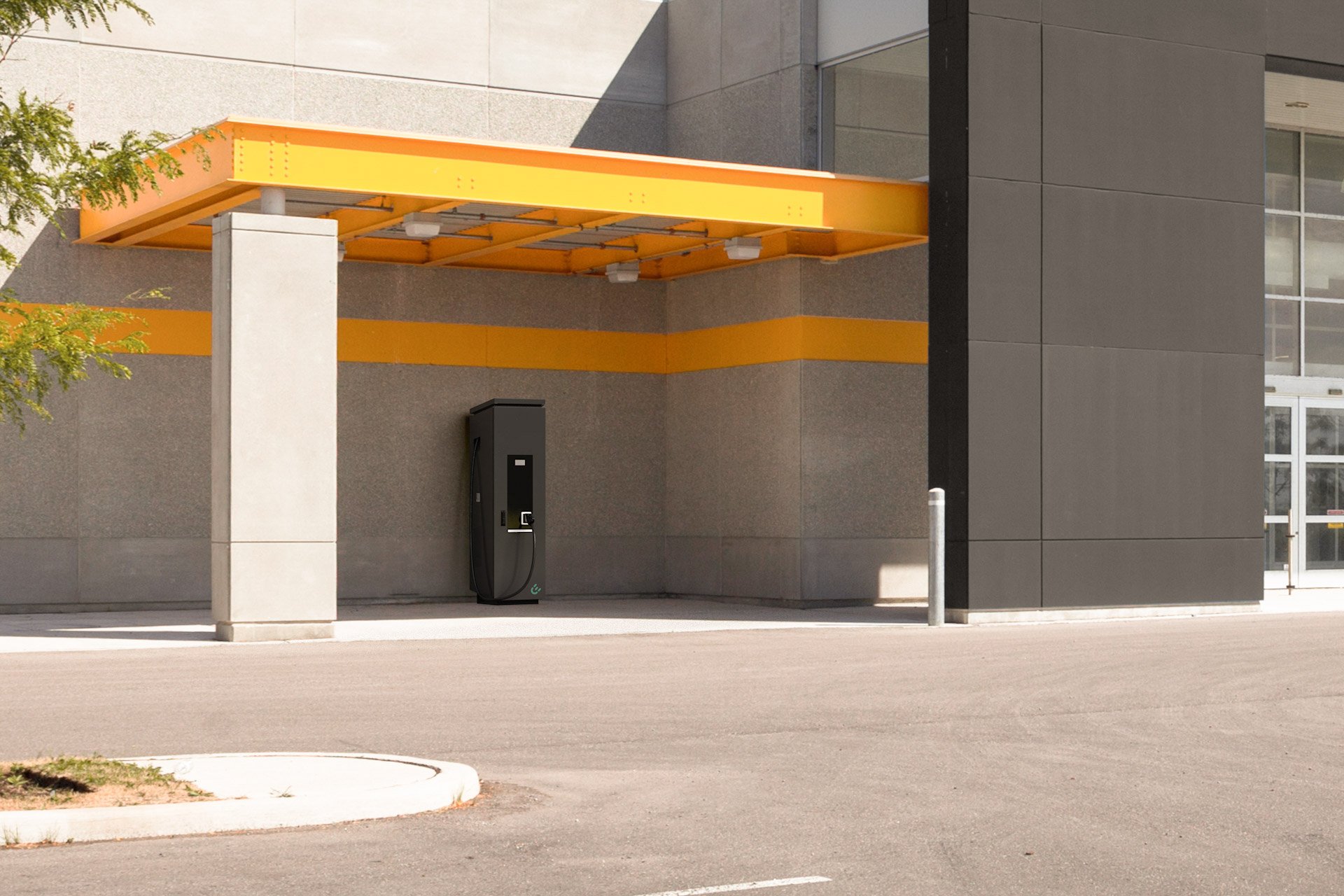

In addition to ultra-rapid charging, charging with 50 kW is becoming ever more relevant, be it in the supermarket car park or even at the car dealership. At less powerful grid connections in particular, vehicles can be charged with up to 50 kW DC, regardless of their AC charging capacity, which is usually limited to 11 kW.

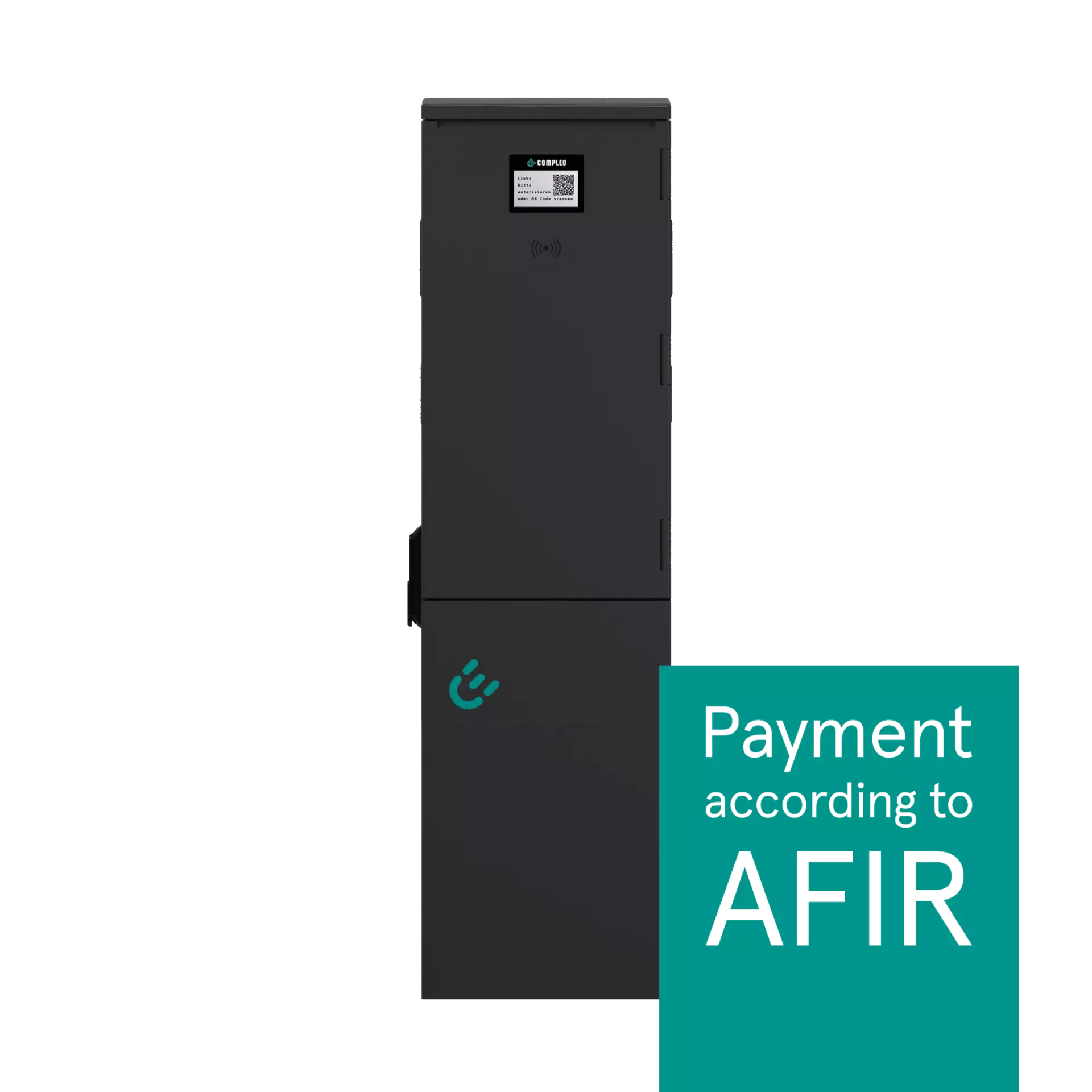

A robust and fully integrated payment solution is ideal, especially for public charging stations. That is why, in Germany, the CITO 500 is now optionally available with payment terminal and thus already complies with the future German charging station regulations. Ready for all payment methods.

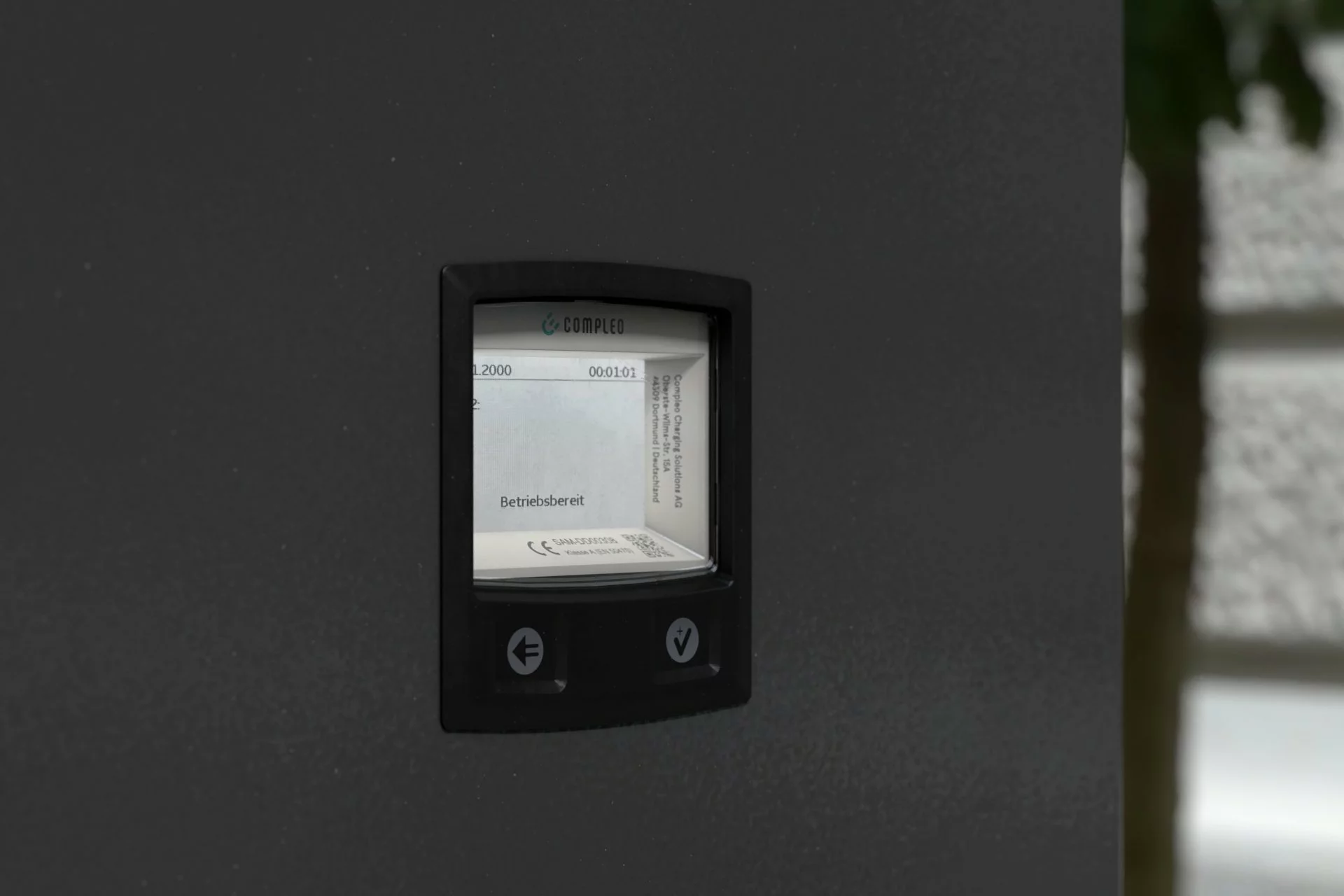

The CITO 500 can be controlled from any IT backend and provides calibration law-compliant metering via SAM module. SAM technology enables the user to monitor and check consumption without being connected to the IT backend.
| Provider | Controller P4 | Controller P5 | OCPP 1.6 |
| ACEA | x | - | Yes |
| Allego | x | - | Yes |
| Ampeco | x | - | Yes |
| be.energised | x | - | Yes |
| comfortcharge | x | - | Yes |
| Compleo Enterprise | x | - | Yes |
| Cubos | x | - | No |
| driivz | x | - | Yes |
| E.ON | x | - | Yes |
| eCarUp | x | - | Yes |
| Elaad | x | - | Yes |
| electromaps | x | - | Yes |
| Elli | x | - | Yes |
| eneco | x | - | Yes |
| Enio | x | - | Yes |
| eOperate | x | - | Yes |
| Everon | x | - | Yes |
| Ev-way | x | - | Yes |
| Freshmile | x | - | Yes |
| Greenflux | x | - | Yes |
| IO Dynamics | x | - | No |
| Ladenetz / Smartlab (Former Lisy) | x | - | Yes |
| m8mit | - | x | Yes |
| Monta | x | - | Yes |
| Robotron | x | - | No |
| Spirii | x | x | Yes |
| Stromnetz Hamburg/eRound | x | - | Yes |
| Swisscharge | x | - | Yes |
| TCC (GLS Mobility) | x | - | Yes |
| TheNewMotion | x | - | Yes |
| Vattenfall | x | - | Yes |
| Virta | x | - | Yes |
| Vlotte | x | - | Yes |

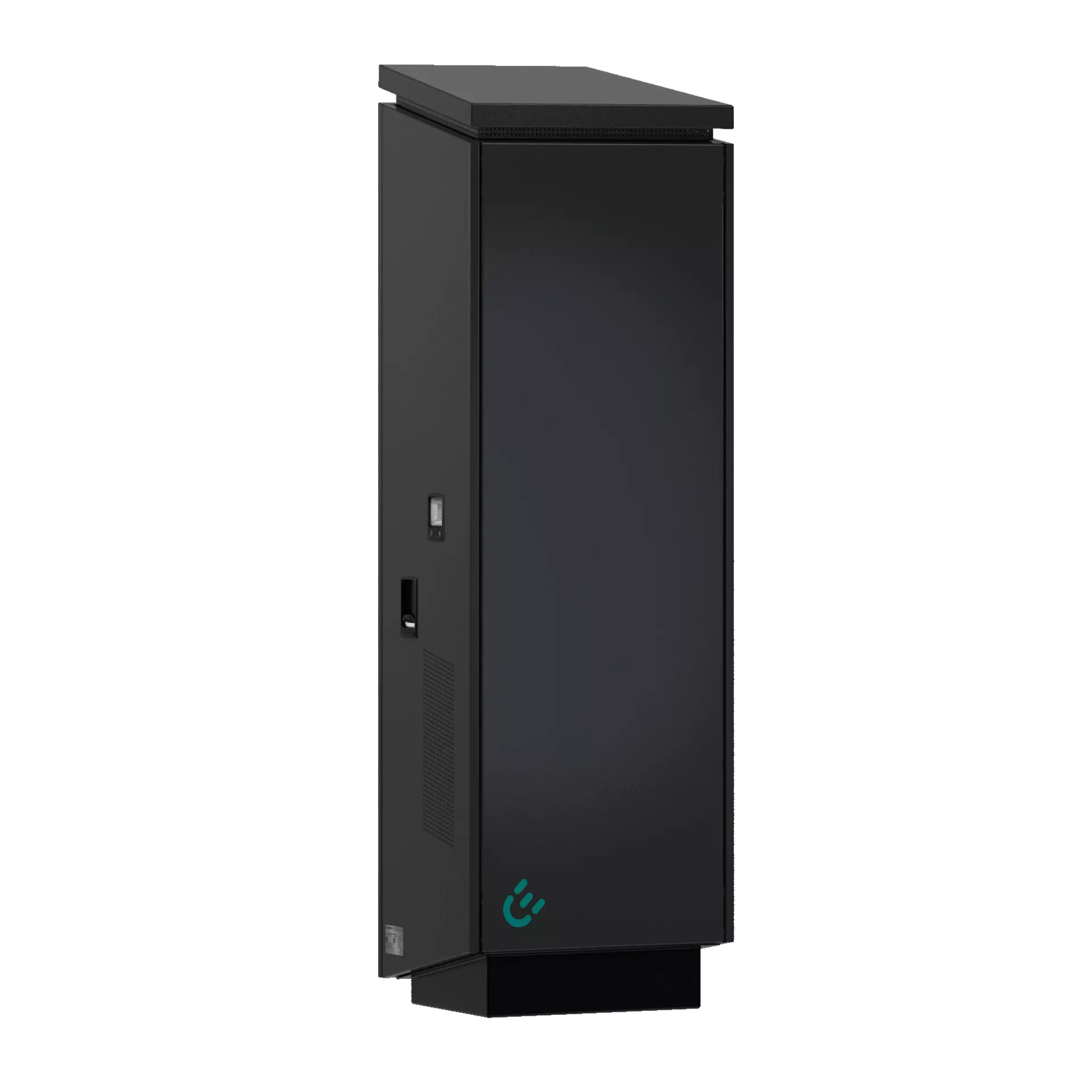

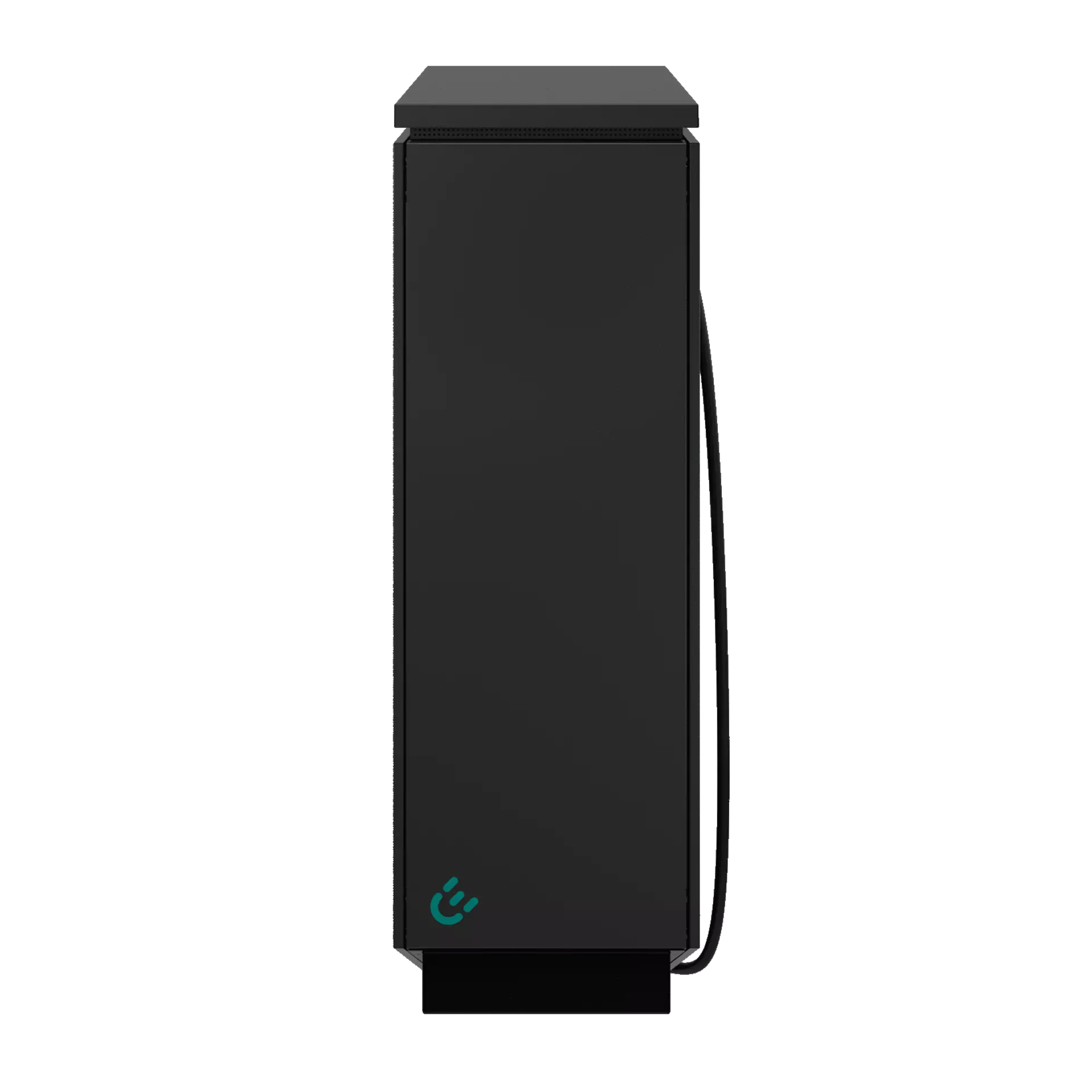

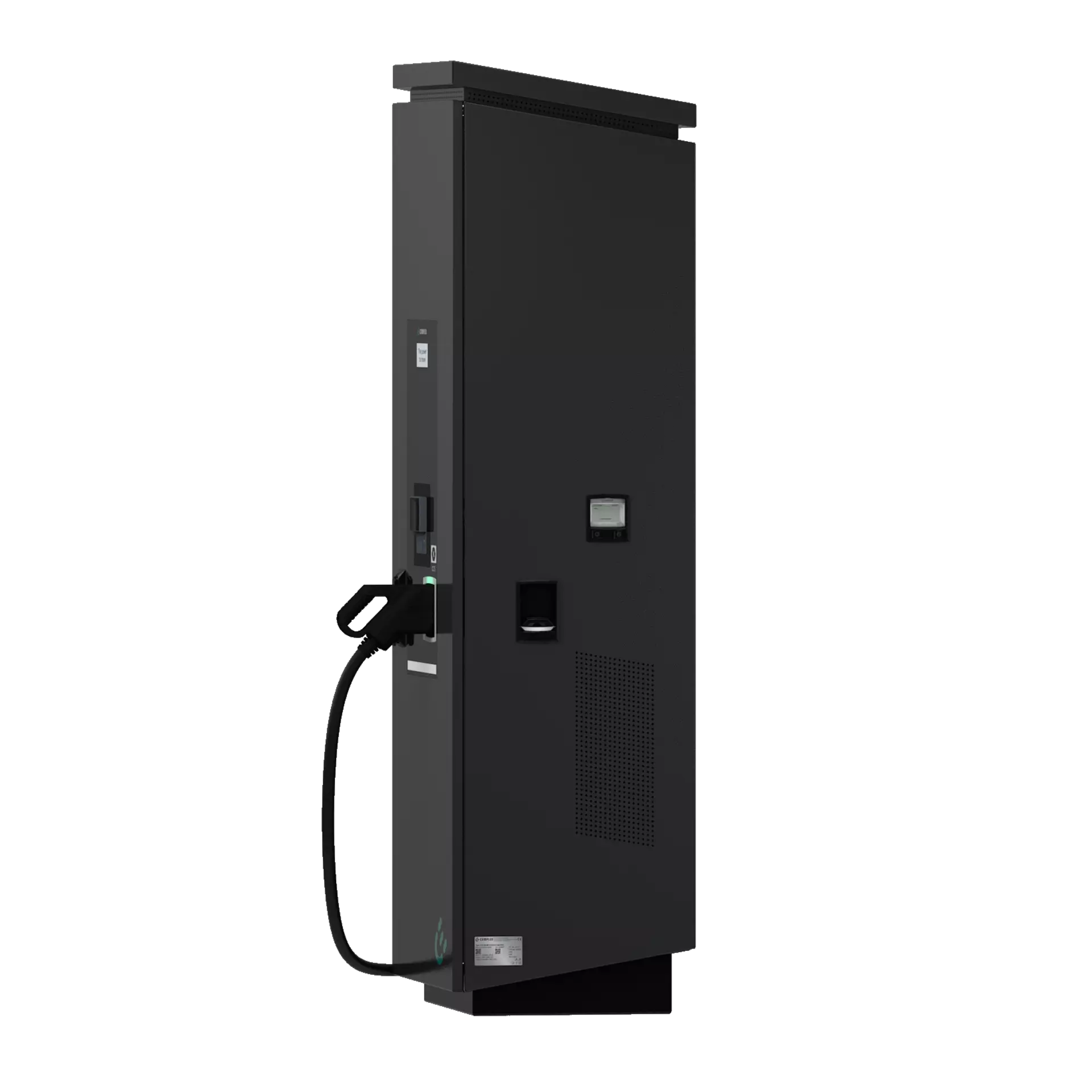

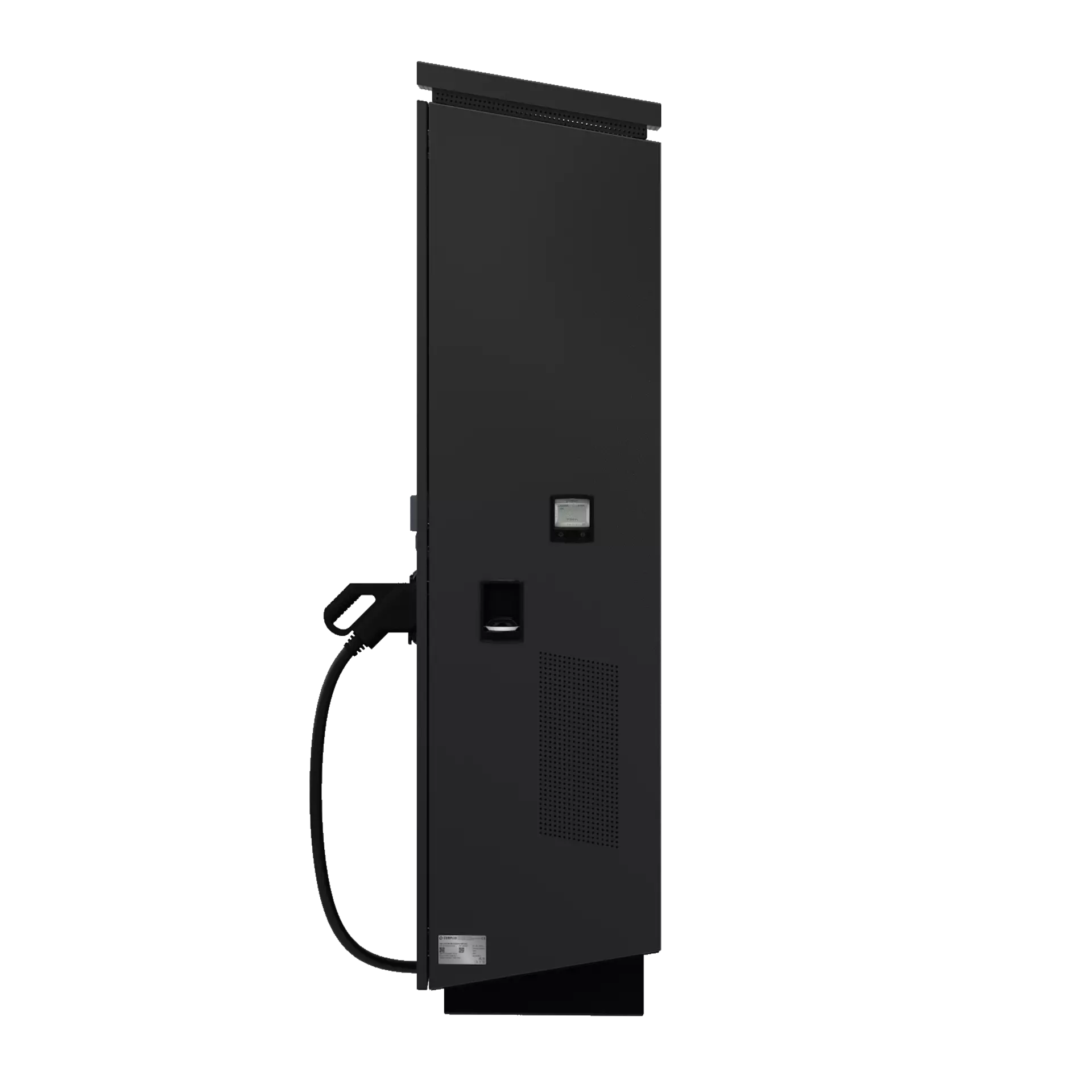

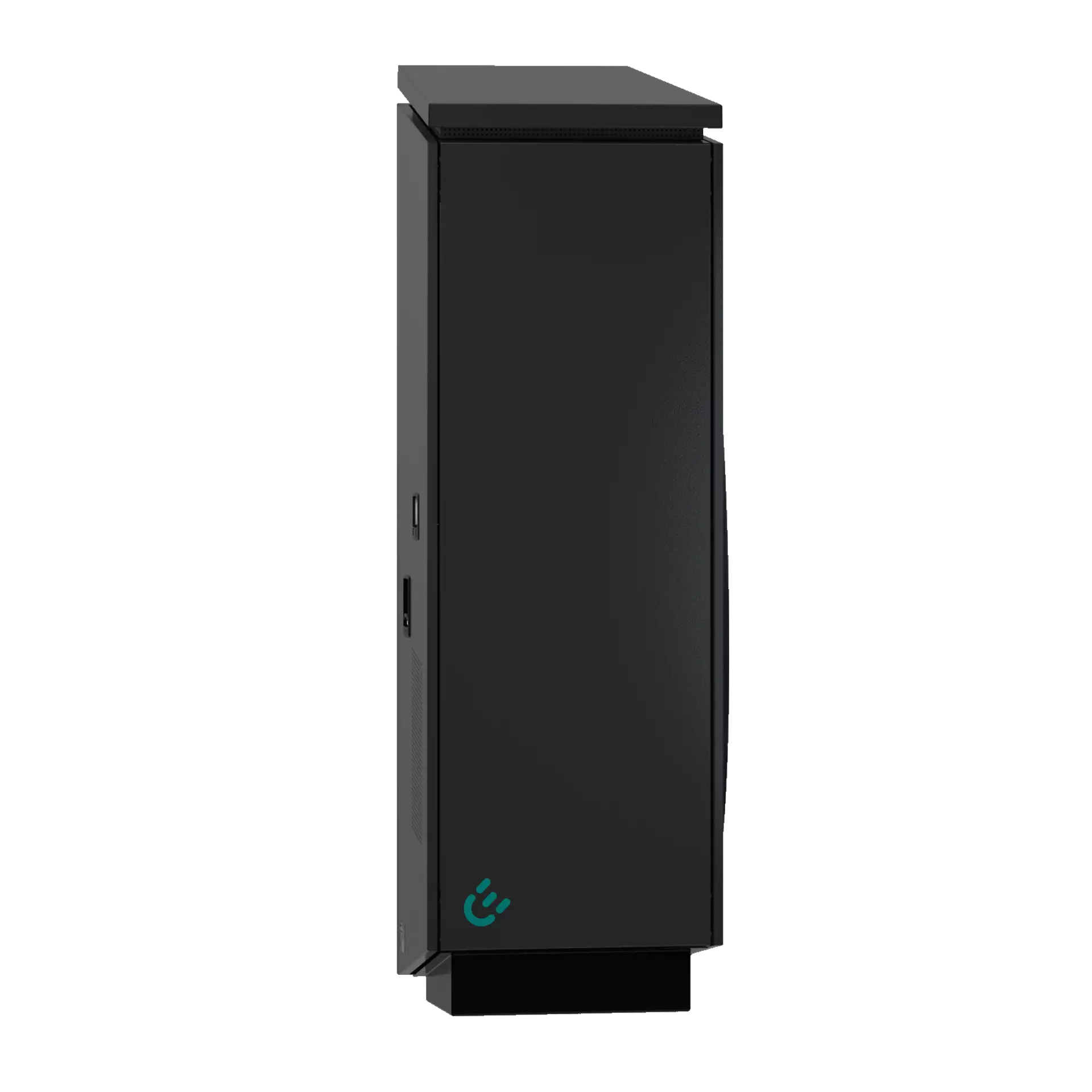

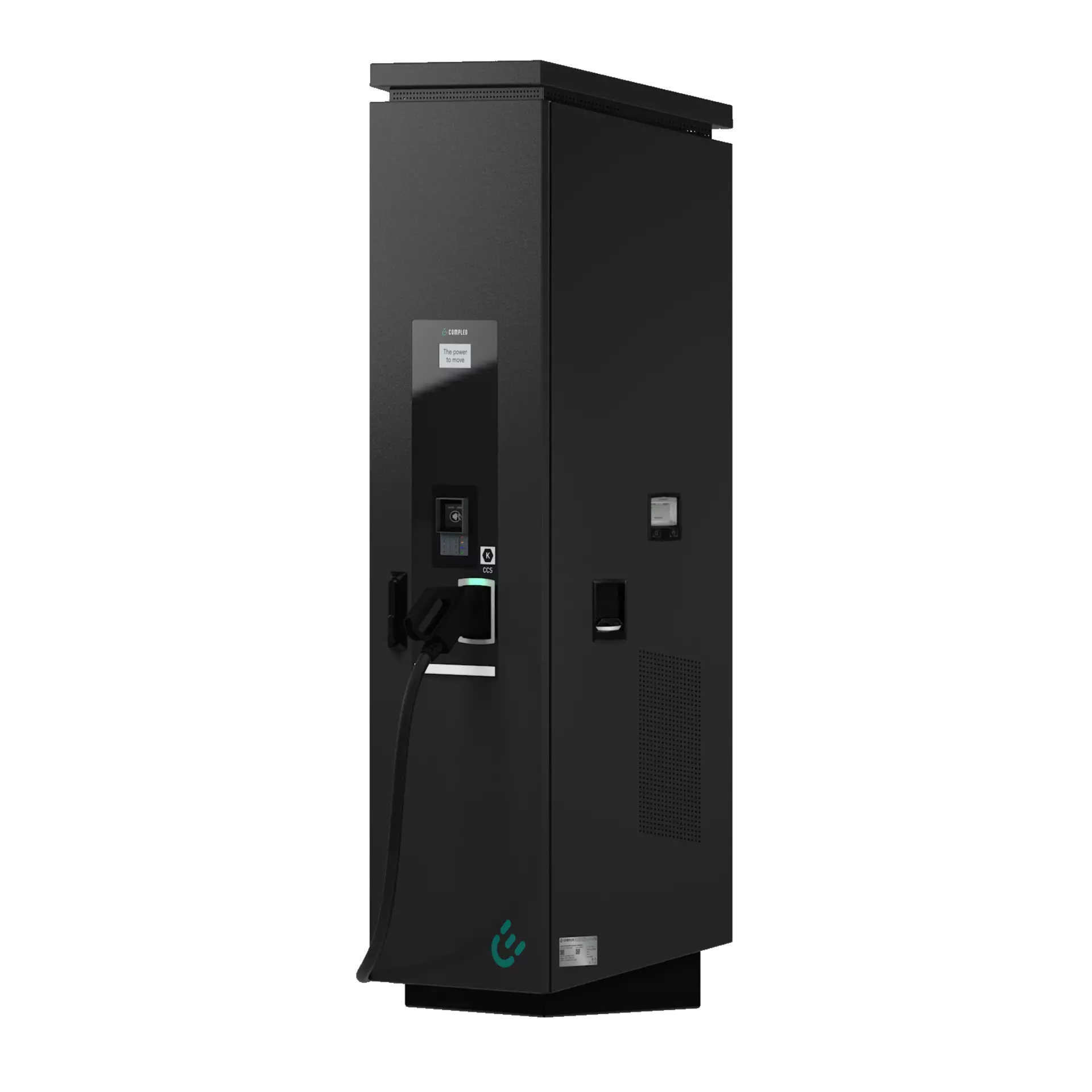

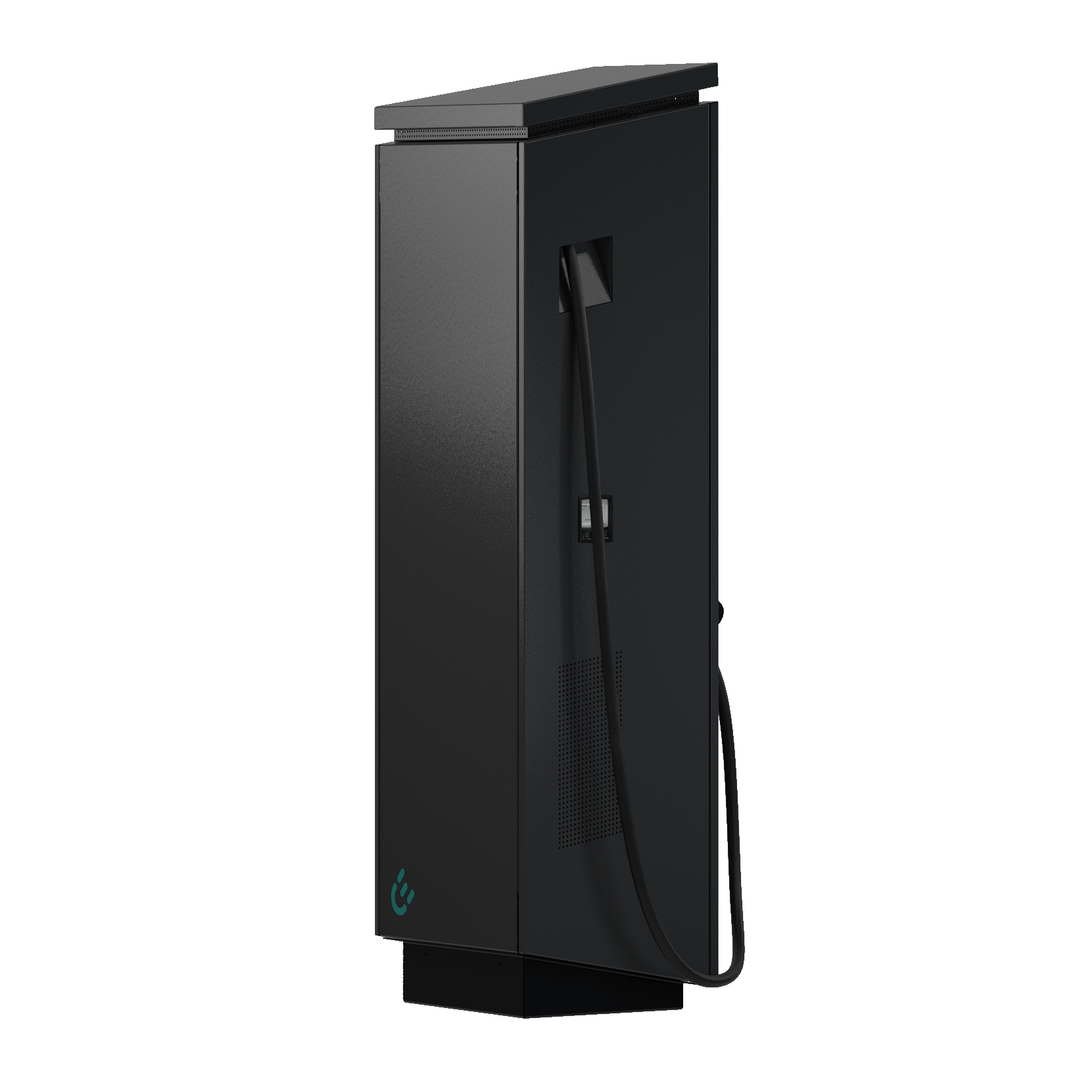

CITO 500
|
DUO
|
|
| Maximum charging power per charging point | AC: 22 kW; DC: 50 kW | 11/22 kW |
| Number of charging points | 2 | 2 |
| Charging connector | 1x type 2 socket, 1x CCS charging lead (3.4 m) | 2x type 2 socket, incl. sliding cover; optional 2x type 2 spiral lead (6.5 m) |
| Compliant with calibration law | AC: MID-compliant smart meter with SAM® storage and display module; DC: with SAM® storage and display module | 2x MID-compliant smart meter; optional with SAM® storage and display module |
| Protection | AC: RCD type A & DC residual current detection 6 mA; DC: LS C100 | 2x RCD type A; 2x DC residual current detection 6 mA; 2x circuit breaker C20 3P or C40 3P; 1x circuit breaker B16 1P |
| Communication interface to IT backends | OCPP 1.6 JSON | OCPP 1.6 JSON |
| Authorisation | Free charging, RFID, smartphone app, optional: Direct payment via debit or credit card, Giro-e ready | Free charging, RFID, smartphone app, Giro-e able |
With Compleo’s comprehensive documentation, planning to install the perfect charging system is easy. Put together your customised charging solution by simply selecting the charging station and accessories that best meet your needs.
